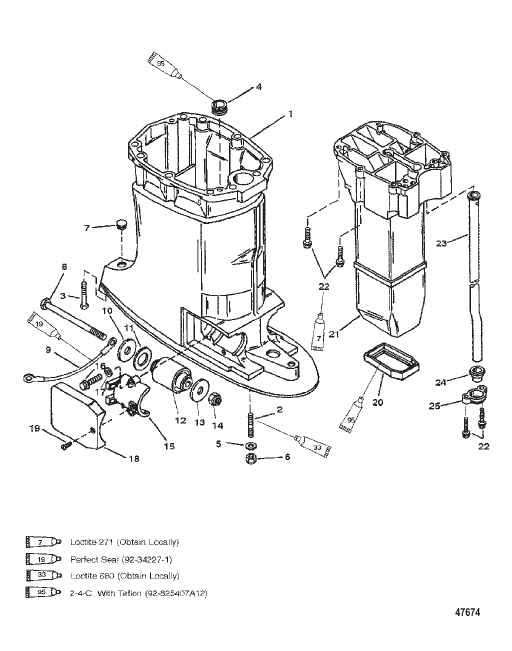

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
818452A1 |
HOUSING ASSEMBLY Driveshaft (BLACK-LONG)
|
1 |
disc.
|
| 1 |
818452A2 |
HOUSING ASSEMBLY Driveshaft (GRAY-LONG)
|
1 |
superseded
|
| 1 |
818453A1 |
HOUSING ASSEMBLY Driveshaft (BLACK-X-LONG)
|
1 |
disc.
|
| 1 |
818453A2 |
HOUSING ASSEMBLY Driveshaft (GRAY-X-LONG
|
1 |
superseded
|
| 10 |
815432 |
WASHER (.562 x 2.00 x .125)
|
2 |
|
| 11 |
815433 |
WASHER
|
2 |
superseded
|
| 12 |
8137711 |
MOUNT
|
2 |
|
| 13 |
825190 |
WASHER
|
1 |
|
| 14 |
815434 |
NUT
|
2 |
superseded
|
| 15 |
8186442 |
CLAMP
|
2 |
disc.
|
| 16 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
4 |
|
| 17 |
72521 |
LOCKWASHER Internal Tooth
|
1 |
|
| 18 |
818645F1 |
COVER Black (BLACK)
|
2 |
superseded
|
| 18 |
818645F2 |
COVER (GRAY)
|
2 |
disc.
|
| 19 |
69079 |
SCREW (#10-16 x .440) (5/8 IN.)
|
2 |
|
| 2 |
822257 |
STUD (M12 X 1.75 X 50)
|
4 |
superseded
|
| 20 |
816503 |
SEAL
|
1 |
disc.
|
| 21 |
8263841 |
TUBE Exhaust
|
1 |
superseded
|
| 22 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
6 |
|
| 23 |
8141964 |
TUBE Water (LONG)
|
1 |
disc.
|
| 23 |
8141965 |
TUBE Water (X-LONG)
|
1 |
disc.
|
| 24 |
814080 |
SEAL
|
1 |
superseded
|
| 25 |
814081 |
CLAMP
|
1 |
disc.
|
| 3 |
82130130 |
SCREW (M10 x 30) (M10 X 1.5 X 30)
|
1 |
|
| 4 |
89417 |
GROMMET
|
1 |
disc.
|
| 5 |
4002321 |
WASHER (12.80 mm x 24.0 mm x 2.4 mm) Stainless Steel
|
4 |
|
| 6 |
821280 |
NUT (M12 X 1.75)
|
4 |
superseded
|
| 7 |
64649 |
PLUG
|
1 |
|
| 8 |
815431 |
SCREW (M14 x 178) (M14 X 2 X 178)
|
2 |
superseded
|
| 9 |
88238A10 |
CABLE ASSEMBLY Ground
|
1 |
|
