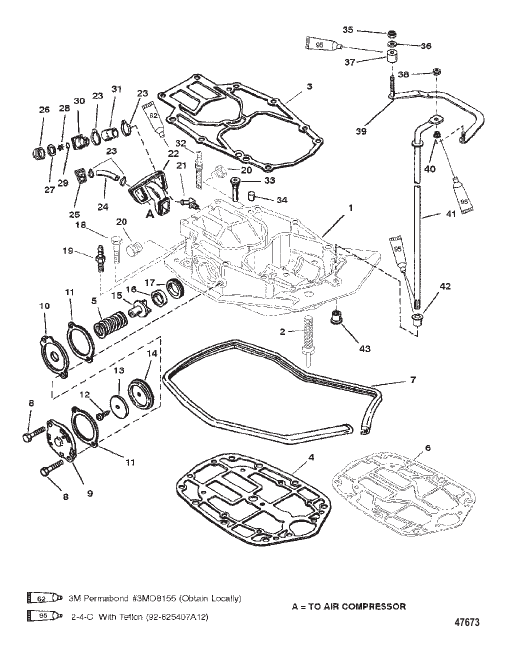

| # | Part Number | Description | Qty | Status |
|---|
| - |
814195A97 |
GASKET SET
|
1 |
disc.
|
| - |
809973A97 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |
818450A4 |
PLATE ASSEMBLY Exhaust [0G437999] & Below
|
1 |
disc.
|
| 1 |
832935A1 |
PLATE ASSEMBLY Exhaust [0G438000] & Up
|
1 |
|
| 10 |
65664A1 |
PLATE ASSEMBLY
|
1 |
|
| 11 |
88907 |
GASKET
|
2 |
superseded
|
| 12 |
69570 |
SCREW (#10-16 x .750)
|
1 |
|
| 13 |
76451 |
WASHER
|
1 |
|
| 14 |
64877 |
DIAPHRAGM
|
1 |
superseded
|
| 15 |
814189 |
POPPET
|
1 |
|
| 16 |
814191 |
GROMMET
|
1 |
|
| 17 |
814190 |
CARRIER
|
1 |
|
| 18 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
6 |
|
| 19 |
34982 |
CONNECTOR
|
3 |
|
| 2 |
832994 |
STRAINER [0G437999] & Below
|
2 |
disc.
|
| 20 |
36382 |
FITTING (.250-18 x .62) Brass
|
2 |
|
| 21 |
821975 |
ELBOW 45 Degree (455)
|
1 |
|
| 22 |
821255 |
BOOT Idle Exhaust
|
1 |
|
| 23 |
816311 |
TIE STRAP (8.00 Inches)
|
AR |
superseded
|
| 24 |
83476456 |
HOSE
|
1 |
superseded
|
| 25 |
821904 |
FITTING Tell-Tale TELL TALE
|
1 |
superseded
|
| 26 |
821908 |
PLUG
|
1 |
|
| 27 |
821915 |
WASHER
|
1 |
|
| 28 |
821963 |
CHECK VALVE
|
1 |
superseded
|
| 29 |
30641 |
O-RING (.299 x .103)
|
1 |
|
| 3 |
8139322 |
GASKET [0G437999] & Below
|
1 |
|
| 3 |
8329331 |
GASKET [0G438000] & Up
|
1 |
superseded
|
| 30 |
821952 |
FITTING
|
1 |
|
| 31 |
821976 |
HOSE
|
1 |
disc.
|
| 32 |
834808 |
STRAINER FUEL COOLER
|
1 |
superseded
|
| 33 |
817519A1 |
CHECK VALVE ASSEMBLY Drain
|
2 |
|
| 34 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
4 |
|
| 35 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 36 |
35459 |
WASHER
|
1 |
|
| 37 |
824012 |
ROLLER
|
1 |
|
| 38 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 39 |
8141935 |
SHIFT LINK
|
1 |
superseded
|
| 4 |
823988 |
GASKET (LOWER) [0G437999] & Below
|
1 |
|
| 40 |
42994 |
BUSHING
|
1 |
|
| 41 |
8240701 |
SHIFT SHAFT Upper (LONG)
|
1 |
superseded
|
| 41 |
8240702 |
SHIFT SHAFT Upper (X-LONG)
|
1 |
superseded
|
| 42 |
48237 |
BUSHING
|
1 |
|
| 43 |
43585 |
COUPLING
|
1 |
|
| 5 |
64878 |
SPRING (Black) [0G437999] & Below
|
1 |
|
| 5 |
851907 |
SPRING [0G438000] & Up
|
1 |
superseded
|
| 6 |
8329342 |
GASKET (LOWER) [0G438000] & Up
|
1 |
superseded
|
| 7 |
8238051 |
SEAL
|
1 |
superseded
|
| 8 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
2 |
|
| 9 |
656632 |
COVER
|
1 |
superseded
|
