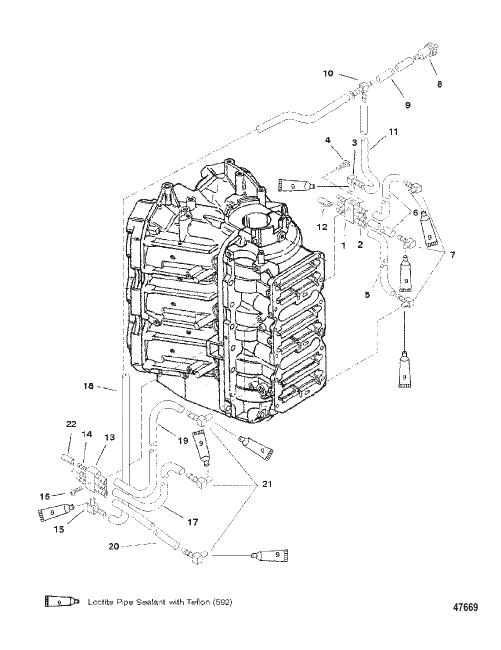

BLEED SYSTEM
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 827210A1 |
ВПУСКНОЙ КОЛЛЕКТОР Сливная система PORT MANIFOLD ASSEMBLY Bleed System PORT |
1 | discontinued |
| 10 | 827200 |
ФИТИНГ Тройник PORT FITTING Tee PORT |
1 | discontinued |
| 11 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (9-1/2 IN.) PORT TUBING (20.00 Feet Bulk) (9-1/2 IN.) PORT |
1 | superseded |
| 12 | 15026 |
ПРОБКА PORT CAP PORT |
3 | |
| 13 | 827210A1 |
ВПУСКНОЙ КОЛЛЕКТОР Сливная система STARBOARD MANIFOLD ASSEMBLY Bleed System STARBOARD |
1 | discontinued |
| 14 | 426231 |
ОБРАТНЫЙ КЛАПАН STARBOARD CHECK VALVE STARBOARD |
6 | superseded |
| 15 | 15133 |
ФИТИНГ STARBOARD FITTING STARBOARD |
1 | |
| 16 | 92051 |
ВИНТ (10-16 x 0.75) (10-16 X 3/4 IN.) STARBOARD SCREW (10-16 x .75) (10-16 X 3/4 IN.) STARBOARD |
1 | |
| 17 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (5-1/4 IN.) STARBOARD TUBING (20.00 Feet Bulk) (5-1/4 IN.) STARBOARD |
1 | superseded |
| 18 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (20-1/2 IN.) STARBOARD TUBING (20.00 Feet Bulk) (20-1/2 IN.) STARBOARD |
1 | superseded |
| 19 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (7 IN.) STARBOARD TUBING (20.00 Feet Bulk) (7 IN.) STARBOARD |
1 | superseded |
| 2 | 426231 |
ОБРАТНЫЙ КЛАПАН PORT CHECK VALVE PORT |
6 | superseded |
| 20 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (8-1/2 IN.) STARBOARD TUBING (20.00 Feet Bulk) (8-1/2 IN.) STARBOARD |
1 | superseded |
| 21 | 76843 |
ФИТИНГ (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) STARBOARD FITTING (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) STARBOARD |
3 | superseded |
| 22 | 15026 |
ПРОБКА STARBOARD CAP STARBOARD |
3 | |
| 3 | 15133 |
ФИТИНГ PORT FITTING PORT |
1 | |
| 4 | 92051 |
ВИНТ (10-16 x 0.75) (10-16 X 3/4 IN.) PORT SCREW (10-16 x .75) (10-16 X 3/4 IN.) PORT |
1 | |
| 5 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (9 IN.) PORT TUBING (20.00 Feet Bulk) (9 IN.) PORT |
1 | superseded |
| 6 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (5-1/4 IN.) PORT TUBING (20.00 Feet Bulk) (5-1/4 IN.) PORT |
2 | superseded |
| 7 | 76843 |
ФИТИНГ (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) PORT FITTING (SHOWN AS REF. 10 ON "CYLIDER BLOCK AND END CAP" ) PORT |
3 | superseded |
| 8 | 18206 |
ФИЛЬТР PORT FILTER PORT |
1 | superseded |
| 9 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (2-3/4 IN.) PORT TUBING (36.00 Inches Bulk) (2-3/4 IN.) PORT |
1 |
