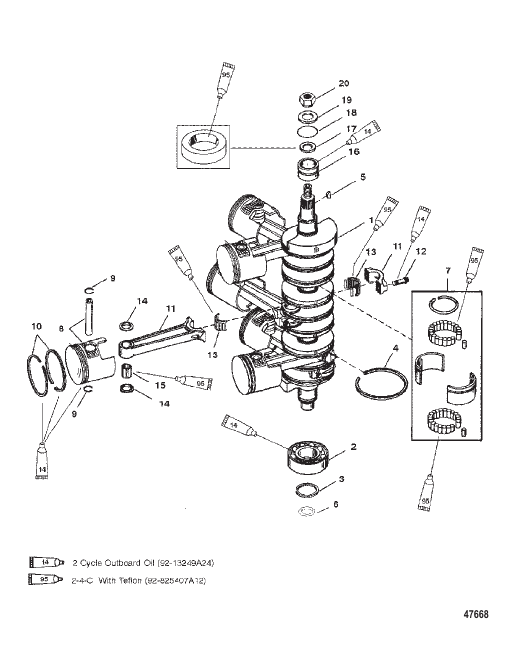

| # | Part Number | Description | Qty | Status |
|---|
| - |
814195A97 |
GASKET SET
|
1 |
disc.
|
| - |
809973A97 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |
9784A8 |
CRANKSHAFT
|
1 |
superseded
|
| 10 |
834805A12 |
RING SET Piston
|
1 |
|
| 11 |
822373A3 |
CONNECTING ROD ASSEMBLY
|
6 |
superseded
|
| 12 |
94320 |
SCREW (.375-24 x 1.250) (1-1/4 IN.)
|
12 |
|
| 13 |
43012A1 |
BEARING/CAGE KIT
|
6 |
superseded
|
| 14 |
88263 |
THRUST WASHER
|
12 |
|
| 15 |
88258 |
NEEDLE Roller Bearing
|
204 |
superseded
|
| 16 |
816773A2 |
BEARING ASSEMBLY (UPPER)
|
1 |
|
| 17 |
815449 |
SEAL Oil
|
1 |
superseded
|
| 18 |
823683 |
O-RING (1.989 x .070)
|
1 |
|
| 19 |
68229 |
WASHER (.641 x 1.250 x .190)
|
1 |
superseded
|
| 2 |
67923 |
BEARING Ball (LOWER)
|
1 |
superseded
|
| 20 |
42979 |
NUT (M16) (M16 X 1.5)
|
1 |
|
| 3 |
67446 |
RING
|
1 |
|
| 4 |
816106 |
RING
|
7 |
superseded
|
| 5 |
91800 |
KEY Woodruff
|
1 |
|
| 6 |
35126 |
O-RING (.859 x .139)
|
1 |
|
| 7 |
817001A1 |
RACE ASSEMBLY Bearing
|
2 |
disc.
|
| 8 |
827902A4 |
PISTON ASSEMBLY (STARBOARD)
|
3 |
superseded
|
| 8 |
827901A4 |
PISTON ASSEMBLY (PORT)
|
3 |
superseded
|
| 9 |
832081 |
LOCK RING
|
12 |
superseded
|
