| # | Part Number | Description | Qty | Status |
|---|
| 1 |
828127A2 |

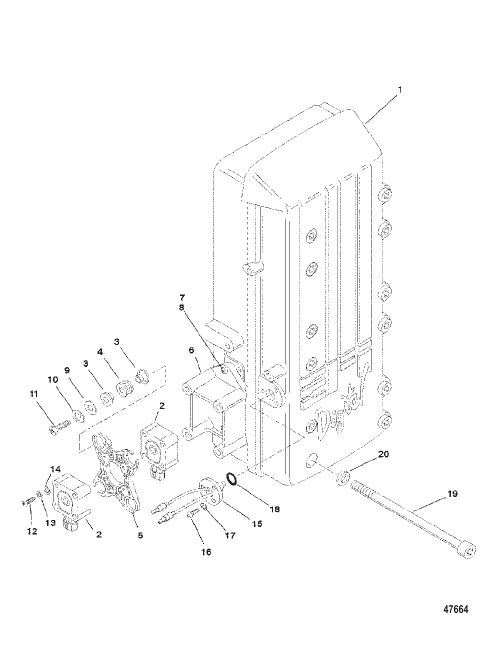

AIR MANAGEMENT
|
1 |
disc.
|
| 10 |
400256 |
LOCKWASHER (M6)
|
4 |
|
| 11 |
40104 |
SCREW (M6 x 25) (M6 X 25)
|
4 |
disc.
|
| 12 |
40056110 |
SCREW (M5 x 30) (M5 X 30)
|
4 |
|
| 13 |
89302 |
WASHER (.203 x .406 x .040)
|
4 |
|
| 14 |
400255 |
LOCKWASHER (M5)
|
4 |
|
| 15 |
13221A1 |
SENSOR ASSEMBLY Temperature
|
1 |
superseded
|
| 16 |
4005685 |
SCREW (M4 x 10) (M4 X 10)
|
3 |
|
| 17 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
3 |
|
| 18 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 19 |
40132 |
SCREW (M8 x 125)
|
12 |
|
| 2 |
832952 |
INDICATOR Throttle Position
|
2 |
disc.
|
| 20 |
70132 |
WASHER (.323 x .563 x .063) Stainless Steel
|
12 |
superseded
|
| 3 |
8318701 |
BUSHING
|
8 |
|
| 4 |
834985 |
GROMMET
|
4 |
superseded
|
| 5 |
852085 |
PLATE
|
1 |
disc.
|
| 6 |
852086 |
HOUSING
|
1 |
disc.
|
| 7 |
40056107 |
SCREW (M5 x 16)
|
2 |
|
| 8 |
400255 |
LOCKWASHER (M5)
|
2 |
|
| 9 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
4 |
superseded
|
