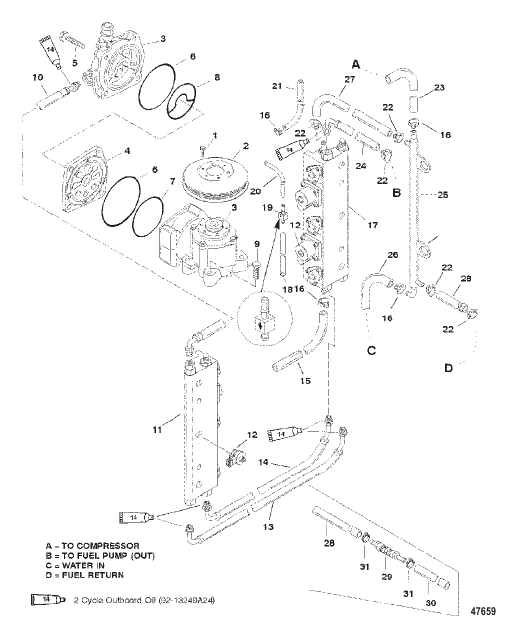

FUEL RAILS
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 835083 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | superseded |
| 1 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
3 | |
| 10 | 830018A1 |
РУКАВ HOSE |
1 | discontinued |
| 11 | 828126A2 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ В СБОРЕ (STARBOARD) (INCLUDES TRACKER VALVE) FUEL RAIL ASSEMBLY (STARBOARD) (INCLUDES TRACKER VALVE) |
1 | superseded |
| 12 | 828812 |
ФОРСУНКА (DIRECT) INJECTOR (DIRECT) |
6 | superseded |
| 13 | 830020 |
РУКАВ HOSE |
1 | discontinued |
| 14 | 831859 |
РУКАВ HOSE |
1 | discontinued |
| 15 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") (8 IN.) TUBING (30.00 Inches Bulk) (8 IN.) |
1 | superseded |
| 16 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 17 | 828125A2 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ В СБОРЕ (PORT)(INCLUDES REGULATORS) FUEL RAIL ASSEMBLY (PORT)(INCLUDES REGULATORS) |
1 | superseded |
| 18 | 830756109 |
РУКАВ (Общая длина 57.00") (11 IN.) HOSE (57.00 Inches Bulk) (11 IN.) |
1 | superseded |
| 19 | 826810 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 2 | 828223 |
ШКИВ PULLEY |
1 | discontinued |
| 20 | 83075780 |
ТРУБОПРОВОД (Общая длина 28.00") (2-1/2 IN.) TUBING (28.00 Inches Bulk) (2-1/2 IN.) |
1 | superseded |
| 21 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (8 IN.) TUBING (36.00 Inches Bulk) (8 IN.) |
1 | |
| 22 | 850241 |
ЗАЖИМ CLAMP |
AR | |
| 23 | 834757 |
РУКАВ HOSE |
1 | discontinued |
| 24 | 830019 |
РУКАВ HOSE |
1 | discontinued |
| 25 | 833126 |
ОХЛАДИТЕЛЬ Топливо COOLER Fuel |
1 | discontinued |
| 26 | 833159 |
РУКАВ HOSE |
1 | discontinued |
| 27 | 833160 |
РУКАВ (MOLDED) MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW HOSE (MOLDED) MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW |
1 | discontinued |
| 27 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") (8 IN.) CHECK VALVE DESIGN TUBING (30.00 Inches Bulk) (8 IN.) CHECK VALVE DESIGN |
1 | superseded |
| 28 | 83476456 |
РУКАВ (MOLDED) MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW HOSE (MOLDED) MOLDED HOSES HAVE BEEN REPLACED WITH CHECK VALVE DESIGN LISTED BELOW |
1 | superseded |
| 28 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") (19 IN.) CHECK VALVE DESIGN TUBING (30.00 Inches Bulk) (19 IN.) CHECK VALVE DESIGN |
1 | superseded |
| 29 | 851974A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE DESIGN CHECK VALVE CHECK VALVE DESIGN |
1 | discontinued |
| 3 | 828123A5 |
КОМПРЕССОР В СБОРЕ Воздух COMPRESSOR ASSEMBLY Air |
1 | discontinued |
| 30 | 1350382 |
ТРУБОПРОВОД (Общая длина 30.00") (8 IN.) CHECK VALVE DESIGN TUBING (30.00 Inches Bulk) (8 IN.) CHECK VALVE DESIGN |
1 | superseded |
| 31 | 13791 |
ЗАЖИМ (15.7) CHECK VALVE DESIGN CLAMP (15.7) CHECK VALVE DESIGN |
2 | superseded |
| 4 | 828293A3 |
КОМПЛЕКТ ВИБРИРУЮЩЕЙ ПЛАСТИНЫ REED PLATE KIT |
1 | discontinued |
| 5 | 81893435 |
ВИНТ (M8 x 35) (M8 X 35) SCREW (M8 x 35) (M8 X 35) |
4 | |
| 6 | 67207 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.489 x 0.070) O-RING (3.489 x .070) |
2 | |
| 7 | 832804 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.739 x 0.070) O-RING (2.739 x .070) |
1 | |
| 8 | 828225 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 9 | 81893450 |
ВИНТ (M8 x 50) SCREW (M8 x 50) |
4 |
