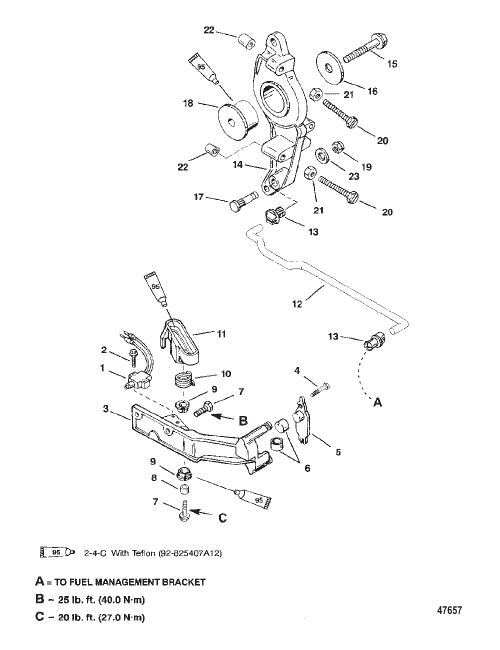

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
814281A2 |
SWITCH
|
1 |
superseded
|
| 10 |
824014 |
SPRING
|
1 |
disc.
|
| 11 |
8240111 |
GUIDE Roller
|
1 |
disc.
|
| 12 |
834978 |
LINK Throttle
|
1 |
disc.
|
| 13 |
932481 |
BUSHING
|
2 |
superseded
|
| 14 |
8252681 |
LEVER Throttle Control
|
1 |
superseded
|
| 15 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
1 |
|
| 16 |
36042 |
WASHER
|
1 |
|
| 17 |
42927 |
INSERT
|
1 |
|
| 18 |
821113 |
BUSHING
|
1 |
|
| 19 |
8268336 |
NUT (M6)
|
1 |
superseded
|
| 2 |
82470620 |
SCREW (M3.5 x 20) (M3.5 X 20)
|
2 |
|
| 20 |
850156 |
SCREW (M6 X 70)
|
2 |
disc.
|
| 21 |
400212 |
NUT (M6) Stainless Steel
|
2 |
|
| 22 |
42942 |
CAP
|
2 |
|
| 23 |
35459 |
WASHER
|
1 |
|
| 3 |
8240101 |
BRACKET Anchor
|
1 |
superseded
|
| 4 |
42975 |
DRIVE SCREW
|
2 |
|
| 5 |
824016 |
LATCH
|
1 |
|
| 6 |
824015 |
CUP Barrel Retainer
|
2 |
|
| 7 |
82155025 |
SCREW (M8 x 25 MM) Stainless Steel (M8 X 25)
|
3 |
|
| 8 |
824013 |
BUSHING
|
1 |
|
| 9 |
812707 |
BUSHING
|
2 |
|
