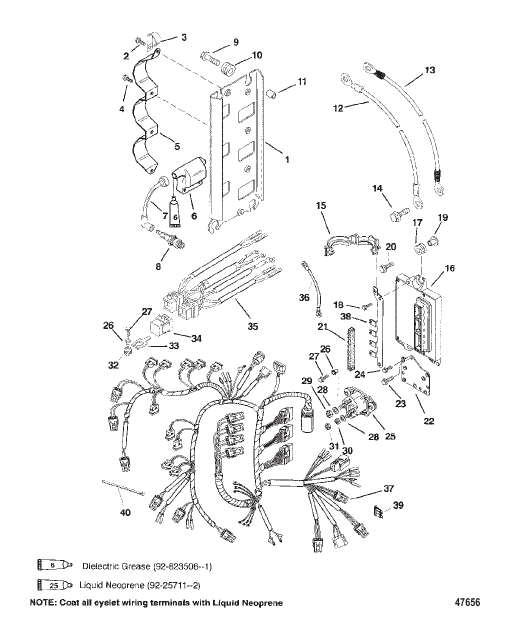

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8300151 |
PLATE Electrical Mounting
|
1 |
disc.
|
| 10 |
830752 |
GROMMET
|
4 |
disc.
|
| 11 |
830040 |
BUSHING
|
4 |
disc.
|
| 12 |
88439A25 |
CABLE ASSEMBLY Battery - Positive (POSITIVE)
|
1 |
|
| 13 |
88439A26 |
CABLE ASSEMBLY Battery - Negative (NEGATIVE)
|
1 |
|
| 14 |
81893412 |
SCREW (M8 x 12) (M8 X 12)
|
1 |
|
| 15 |
833136 |
CLIP
|
1 |
disc.
|
| 16 |
8502701 |
ECU Engine Control Unit [0G437999] & Below
|
1 |
superseded
|
| 16 |
8502706 |
ECU Engine Control Unit [0G438000] & Up
|
1 |
superseded
|
| 17 |
834985 |
GROMMET
|
3 |
superseded
|
| 18 |
82129114 |
SCREW (M6 x 14) (M6 X 14)
|
2 |
|
| 19 |
8318701 |
BUSHING
|
6 |
|
| 2 |
82129114 |
SCREW (M6 x 14) (M6 X 14)
|
1 |
|
| 20 |
82130025 |
SCREW (M6 x 25) (M6 X 25)
|
3 |
|
| 21 |
830897 |
PAD
|
1 |
|
| 22 |
833137 |
SOLENOID MOUNTING PLATE
|
1 |
superseded
|
| 23 |
82130012 |
SCREW (M6 x 12) (M6 X 12)
|
3 |
|
| 24 |
82129114 |
SCREW (M6 x 14) (M6 X 14)
|
2 |
|
| 25 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 26 |
818968 |
BUSHING
|
5 |
superseded
|
| 27 |
82129125 |
SCREW (M6 x 25 MM) (M6 X 25)
|
5 |
|
| 28 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 29 |
68292 |
NUT (.312-18) (5/16-18)
|
2 |
superseded
|
| 3 |
65292 |
J CLIP
|
1 |
superseded
|
| 30 |
45076 |
NUT (#10-32) Brass (10-32)
|
2 |
|
| 31 |
813938 |
CAP NUT (#10-32)
|
1 |
|
| 32 |
818967 |
GROMMET
|
3 |
|
| 33 |
828102 |
BRACKET
|
3 |
superseded
|
| 34 |
828151 |
RELAY
|
3 |
superseded
|
| 35 |
819514A14 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 36 |
93388A7 |
CABLE ASSEMBLY (BLACK)
|
1 |
superseded
|
| 37 |
828562A4 |
HARNESS ASSEMBLY Engine
|
1 |
disc.
|
| 38 |
8289471 |
BRACKET Fuse Holder
|
1 |
disc.
|
| 39 |
812619 |
FUSE Yellow - 20 Ampere
|
4 |
|
| 4 |
82129110 |
SCREW (M6 x 10) (M6 X 10)
|
7 |
|
| 40 |
61990 |
TIE STRAP (14.00 Inches)
|
1 |
|
| 5 |
831254 |
STRAP
|
2 |
disc.
|
| 6 |
828559 |
COIL Ignition
|
6 |
superseded
|
| 7 |
821945A63 |
CABLE ASSEMBLY Hi Tension
|
1 |
|
| 8 |
918 |
SPARK PLUG
|
6 |
disc.
|
| 9 |
81893435 |
SCREW (M8 x 35) (M8 X 35)
|
4 |
|
