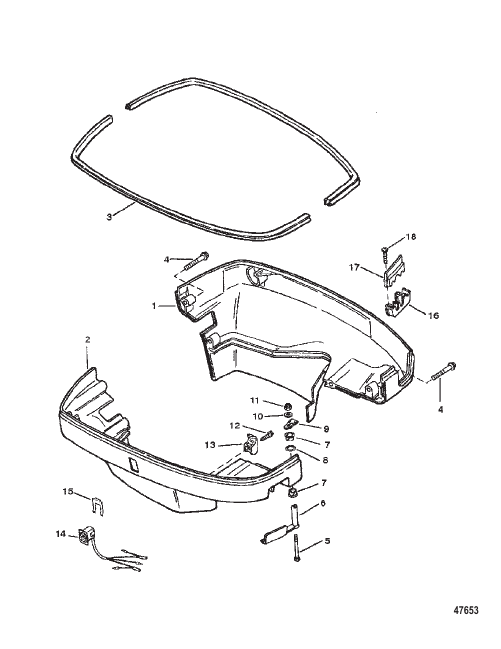

BOTTOM COWL
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 818448A1 |
НИЖНИЙ КОЖУХ (BLACK-PORT) BOTTOM COWL (BLACK-PORT) |
1 | discontinued |
| 1 | 818448A2 |
НИЖНИЙ КОЖУХ (GRAY-PORT) BOTTOM COWL (GRAY-PORT) |
1 | discontinued |
| 1 | 818448A4 |
НИЖНИЙ КОЖУХ (WHITE-PORT) BOTTOM COWL (WHITE-PORT) |
1 | discontinued |
| 10 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) WASHER (.281 x .734 x .063) |
1 | |
| 11 | 401196 |
ГАЙКА (M6) NUT (M6) |
1 | |
| 12 | 8214281 |
ВИНТ (№10-16 x 0.625) (10-16 X .625) SCREW (#10-16 x .625) (10-16 X .625) |
1 | |
| 13 | 822873 |
ЗАЖИМ CLIP |
1 | |
| 14 | 18286A40 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMBLY |
1 | superseded |
| 15 | 8124431 |
ФИКСАТОР RETAINER |
1 | superseded |
| 16 | 822024 |
ЗАЖИМ (LOWER) CLAMP (LOWER) |
1 | |
| 17 | 822023 |
ЗАЖИМ (UPPER) CLAMP (UPPER) |
1 | |
| 18 | 92799 |
ВИНТ (№10-16 x 1.12) (10-16 X 1.12) SCREW (#10-16 x 1.12) (10-16 X 1.12) |
2 | |
| 2 | 818447A1 |
НИЖНИЙ КОЖУХ (BLACK-STBD.) BOTTOM COWL (BLACK-STBD.) |
1 | discontinued |
| 2 | 818447A2 |
НИЖНИЙ КОЖУХ (GRAY-STBD.) BOTTOM COWL (GRAY-STBD.) |
1 | discontinued |
| 2 | 818447A4 |
НИЖНИЙ КОЖУХ (WHITE-STBD.) BOTTOM COWL (WHITE-STBD.) |
1 | discontinued |
| 3 | 8253181 |
УПЛОТНЕНИЕ Кожух (41.00") SEAL Cowl (41.00 Inches) |
2 | superseded |
| 4 | 82130040 |
ВИНТ (M6 x 40) (M6 X 1.0) SCREW (M6 x 40) (M6 X 1.0) |
4 | |
| 5 | 824868 |
ВИНТ (M6 x 75) (M6 X 1 X 75) SCREW (M6 x 75) (M6 X 1 X 75) |
1 | |
| 6 | 821253F1 |
ПЕРЕДНЯЯ РУКОЯТКА Черный (BLACK) FRONT HANDLE Black (BLACK) |
1 | superseded |
| 6 | 821253F2 |
ПЕРЕДНЯЯ РУКОЯТКА (GRAY) FRONT HANDLE (GRAY) |
1 | superseded |
| 6 | 821253F4 |
ПЕРЕДНЯЯ РУКОЯТКА (WHITE) FRONT HANDLE (WHITE) |
1 | superseded |
| 7 | 335891 |
ВТУЛКА BUSHING |
2 | |
| 8 | 48462 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.614 x 0.070) O-RING (.614 x .070) |
1 | |
| 9 | 8219423 |
СТОПОР PAWL |
1 |
