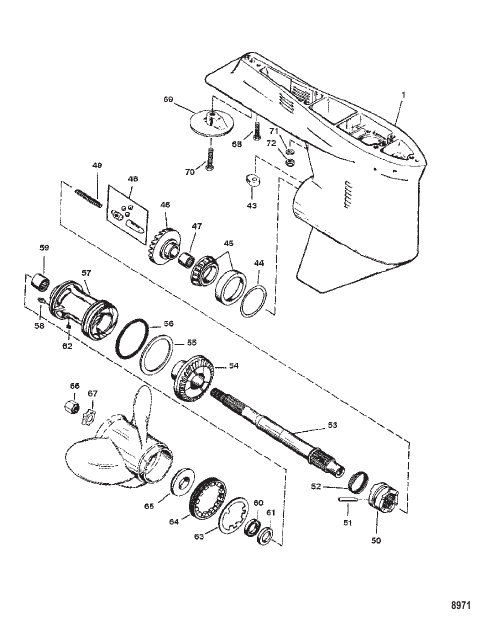

| # | Part Number | Description | Qty | Status |
|---|
| - |
814247T3 |
GEAR HOUSING ASSEMBLY Complete BLACK
|
1 |
disc.
|
| - |
814247T4 |
GEAR HOUSING ASSEMBLY Complete GRAY
|
1 |
disc.
|
| - |
89238A2 |
SEAL KIT
|
1 |
|
| 1 |
814247T1 |
GEAR HOUSING ASSEMBLY Basic-Black
|
1 |
disc.
|
| 1 |
814247A2 |
GEAR HOUSING ASSEMBLY Basic - Gray
|
1 |
superseded
|
| 43 |
76039 |
CAM Shift Control
|
1 |
superseded
|
| 44 |
44491A1 |
SHIM SET
|
AR |
disc.
|
| 45 |
30894A1 |
BEARING SET Cup And Cone
|
1 |
|
| 46 |
16279A2 |
GEAR ASSEMBLY Forward
|
1 |
disc.
|
| 47 |
30895 |
BEARING Needle
|
1 |
superseded
|
| 48 |
12239A1 |
FOLLOWER KIT Cam
|
1 |
superseded
|
| 49 |
30622 |
SPRING
|
1 |
|
| 50 |
822539 |
CLUTCH
|
1 |
superseded
|
| 51 |
30632 |
PIN Cross
|
1 |
superseded
|
| 52 |
30893 |
SPRING
|
1 |
|
| 53 |
12238T |
PROPELLER SHAFT
|
1 |
|
| 54 |
NSS |
NOT SOLD SEPARATE Reverse Gear-Part of 43-16279A2
|
1 |
|
| 55 |
76358 |
THRUST WASHER
|
1 |
disc.
|
| 56 |
29976 |
O-RING
|
1 |
|
| 57 |
41529A2 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 58 |
98727 |
FITTING Grease
|
2 |
superseded
|
| 59 |
30956 |
BEARING Needle
|
1 |
superseded
|
| 60 |
76868 |
SEAL OUTSIDE
|
1 |
superseded
|
| 61 |
14077 |
SEAL Oil INSIDE
|
1 |
|
| 62 |
30281 |
KEY
|
1 |
|
| 63 |
52700 |
TAB WASHER
|
1 |
|
| 64 |
52699 |
COVER
|
1 |
disc.
|
| 65 |
13191A1 |
THRUST WASHER
|
1 |
superseded
|
| 66 |
52707A1 |
PROP NUT KIT (.750-16)
|
1 |
superseded
|
| 67 |
816629 |
TAB WASHER
|
1 |
superseded
|
| 68 |
30206 |
SCREW (.375-16 x 1.00) Stainless Steel
|
1 |
|
| 69 |
316404 |
TRIM TAB
|
1 |
superseded
|
| 70 |
806327 |
SCREW (.437-14 x 1.750)
|
1 |
superseded
|
| 71 |
822836 |
WASHER (.445 x .805 x .108)
|
2 |
|
| 72 |
134391 |
NUT (.4375-20)
|
2 |
superseded
|
