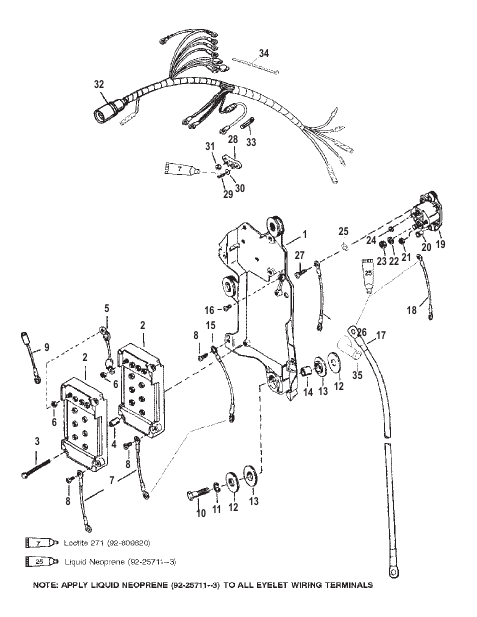

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
434292 |
IGNITION PLATE
|
1 |
disc.
|
| 10 |
60411 |
SCREW (.312-18 x 1.250)
|
3 |
|
| 11 |
26993 |
LOCKWASHER (.312)
|
3 |
superseded
|
| 12 |
36042 |
WASHER
|
6 |
|
| 13 |
67264 |
WASHER (Rubber)
|
6 |
|
| 14 |
67268 |
BUSHING
|
3 |
disc.
|
| 15 |
65999A3 |
CABLE ASSEMBLY Black
|
1 |
disc.
|
| 16 |
87926 |
SCREW (#10-32 x .500)
|
1 |
disc.
|
| 17 |
88439A23 |
CABLE ASSEMBLY Positive - Battery
|
1 |
superseded
|
| 17 |
88439A24 |
CABLE ASSEMBLY Negative - Battery
|
1 |
|
| 18 |
93388A7 |
CABLE ASSEMBLY
|
1 |
superseded
|
| 19 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 2 |
7778A12 |
SWITCHBOX ASSEMBLY
|
2 |
|
| 20 |
818968 |
BUSHING
|
2 |
superseded
|
| 21 |
45076 |
NUT (#10-32) Brass
|
4 |
|
| 22 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 23 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 24 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 25 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
2 |
|
| 26 |
65999A2 |
CABLE ASSEMBLY Black
|
1 |
disc.
|
| 27 |
455611 |
SCREW (.250-20 x 1.120)
|
2 |
|
| 28 |
194372 |
TERMINAL BLOCK
|
1 |
disc.
|
| 29 |
38055 |
SCREW (.190-32 x .620)
|
2 |
disc.
|
| 3 |
13669 |
SCREW (#12-24 x 2.00)
|
2 |
disc.
|
| 30 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 31 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 32 |
826730A4 |
HARNESS ASSEMBLY Engine Wiring
|
1 |
|
| 33 |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| 34 |
816311 |
TIE STRAP (8.00 Inches)
|
AR |
superseded
|
| 35 |
830233 |
BOOT Insulator - Red
|
1 |
|
| 4 |
94453 |
BUSHING
|
2 |
disc.
|
| 5 |
62310A2 |
CABLE ASSEMBLY
|
1 |
|
| 6 |
45076 |
NUT (#10-32) Brass
|
20 |
|
| 7 |
60871A10 |
WIRE ASSEMBLY
|
2 |
|
| 8 |
817626 |
SCREW (#10-16 x .380)
|
3 |
superseded
|
| 9 |
91865A1 |
CABLE ASSEMBLY (3 IN. - WHITE/BLACK)
|
1 |
disc.
|
| 9 |
88528A2 |
CABLE ASSEMBLY (6 IN. - RED/WHITE)
|
1 |
disc.
|
