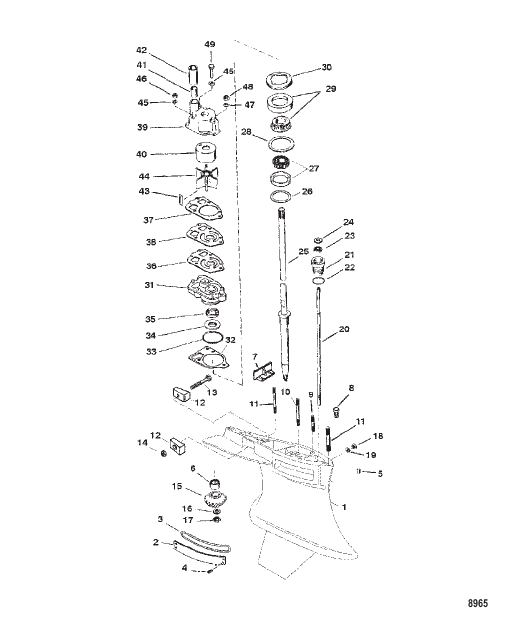

Gear Housing (Drive) Standard/Counter Rotation-SportMaster
Parts (64)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 89238A3 |
КОМПЛЕКТ УПЛОТНЕНИЙ Картер редуктора SEAL KIT Gear Housing |
1 | |
| - | 823142A94 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 90415A24 |
КОМПЛЕКТ ШПИЛЕК (Long) STUD KIT (Long) |
1 | discontinued |
| - | 90415A25 |
КОМПЛЕКТ ШПИЛЕК (X-Long) STUD KIT (X-Long) |
1 | discontinued |
| 1 | 848450A25 |
КАРТЕР РЕДУКТОРА В СБОРЕ Основной (With Torque Tab) GEAR HOUSING ASSEMBLY Basic (With Torque Tab) |
1 | superseded |
| 1 | 848474A39 |
КАРТЕР РЕДУКТОРА В СБОРЕ Базовый – без гидростабилизатора (Without Torque Tab) GEAR HOUSING ASSEMBLY Basic-Without Torque Tab (Without Torque Tab) |
1 | superseded |
| 10 | 69501 |
ШПИЛЬКА (5/16 X 3-1/4 IN.) STUD (5/16 X 3-1/4 IN.) |
1 | |
| 11 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) (Short/Long) STUD (.437-14/.437-20 x 2.812) (Short/Long) |
3 | |
| 11 | 78638 |
ШПИЛЬКА (0.438 x 3.12) (7/16 X 3-1/8 IN.) (Long) STUD (.438 x 3.12) (7/16 X 3-1/8 IN.) (Long) |
1 | superseded |
| 11 | 579201 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.060) (Long) STUD (.437-14/.437-20 x 2.060) (Long) |
2 | superseded |
| 11 | 74730 |
ШПИЛЬКА (7/16 X 7.06 IN.) (X-Long) STUD (7/16 X 7.06 IN.) (X-Long) |
2 | discontinued |
| 11 | 74732 |
ШПИЛЬКА (7/16 X 7.69 IN.) (X-Long) STUD (7/16 X 7.69 IN.) (X-Long) |
3 | discontinued |
| 11 | 78639 |
ШПИЛЬКА (7/16 X 8-1/8 IN.) (X-Long) STUD (7/16 X 8-1/8 IN.) (X-Long) |
1 | discontinued |
| 12 | 826134 |
АНОД ANODE |
2 | superseded |
| 13 | 4000333 |
ВИНТ (M6 x 40) SCREW (M6 x 40) |
1 | |
| 14 | 8268336 |
ГАЙКА (M6) NUT (M6) |
1 | superseded |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Pinion Gear NOT SOLD SEPARATE Pinion Gear |
1 | |
| 16 | 92721 |
ШАЙБА WASHER (.965 x .630) |
1 | |
| 17 | 35921 |
ГАЙКА (.625-18) NUT (.625-18) |
1 | |
| 18 | 79953A2 |
КОМПЛЕКТ ВИНТОВ (0.375-16 x 0.250) SCREW KIT (.375-16 x .250) |
1 | superseded |
| 19 | 19183 |
ШАЙБА Волокна WASHER Fiber |
1 | superseded |
| 2 | 8479503 |
КРЫШКА COVER |
2 | superseded |
| 20 | 789022 |
ВАЛ ПЕРЕКЛЮЧЕНИЯ ПЕРЕДАЧ (LOWER) SHIFT SHAFT (LOWER) |
1 | |
| 21 | 77631A2 |
ВТУЛКА В СБОРЕ BUSHING ASSEMBLY |
1 | |
| 22 | 25439 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.862 x 0.103) O-RING (.862 x .103) |
1 | |
| 23 | 8164641 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 24 | 77674 |
ШАЙБА WASHER (.35 x .75 x .12) |
1 | |
| 25 | 848449A4 |
КАРДАННЫЙ ВАЛ В СБОРЕ (Short) DRIVESHAFT ASSEMBLY (Short) |
1 | superseded |
| 25 | 848449A5 |
КАРДАННЫЙ ВАЛ В СБОРЕ (Long) DRIVESHAFT ASSEMBLY (Long) |
1 | superseded |
| 25 | 848449A6 |
КАРДАННЫЙ ВАЛ В СБОРЕ (X-Long) DRIVESHAFT ASSEMBLY (X-Long) |
1 | discontinued |
| 26 | 38657A1 |
ПРОКЛАДКА В СБОРЕ SHIM ASSEMBLY |
1 | discontinued |
| 27 | 48939A2 |
ПОДШИПНИК Конический ролик BEARING Taper Roller |
1 | superseded |
| 28 | 42637A1 |
НАБОР ПРОКЛАДОК SHIM SET |
AR | discontinued |
| 29 | 36387A1 |
БЛОК ПОДШИПНИКА Ролик/колпачок BEARING ASSEMBLY Roller/Cup |
1 | superseded |
| 3 | 34776 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 30 | 824519 |
ФИКСАТОР RETAINER |
1 | superseded |
| 31 | 44292A3 |
БАЗА В СБОРЕ Водяной насос BASE ASSEMBLY Water Pump |
1 | |
| 32 | 426311 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 33 | 90011 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.175 x 0.175) O-RING (2.175 x .175) |
1 | superseded |
| 34 | 89238 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 35 | 16977 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 36 | 18051 |
ПРОКЛАДКА GASKET |
1 | |
| 37 | 856091 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 38 | 32435 |
ЦИФЕРБЛАТ FACE PLATE |
1 | superseded |
| 39 | 847710A1 |
КОРПУС В СБОРЕ Водяной насос (Use with 3/4 Inch Diameter Water Tube) BODY ASSEMBLY Water Pump (Use with 3/4 Inch Diameter Water Tube) |
1 | superseded |
| 39 | 96148A1 |
КОРПУС В СБОРЕ Водяной насос (Use with 1/2 Inch Diameter Water Tube) BODY ASSEMBLY Water Pump (Use with 1/2 Inch Diameter Water Tube) |
1 | superseded |
| 4 | 815904 |
ВИНТ (№10-32 x 0.500) SCREW (#10-32 x .500) |
12 | |
| 40 | 48752 |
ВСТАВКА (Use with 3/4 Inch Diameter Water Tube) INSERT (Use with 3/4 Inch Diameter Water Tube) |
1 | superseded |
| 41 | 88397 |
УПЛОТНЕНИЕ (Use with 3/4 Inch Diameter Water Tube) SEAL (Use with 3/4 Inch Diameter Water Tube) |
1 | |
| 41 | 38970 |
УПЛОТНЕНИЕ (Use with 1/2 Inch Diameter Water Tube) SEAL (Use with 1/2 Inch Diameter Water Tube) |
1 | |
| 42 | 847685 |
РУКАВ (Use with 3/4 Inch Diameter Water Tube) SLEEVE (Use with 3/4 Inch Diameter Water Tube) |
1 | |
| 42 | 29804 |
РУКАВ (Use with 1/2 Inch Diameter Water Tube) SLEEVE (Use with 1/2 Inch Diameter Water Tube) |
1 | superseded |
| 43 | 56654 |
КЛЮЧ KEY |
1 | superseded |
| 44 | 899842 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 45 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 46 | 13438 |
ГАЙКА (0.250-28) NUT (.250-28) |
2 | superseded |
| 47 | 36001 |
ШАЙБА WASHER |
1 | |
| 48 | 13436 |
ГАЙКА NUT |
1 | |
| 49 | 96411 |
ВИНТ (№14-8 x 2.25) SCREW (#14-8 x 2.25) |
1 | superseded |
| 5 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 6 | 42647A1 |
БЛОК ПОДШИПНИКА Ролик BEARING ASSEMBLY Roller |
1 | |
| 7 | 67891 |
БЛОК ЗАЛИВКИ FILLER BLOCK |
1 | superseded |
| 8 | 847949 |
ПРОБКА Труба PLUG Pipe |
1 | |
| 9 | 56297 |
ШПИЛЬКА (0.312 x 3.38) STUD (.312 x 3.38) |
1 | superseded |
