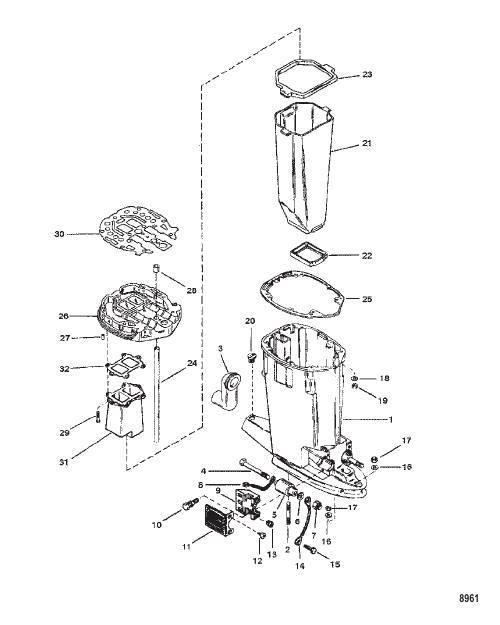

Driveshaft Housing and Exhaust Tube
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 823142A94 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 8343A10 |
КОРПУС В СБОРЕ Карданный вал (BLACK) HOUSING ASSEMBLY Driveshaft (BLACK) |
1 | superseded |
| 1 | 8343A11 |
КОРПУС В СБОРЕ Карданный вал (GRAY) HOUSING ASSEMBLY Driveshaft (GRAY) |
1 | superseded |
| 10 | 66727 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
4 | |
| 11 | 67077T |
КРЫШКА Черный (BLACK) COVER Black (BLACK) |
2 | superseded |
| 11 | 67077F1 |
КРЫШКА Серый (GRAY) COVER Gray (GRAY) |
2 | discontinued |
| 12 | 88417 |
ВИНТ (№12-24 x 0.620) SCREW (#12-24 x .620) |
4 | |
| 13 | 35521 |
ГАЙКА NUT |
4 | |
| 14 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 15 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 16 | 822836 |
ШАЙБА (0.445 x 0.805 x 0.108) WASHER (.445 x .805 x .108) |
3 | |
| 17 | 134391 |
ГАЙКА (0.4375-20) NUT (.4375-20) |
3 | superseded |
| 18 | 822838 |
ШАЙБА (0.401 x 0.745 x 0.097) WASHER (.401 x .745 x .097) |
4 | |
| 19 | 46335 |
ГАЙКА (.375-24) NUT (.375-24) |
4 | |
| 2 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) STUD (.437-14/.437-20 x 2.812) |
2 | |
| 20 | 64649 |
ПРОБКА PLUG |
1 | |
| 21 | 18276 |
ТРУБА Выхлоп TUBE Exhaust |
1 | superseded |
| 22 | 66350 |
УПЛОТНЕНИЕ (LOWER) SEAL (LOWER) |
1 | superseded |
| 23 | 177261 |
УПЛОТНЕНИЕ (UPPER) SEAL (UPPER) |
1 | superseded |
| 24 | 67295 |
ТРУБА Вода (LONG) TUBE Water (LONG) |
1 | superseded |
| 24 | 74729 |
ТРУБА (X-LONG) TUBE (X-LONG) |
1 | superseded |
| 25 | 991732 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 26 | 18233A4 |
ПЛАСТИНА В СБОРЕ PLATE ASSEMBLY |
1 | discontinued |
| 27 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 28 | 38970 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 29 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь SCREW (.250-20 x .750) Stainless Steel |
6 | |
| 3 | 8146181 |
ЧЕХОЛ Выхлоп холостого хода BOOT Idle Exhaust |
1 | discontinued |
| 30 | 183071 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 31 | 812834 |
УДЛИНИТЕЛЬ Выхлоп (13-1/2 IN.) EXTENSION Exhaust (13-1/2 IN.) |
1 | superseded |
| 31 | 41942F3 |
УДЛИНИТЕЛЬ Выхлоп (7-1/2 IN.) EXTENSION Exhaust (7-1/2 IN.) |
1 | superseded |
| 32 | 78246 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 4 | 63474 |
ВИНТ (0.500-20 x 6.00) SCREW (.500-20 x 6.00) |
2 | superseded |
| 5 | 816054 |
КРЕПЛЕНИЕ MOUNT |
2 | superseded |
| 6 | 816056 |
ШАЙБА WASHER |
4 | |
| 7 | 28040 |
ГАЙКА (.500-20) NUT (.500-20) |
2 | superseded |
| 8 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 9 | 67076 |
ЗАЖИМ CLAMP |
2 | superseded |
