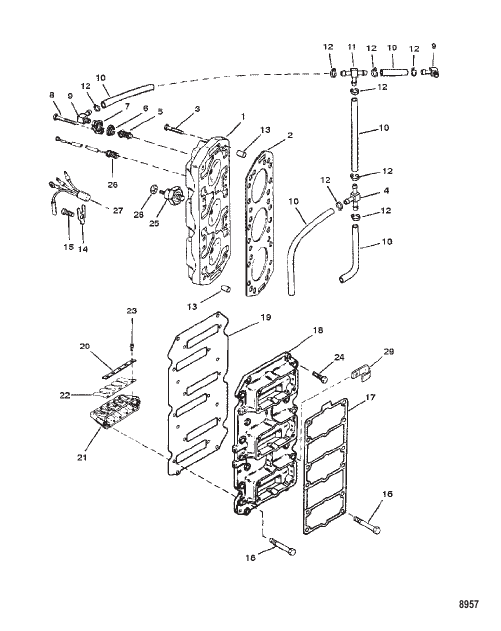

Reed Block and Cylinder Head
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 823142A94 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 809839A94 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (150) POWERHEAD ASSEMBLY (150) |
1 | superseded |
| - | 808603A94 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | superseded |
| 1 | 18488F1 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
2 | superseded |
| 10 | 83075780 |
ТРУБОПРОВОД (Общая длина 28.00") (Cut (1) to 2-1/2 Inches, (2) to 7-1/2 Inches, (1) to 10-1/2 Inches, (1) to 14-1/2 Inches) TUBING (28.00 Inches Bulk) (Cut (1) to 2-1/2 Inches, (2) to 7-1/2 Inches, (1) to 10-1/2 Inches, (1) to 14-1/2 Inches) |
5 | superseded |
| 11 | 90824 |
ТРОЙНИК TEE |
1 | superseded |
| 12 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 13 | 63779 |
ШТИФТ Штифт (0.250 x 0.625) PIN Dowel (.250 x .625) |
4 | |
| 14 | 137151 |
ФИКСАТОР RETAINER |
2 | |
| 15 | 98257 |
ВИНТ (0.312-18 x 0.500) SCREW (.312-18 x .500) |
2 | |
| 16 | 55715 |
ВИНТ (0.250-20 x 0.880) SCREW (.250-20 x .880) |
6 | |
| 16 | 90197 |
ВИНТ (0.250-20 x 1.125) SCREW (.250-20 x 1.125) |
6 | discontinued |
| 17 | 167371 |
ПРОКЛАДКА GASKET |
1 | |
| 18 | 17735A2 |
ПЕРЕХОДНАЯ ПЛАСТИНА В СБОРЕ ADAPTER PLATE ASSEMBLY |
1 | discontinued |
| 19 | 146972 |
ПРОКЛАДКА GASKET |
1 | |
| 2 | 8228441 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 20 | 961832 |
ЗАЖИМ Пластинчатый клапан [0G502499] & Below CLAMP Reed [0G502499] & Below |
12 | |
| 21 | 75953 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ [0G502499] & Below REED BLOCK [0G502499] & Below |
6 | |
| 21 | 11645A4 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ [0G502500] & Up REED BLOCK [0G502500] & Up |
6 | discontinued |
| 22 | 14594A1 |
ПЛАСТИНЫ В СБОРЕ [0G502499] & Below REED ASSEMBLY [0G502499] & Below |
6 | superseded |
| 22 | 14594A3 |
ПЛАСТИНЫ В СБОРЕ [0G502500] & Up REED ASSEMBLY [0G502500] & Up |
6 | superseded |
| 23 | 823588 |
ВИНТ (№8-32 x .250) Reeds to Reed Block [0G502499] & Below SCREW (#8-32 x .250) Reeds to Reed Block [0G502499] & Below |
60 | |
| 23 | 849039 |
ВИНТ [0G502500] & Up SCREW [0G502500] & Up |
48 | superseded |
| 24 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
8 | |
| 25 | 825164 |
ДАТЧИК Детонация SENSOR Detonation |
1 | discontinued |
| 26 | 97465 |
ДАТЧИК Температура (STARBOARD) SENDER Temperature (STARBOARD) |
1 | |
| 27 | 13536A6 |
ДАТЧИК В СБОРЕ Температура (PORT) SENSOR ASSEMBLY Temperature (PORT) |
1 | |
| 28 | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
1 | |
| 29 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 3 | 98534 |
ВИНТ (0.375-16 x 2.30) SCREW (.375-16 x 2.30) |
24 | discontinued |
| 3 | 13450 |
ВИНТ (0.375-16 x 2.30) (200)(Use where Applicable) SCREW (.375-16 x 2.30) (200)(Use where Applicable) |
1 | discontinued |
| 4 | 815914 |
ТРОЙНИК T-FITTING |
1 | |
| 5 | 75692 |
ТЕРМОСТАТ THERMOSTAT |
2 | |
| 6 | 62386 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 7 | 90390A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
2 | |
| 8 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
4 | |
| 9 | 13607 |
ФИТИНГ WATER HOSES FITTING WATER HOSES |
2 | superseded |
