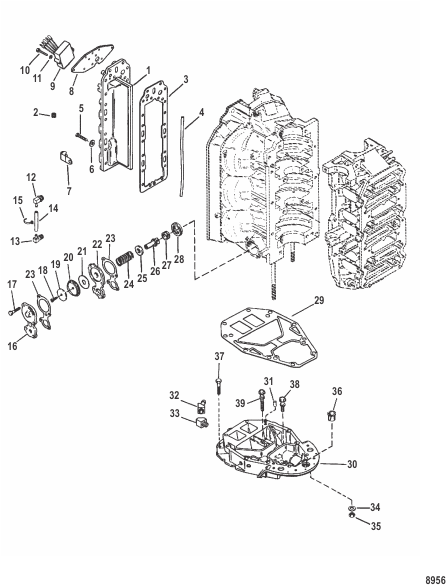

Exhaust Divider and Exhaust Plate
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 823142A94 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 809839A94 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (150) POWERHEAD ASSEMBLY (150) |
1 | superseded |
| - | 808603A94 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | superseded |
| 1 | 815552A1 |
ДЕЛИТЕЛЬ DIVIDER PLATE |
1 | superseded |
| 10 | 69697 |
ВИНТ (0.250-28 x 1.50) SCREW (.250-28 x 1.50) |
4 | discontinued |
| 11 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
4 | superseded |
| 12 | 814430 |
ФИТИНГ (0.500-14) FITTING (.500-14) |
1 | superseded |
| 13 | 92007 |
ФИТИНГ (.250-18) (90 DEGREES) FITTING (.250-18) (90 DEGREES) |
1 | superseded |
| 14 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 23-1/2 IN.) HOSE (57.00 Inches Bulk) (Cut to 23-1/2 IN.) |
1 | superseded |
| 15 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | superseded |
| 16 | 68729 |
КРЫШКА COVER |
1 | superseded |
| 17 | 74824 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
4 | |
| 18 | 69570 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
1 | |
| 19 | 76451 |
ШАЙБА WASHER |
1 | |
| 2 | 328021 |
ПРОБКА Труба (0.125-27) PLUG Pipe (.125-27) |
1 | superseded |
| 20 | 14479 |
ДИАФРАГМА DIAPHRAGM |
1 | superseded |
| 21 | 16496 |
ОТРАЖАТЕЛЬ Вода DEFLECTOR Water |
1 | |
| 22 | 16497A1 |
ПЛАСТИНА PLATE |
1 | |
| 23 | 78690 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 24 | 64878 |
ПРУЖИНА (черный) SPRING (Black) |
1 | |
| 25 | 85303 |
ШАЙБА WASHER |
1 | |
| 26 | 14480 |
ТАРЕЛЬЧАТЫЙ КЛАПАН POPPET |
1 | |
| 27 | 64872 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 28 | 65848 |
КОРПУС CARRIER |
1 | |
| 29 | 8231421 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 3 | 8475251 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 30 | 18260A4 |
ПЛАСТИНА В СБОРЕ Выхлоп PLATE ASSEMBLY Exhaust |
1 | discontinued |
| 31 | 823106 |
ШТИФТ Штифт (0.875) PIN Dowel (.875) |
2 | superseded |
| 32 | 14867 |
КОЛЕНЧАТЫЙ 45 градусов (45 DEGREES) ELBOW 45 Degree (45 DEGREES) |
1 | |
| 33 | 29085 |
ФИТИНГ Колено (45 градусов) FITTING Elbow (45 Degree) |
1 | superseded |
| 34 | 822838 |
ШАЙБА (0.401 x 0.745 x 0.097) WASHER (.401 x .745 x .097) |
6 | |
| 35 | 46335 |
ГАЙКА (.375-24) NUT (.375-24) |
6 | |
| 36 | 27132 |
ВТУЛКА BUSHING |
1 | |
| 37 | 66725 |
ВИНТ (0.375-16 x 3.50) SCREW (.375-16 x 3.50) |
3 | superseded |
| 38 | 66727 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | |
| 39 | 68783 |
ВИНТ (0.312-18 x 2.50) SCREW (.312-18 x 2.50) |
1 | |
| 4 | 814754 |
УПЛОТНЕНИЕ (12.50") SEAL (12.50 Inches) |
1 | |
| 5 | 847538 |
ВИНТ (1-1/2 Inches) SCREW (1-1/2 Inches) |
18 | superseded |
| 5 | 848497 |
ВИНТ (0.312-18 x 1.00) (1 Inch) SCREW (.312-18 x 1.00) (1 Inch) |
2 | |
| 6 | 847526 |
ШАЙБА (USE WHERE APPLICABLE) WASHER (USE WHERE APPLICABLE) |
20 | discontinued |
| 7 | 814634 |
ЗАЖИМ (LARGE) CLAMP (LARGE) |
AR | |
| 7 | 642352 |
J-ЗАЖИМ (SMALL) J CLIP (SMALL) |
1 | discontinued |
| 8 | 8478951 |
ПЛАСТИНА Регулятор PLATE Regulator |
1 | |
| 9 | 815279T |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | superseded |
