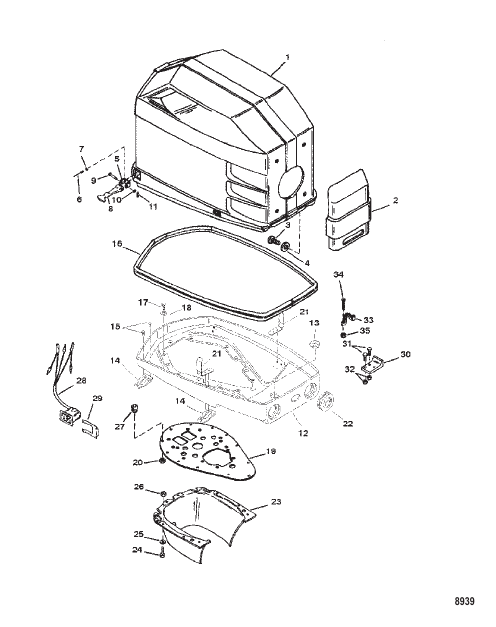

Cowling
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 817704A22 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (BLACK) TOP COWL ASSEMBLY (BLACK) |
1 | superseded |
| 1 | 817704A23 |
ВЕРХНИЙ КОЖУХ В СБОРЕ (GRAY) TOP COWL ASSEMBLY (GRAY) |
1 | superseded |
| 10 | 847883 |
ШАЙБА (0.192 x 0.375 x 0.033) WASHER (.192 x .375 x .033) |
4 | discontinued |
| 11 | 21071 |
ШПЛИНТ COTTER PIN |
4 | superseded |
| 12 | 848164A7 |
НИЖНИЙ ПОДДОН (BLACK) BOTTOM PAN (BLACK) |
1 | superseded |
| 12 | 817709A13 |
НИЖНИЙ ПОДДОН (GRAY) BOTTOM PAN (GRAY) |
1 | superseded |
| 13 | 815784 |
ПРОБКА CAP |
2 | |
| 14 | 13734 |
ФИКСАТОР (BLACK) RETAINER (BLACK) |
4 | superseded |
| 14 | 137341 |
ФИКСАТОР (GRAY) RETAINER (GRAY) |
4 | discontinued |
| 15 | 848172 |
ЗАКЛЕПКА (POP-OPEN) RIVET (POP-OPEN) |
16 | |
| 16 | 8177121 |
УПЛОТНЕНИЕ (Общая длина 6.79 фт.) SEAL (6.79 Feet Bulk) |
1 | superseded |
| 17 | 38601 |
ВИНТ (0.250-28 x 1.250) SCREW (.250-28 x 1.250) |
11 | |
| 18 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
11 | superseded |
| 19 | 8221882 |
ПЛАСТИНА PLATE |
1 | superseded |
| 2 | 817706A3 |
ПЕРЕДНЯЯ КРЫШКА (BLACK) FRONT COVER (BLACK) |
1 | discontinued |
| 2 | 817706A4 |
ПЕРЕДНЯЯ КРЫШКА (GRAY) FRONT COVER (GRAY) |
1 | discontinued |
| 20 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
11 | superseded |
| 21 | 848165 |
СКОБА BRACE |
2 | discontinued |
| 22 | 8177131 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (CIRCULAR) GROMMET (CIRCULAR) |
2 | discontinued |
| 22 | 8177133 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (OVAL) GROMMET (OVAL) |
2 | |
| 23 | 847894A1 |
ЮБКА (BLACK) SKIRT (BLACK) |
1 | superseded |
| 23 | 847894A2 |
ЮБКА (GRAY) SKIRT (GRAY) |
1 | discontinued |
| 24 | 69028 |
ВИНТ (0.250-28 x 0.750), нержавеющая сталь SCREW (.250-28 x .750) Stainless Steel |
8 | |
| 25 | 35462 |
ШАЙБА (0.2656 x 0.625 x 0.0625), нержавеющая сталь WASHER (.2656 x .625 x .0625) Stainless Steel |
16 | |
| 26 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
8 | superseded |
| 27 | 126021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | superseded |
| 28 | 18286A40 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMBLY |
1 | superseded |
| 29 | 8124431 |
ФИКСАТОР RETAINER |
1 | superseded |
| 3 | 69570 |
ВИНТ (№10-16 x 0.750) SCREW (#10-16 x .750) |
4 | |
| 30 | 847897 |
КРОНШТЕЙН Соединитель топливопровода BRACKET Fuel Connector |
1 | discontinued |
| 31 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
2 | |
| 32 | 814101 |
ГАЙКА (0.250-20), нержавеющая сталь NUT (.250-20) Stainless Steel |
2 | superseded |
| 33 | 88621 |
ФИКСАТОР (Use where Applicable) RETAINER (Use where Applicable) |
1 | discontinued |
| 34 | 69020 |
ВИНТ (№10-32 x 0.875) SCREW (#10-32 x .875) |
2 | superseded |
| 35 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
2 | superseded |
| 4 | 22887 |
ШАЙБА WASHER |
4 | discontinued |
| 5 | 71602 |
ВИЛКА (BLACK) YOKE (BLACK) |
4 | superseded |
| 5 | 716021 |
ВИЛКА (GRAY) YOKE (GRAY) |
4 | discontinued |
| 6 | 816771 |
ЗАКЛЕПКА RIVET |
12 | discontinued |
| 7 | 847883 |
ШАЙБА (0.192 x 0.375 x 0.033) WASHER (.192 x .375 x .033) |
12 | discontinued |
| 8 | 817708 |
КРЕПЕЖ HOLD DOWN |
4 | |
| 9 | 58712 |
ШТИФТ Вилка PIN Clevis |
4 |
