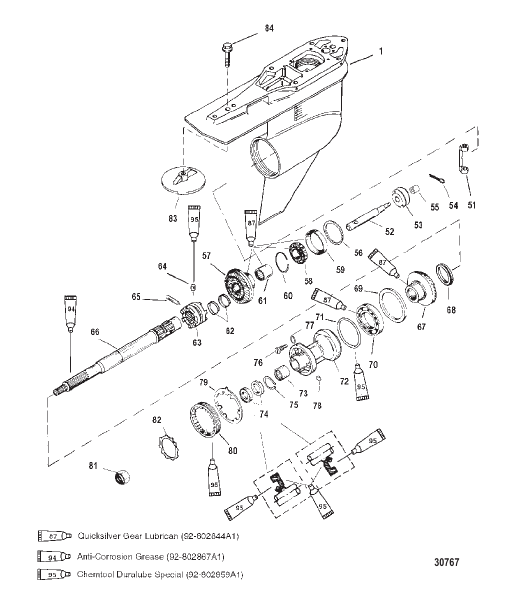

| # | Part Number | Description | Qty | Status |
|---|
| - |
840470T10 |
GEAR HOUSING ASSEMBLY (COMPLETE)
|
1 |
disc.
|
| - |
816575A6 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
840470T5 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 51 |
823903 |
SHIFT CRANK
|
1 |
superseded
|
| 52 |
19755T7 |
SPOOL ASSEMBLY
|
1 |
superseded
|
| 53 |
NSS |
NOT SOLD SEPARATE Shift Pool
|
1 |
|
| 54 |
469501 |
COTTER PIN
|
1 |
|
| 55 |
NSS |
NOT SOLD SEPARATE Sleeve
|
1 |
|
| 56 |
47397A1 |
SHIM SET
|
AR |
|
| 57 |
828168T3 |
GEAR SET Forward/Pinion
|
1 |
superseded
|
| 58 |
828437A2 |
BEARING ASSEMBLY
|
1 |
|
| 59 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 60 |
856823 |
RING Retaining
|
1 |
|
| 61 |
30895T |
BEARING Needle
|
1 |
|
| 62 |
78962 |
SPRING
|
2 |
|
| 63 |
848878T |
CLUTCH
|
1 |
|
| 64 |
78909 |
PIN Detent
|
1 |
|
| 65 |
848838 |
PIN Cross
|
1 |
|
| 66 |
848829 |
PROPELLER SHAFT
|
1 |
|
| 67 |
848881A1 |
GEAR Reverse
|
1 |
superseded
|
| 68 |
8241081 |
THRUST SPACER
|
1 |
|
| 69 |
681001 |
RING Thrust
|
1 |
|
| 70 |
88957T |
BEARING Ball
|
1 |
|
| 71 |
31534 |
O-RING
|
1 |
superseded
|
| 72 |
848840T1 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 73 |
817072 |
BEARING Roller
|
1 |
|
| 74 |
815565 |
SEAL Oil
|
2 |
|
| 75 |
817071 |
RING Snap
|
1 |
|
| 76 |
67892A1 |
FITTING KIT Magnetic, Plug Fill/Drain
|
1 |
superseded
|
| 77 |
191832 |
WASHER
|
1 |
superseded
|
| 78 |
30281 |
KEY
|
1 |
|
| 79 |
79447 |
TAB WASHER
|
1 |
|
| 80 |
79448 |
RETAINER
|
1 |
superseded
|
| 81 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 82 |
423511 |
LOCKWASHER Toothed
|
1 |
|
| 83 |
76214Q5 |
ANODE KIT
|
1 |
|
| 84 |
66024 |
SCREW (.437-14 x 1.75)
|
1 |
|
