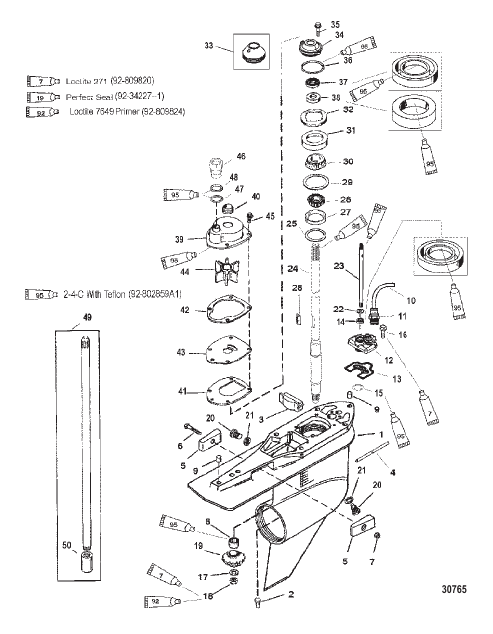

| # | Part Number | Description | Qty | Status |
|---|
| - |
840470T10 |
GEAR HOUSING ASSEMBLY (COMPLETE)
|
1 |
disc.
|
| - |
816575A6 |
SEAL KIT Gear Housing
|
1 |
|
| - |
817275A5 |
REBUILD KIT Water Pump
|
1 |
|
| 1 |
840470T5 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
85944975 |
TUBING (72.00 Inches Bulk) (Cut to 7 IN.)
|
1 |
|
| 11 |
859432 |
FITTING
|
1 |
superseded
|
| 12 |
858934 |
COVER
|
1 |
|
| 13 |
858935 |
GASKET
|
1 |
|
| 14 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 15 |
36318 |
O-RING (.799)
|
1 |
superseded
|
| 16 |
82130016 |
SCREW (M6 x 16)
|
2 |
|
| 17 |
92721 |
WASHER (.965 x .630)
|
1 |
|
| 18 |
35921 |
NUT (.625-18)
|
1 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Pinion Gear (PART OF 43-828168T3)
|
1 |
|
| 2 |
379721 |
PIN
|
1 |
|
| 20 |
79953Q2 |
SCREW KIT (.375-16 x .250) Drain
|
2 |
superseded
|
| 21 |
191832 |
WASHER
|
2 |
superseded
|
| 22 |
77674 |
WASHER (.35 x .75 x .12)
|
1 |
|
| 23 |
824145 |
SHIFT SHAFT (LOWER)
|
1 |
|
| 24 |
881938 |
DRIVESHAFT
|
1 |
|
| 25 |
38657A1 |
SHIM ASSEMBLY
|
AR |
disc.
|
| 26 |
48939A2 |
BEARING Taper Roller
|
1 |
superseded
|
| 27 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 28 |
43037 |
KEY
|
1 |
superseded
|
| 29 |
42637A1 |
SHIM SET
|
AR |
disc.
|
| 3 |
821526 |
FILLER BLOCK
|
1 |
superseded
|
| 30 |
36387A1 |
BEARING ASSEMBLY Roller/Cup
|
1 |
superseded
|
| 31 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 32 |
8245191 |
RETAINER
|
1 |
|
| 33 |
807929A1 |
CARRIER ASSEMBLY [0T429944] & Below
|
1 |
superseded
|
| 34 |
840836A2 |
CARRIER ASSEMBLY [0T429945] & Up
|
1 |
superseded
|
| 35 |
82130016 |
SCREW (M6 x 16) [0T429945] & Up
|
2 |
|
| 36 |
90011 |
O-RING (2.175 x .175)
|
1 |
superseded
|
| 37 |
66302 |
SEAL Oil
|
1 |
superseded
|
| 38 |
66302 |
SEAL Oil
|
1 |
superseded
|
| 39 |
817275A1 |
HOUSING KIT Water Pump
|
1 |
|
| 4 |
859402 |
PITOT TUBE
|
1 |
|
| 40 |
816575A2 |
SEAL KIT
|
1 |
|
| 41 |
430331 |
GASKET
|
1 |
|
| 42 |
8172771 |
GASKET Water Pump, Upper
|
1 |
|
| 43 |
8172761 |
FACEPLATE
|
1 |
superseded
|
| 44 |
43026T2 |
IMPELLER
|
1 |
|
| 45 |
82130016 |
SCREW (M6 x 16)
|
4 |
|
| 46 |
832942A1 |
COUPLING ASSEMBLY
|
1 |
|
| 47 |
21836 |
O-RING (.796 x .139)
|
1 |
superseded
|
| 48 |
35027 |
O-RING (1.046)
|
1 |
superseded
|
| 49 |
848832A1 |
DRIVESHAFT ASSEMBLY
|
1 |
|
| 5 |
826134Q |
ANODE
|
2 |
|
| 50 |
823902 |
COUPLING
|
1 |
|
| 6 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 7 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 8 |
42647A1 |
BEARING ASSEMBLY Roller
|
1 |
|
| 9 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
