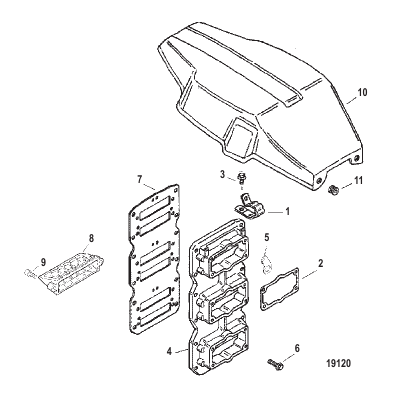

REED BLOCK/FLYWHEEL COVER
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 849007A1 |
КОМПЛЕКТ ПЛАСТИН (INCLUDES REEDS AND SCREWS) REED KIT (INCLUDES REEDS AND SCREWS) |
AR | |
| - | 832933A98 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 848700A7 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 49542 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 10 | 825832 |
КРЫШКА МАХОВИКА FLYWHEEL COVER |
1 | discontinued |
| 11 | 821555 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | superseded |
| 2 | 825815 |
ПРОКЛАДКА GASKET |
3 | |
| 3 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
2 | |
| 4 | 825178T4 |
ПЕРЕХОДНАЯ ПЛАСТИНА ADAPTER PLATE |
1 | discontinued |
| 5 | 827507 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 6 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
12 | |
| 7 | 8141951 |
ПРОКЛАДКА GASKET |
1 | |
| 8 | 828623A1 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
6 | superseded |
| 9 | 4007420 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
12 |
