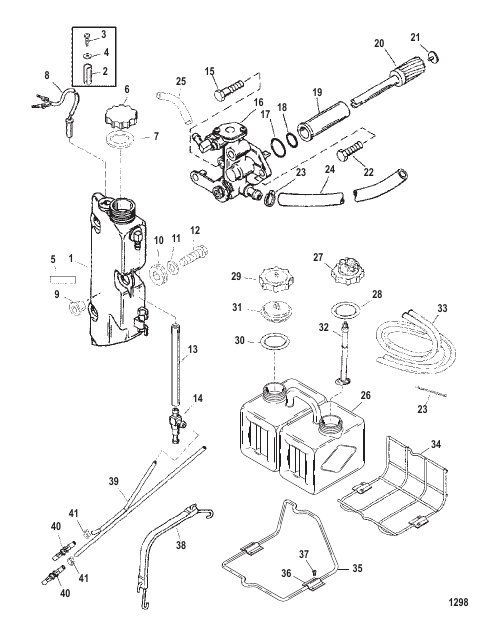

| # | Part Number | Description | Qty | Status |
|---|
| - |
8742A20 |
TANK ASSEMBLY Remote Oil (USE WITH DESIGN I BRACKET)
|
1 |
superseded
|
| - |
8742A22 |
TANK ASSEMBLY Remote Oil (USE WITH DESIGN II BRACKET)
|
1 |
|
| 1 |
818456A1 |
TANK ASSEMBLY Oil
|
1 |
|
| 10 |
825380 |
GROMMET
|
3 |
superseded
|
| 11 |
49436 |
WASHER
|
3 |
|
| 12 |
81893435 |
SCREW (M8 x 35)
|
3 |
|
| 13 |
830756109 |
HOSE (57.00 Inches Bulk)
|
1 |
superseded
|
| 14 |
424254 |
FITTING
|
1 |
superseded
|
| 15 |
82104530 |
SCREW
|
1 |
disc.
|
| 16 |
815536T1 |
PUMP Oil
|
1 |
|
| 17 |
11379 |
O-RING
|
1 |
|
| 18 |
48462 |
O-RING (.614 x .070)
|
1 |
|
| 19 |
817631 |
BEARING Driven Gear
|
1 |
disc.
|
| 2 |
8260841 |
SPACER
|
1 |
|
| 20 |
430204 |
GEAR Driven
|
1 |
disc.
|
| 21 |
816974 |
BEARING Thrust
|
1 |
|
| 22 |
82104520 |
SCREW (M5 x 20)
|
1 |
|
| 23 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 24 |
82381455 |
TUBING (25.00 Inches Bulk) (Cut to 8-3/4 IN.)
|
1 |
|
| 25 |
82381335 |
TUBING (15.00 Inches Bulk) (Cut to 10 IN.)
|
1 |
|
| 26 |
87421 |
TANK
|
1 |
|
| 27 |
816190A4 |
OIL PICK UP ASSEMBLY Without Sender
|
1 |
|
| 28 |
11332 |
O-RING (2.225 x .210)
|
1 |
|
| 29 |
43298A2 |
CAP ASSEMBLY
|
2 |
|
| 3 |
58376 |
SCREW (.164-18 x .375)
|
1 |
|
| 30 |
11332 |
O-RING (2.225 x .210)
|
1 |
|
| 31 |
NSS |
NOT SOLD SEPARATE Insert
|
1 |
|
| 32 |
99802 |
TUBE
|
1 |
|
| 33 |
99439 |
HOSE (114.00 Inches)
|
1 |
|
| 34 |
12335A1 |
BRACKET KIT (DESIGN I)
|
1 |
|
| 35 |
884481A1 |
BRACKET KIT (DESIGN II)
|
1 |
|
| 36 |
12320 |
BRACKET
|
2/3 |
|
| 37 |
79968 |
SCREW (#12-11 x .750)
|
4/6 |
|
| 38 |
12323A1 |
CORD/HOOK KIT
|
1 |
|
| 39 |
858853 |
HOSE
|
1 |
disc.
|
| 4 |
72761 |
WASHER (.203 x .562 x .060) Stainless Steel
|
1 |
|
| 40 |
858955 |
CONNECTOR
|
2 |
|
| 41 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE DECAL, Oil Tank
|
1 |
|
| 6 |
814449A3 |
CAP ASSEMBLY
|
1 |
|
| 7 |
42999 |
GASKET
|
1 |
superseded
|
| 8 |
12886A7 |
SWITCH ASSEMBLY
|
1 |
|
| 9 |
19064 |
BUSHING
|
3 |
|
