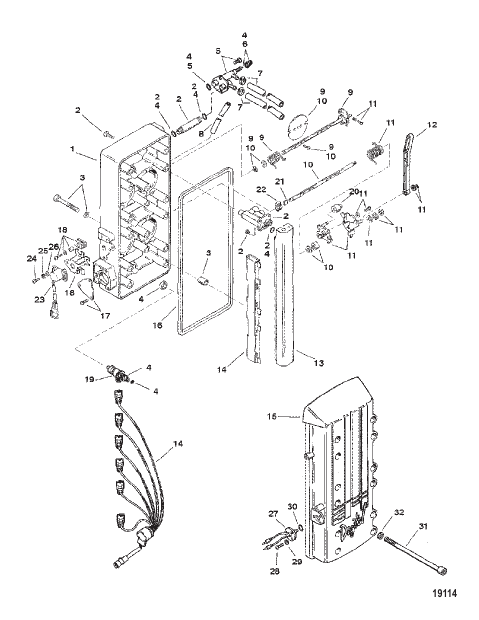

| # | Part Number | Description | Qty | Status |
|---|
| - |
825818A14 |
MANAGEMENT ASSEMBLY Fuel
|
1 |
disc.
|
| 1 |
827693T4 |
THROTTLE BODY
|
1 |
disc.
|
| 10 |
8090842 |
SHAFT KIT Throttle (BOTTOM)
|
1 |
disc.
|
| 11 |
827697A1 |
LEVER KIT Link
|
1 |
disc.
|
| 12 |
154441 |
LINK
|
1 |
disc.
|
| 13 |
8276991 |
FUEL RAIL
|
1 |
disc.
|
| 14 |
154432 |
HARNESS KIT
|
1 |
disc.
|
| 15 |
8276921 |
COVER
|
1 |
disc.
|
| 16 |
187921 |
SEAL
|
1 |
disc.
|
| 17 |
827696 |
RETAINER KIT
|
1 |
disc.
|
| 18 |
809093 |
BRACKET KIT TPS
|
5 |
disc.
|
| 19 |
18715T1 |
INJECTOR KIT
|
6 |
superseded
|
| 2 |
8090571 |
JOINT KIT Fuel Pipe
|
1 |
disc.
|
| 20 |
677483 |
ROLLER
|
1 |
disc.
|
| 21 |
89694 |
KEY
|
1 |
|
| 22 |
821153 |
COUPLING
|
1 |
|
| 23 |
821664 |
SENSOR Throttle Position
|
1 |
disc.
|
| 24 |
4005685 |
SCREW (M4 x 10)
|
2 |
|
| 25 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
2 |
|
| 26 |
30164 |
WASHER (.192 x .375 x .0312) Stainless Steel
|
2 |
|
| 27 |
13221A1 |
SENSOR ASSEMBLY Temperature
|
1 |
superseded
|
| 28 |
4005685 |
SCREW (M4 x 10)
|
3 |
|
| 29 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
3 |
|
| 3 |
8276983 |
SCREW KIT Fuel Rail
|
1 |
disc.
|
| 30 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 31 |
40132 |
SCREW (M8 x 125)
|
12 |
|
| 32 |
70132 |
WASHER (.323 x .563 x .063) Stainless Steel
|
12 |
superseded
|
| 4 |
150291 |
O-RING KIT
|
1 |
|
| 5 |
814233T1 |
FMA JOINT KIT
|
1 |
disc.
|
| 6 |
8090591 |
SCHRADER VALVE KIT
|
1 |
disc.
|
| 7 |
827694 |
TUBING KIT
|
1 |
superseded
|
| 8 |
8276941 |
TUBING KIT
|
1 |
superseded
|
| 9 |
8090843 |
SHAFT Throttle (TOP)
|
1 |
disc.
|
