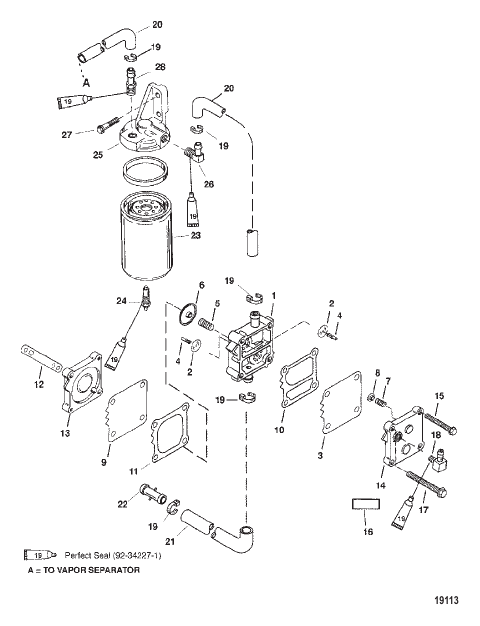

| # | Part Number | Description | Qty | Status |
|---|
| - |
857005A1 |
DIAPHRAGM KIT
|
1 |
|
| - |
832933A98 |
GASKET SET
|
1 |
|
| - |
848700A7 |
POWERHEAD ASSEMBLY
|
1 |
disc.
|
| 1 |
14360A78 |
PUMP KIT Fuel
|
1 |
|
| 10 |
NSS |
NOT SOLD SEPARATE GASKET, Boost
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE GASKET, Pulse
|
1 |
|
| 12 |
987691 |
GASKET
|
1 |
superseded
|
| 13 |
144303 |
BASE
|
1 |
|
| 14 |
987752 |
PLATE
|
1 |
|
| 15 |
82104540 |
SCREW (M5 x 40)
|
2 |
|
| 16 |
NSS |
NOT SOLD SEPARATE DECAL, Assembled in Mexico
|
1 |
|
| 17 |
82130050 |
SCREW (M6 x 50)
|
2 |
|
| 18 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 19 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 2 |
NSS |
NOT SOLD SEPARATE Disk Check Valve
|
2 |
|
| 20 |
830757130 |
TUBING (.312) (70.00 Inches Bulk) (Cut to 17 IN.)
|
2 |
superseded
|
| 21 |
85936157 |
TUBING (26.00 Inches Bulk) (Cut to 26 IN.)
|
1 |
superseded
|
| 21 |
830757130 |
TUBING (.312) (70.00 Inches Bulk) (Cut to 17 IN.)
|
1 |
superseded
|
| 22 |
822769 |
CONNECTOR
|
1 |
|
| 23 |
18458T4 |
FILTER KIT
|
1 |
|
| 24 |
8285861 |
PROBE
|
1 |
superseded
|
| 25 |
13170A3 |
BASE
|
1 |
disc.
|
| 26 |
136071 |
ELBOW
|
1 |
|
| 27 |
82130030 |
SCREW (M6 x 30)
|
2 |
|
| 28 |
89771Q2 |
CONNECTOR (.250-18)
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Diaphragm
|
1 |
|
| 4 |
NSS |
NOT SOLD SEPARATE Retainer
|
2 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Cap
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Diaphragm
|
1 |
|
