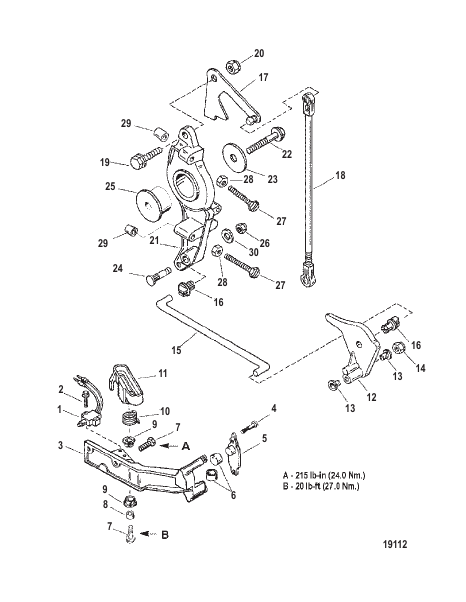

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814281A2 | SWITCH | 1 | superseded |
| 10 | 824014 | SPRING | 1 | disc. |
| 11 | 8240111 | GUIDE Roller | 1 | disc. |
| 12 | 8142391 | CAM | 1 | superseded |
| 13 | 26856 | BUSHING | 2 | |
| 14 | 401386 | NUT (M6) Stainless Steel | 1 | |
| 15 | 825377 | LINK Throttle | 1 | disc. |
| 16 | 932481 | BUSHING | 2 | superseded |
| 17 | 826205 | BRACKET Oil Link | 1 | disc. |
| 18 | 878190 | LINK | 1 | disc. |
| 19 | 82155025 | SCREW (M8 x 25 MM) Stainless Steel | 1 | |
| 2 | 82470620 | SCREW (M3.5 x 20) | 2 | |
| 20 | 401388 | NUT (M8) Stainless Steel | 1 | |
| 21 | 8252682 | LEVER | 1 | superseded |
| 22 | 81893435 | SCREW (M8 x 35) | 1 | |
| 23 | 36042 | WASHER | 1 | |
| 24 | 42927 | INSERT | 1 | |
| 25 | 821113 | BUSHING | 1 | |
| 26 | 401386 | NUT (M6) Stainless Steel | 1 | |
| 27 | 40124 | SCREW (M6 x 55) | 2 | |
| 28 | 400212 | NUT (M6) Stainless Steel | 2 | |
| 29 | 42942 | CAP | 2 | |
| 3 | 8240102 | BRACKET | 1 | superseded |
| 30 | 35459 | WASHER | 1 | |
| 4 | 42975 | DRIVE SCREW | 2 | |
| 5 | 824016 | LATCH | 1 | |
| 6 | 824015 | CUP Barrel Retainer | 2 | |
| 7 | 82155025 | SCREW (M8 x 25 MM) Stainless Steel | 3 | |
| 8 | 824013 | BUSHING | 1 | |
| 9 | 812707 | BUSHING | 2 |
