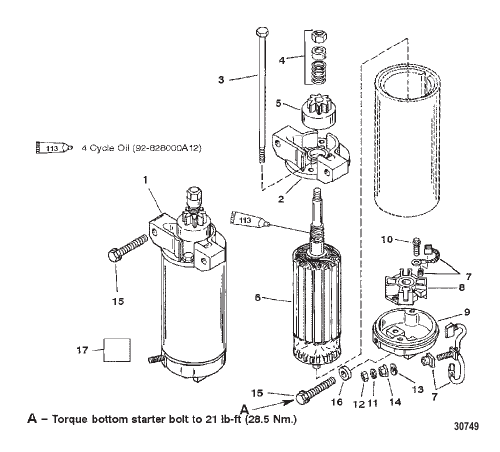

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8184455 |
STARTER MOTOR ASSEMBLY
|
1 |
superseded
|
| 10 |
F15158 |
SCREW
|
2 |
disc.
|
| 11 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
2 |
|
| 12 |
94330 |
NUT (.250-20) Brass
|
2 |
|
| 13 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
1 |
|
| 14 |
20890 |
NUT (.250-20)
|
1 |
|
| 15 |
81893450 |
SCREW (M8 x 50)
|
3 |
|
| 16 |
824921 |
SPACER
|
1 |
|
| 17 |
8272822 |
DECAL Warning High Voltage
|
1 |
|
| 2 |
8236392 |
DRIVE CAP
|
1 |
disc.
|
| 3 |
823641 |
THRU BOLT
|
2 |
disc.
|
| 4 |
823640T |
DRIVE KIT
|
1 |
disc.
|
| 5 |
861771 |
PINION
|
1 |
superseded
|
| 6 |
823638 |
ARMATURE
|
1 |
disc.
|
| 7 |
75384 |
BRUSH/SPRING KIT
|
1 |
superseded
|
| 8 |
61787 |
HOLDER
|
1 |
superseded
|
| 9 |
8119011 |
CAP Commutator
|
1 |
disc.
|
