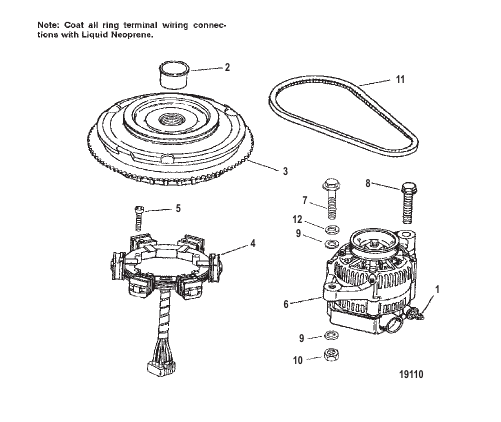

FLYWHEEL/STATOR
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 401386 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 10 | 4013610 |
ГАЙКА (M10), нержавеющая сталь NUT (M10) Stainless Steel |
1 | |
| 11 | 497561 |
КЛИНОВОЙ РЕМЕНЬ V BELT |
1 | superseded |
| 12 | 17457 |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 45907 |
ПРОБКА Желтый PLUG Yellow |
1 | |
| 3 | 821033T2 |
МАХОВИК FLYWHEEL |
1 | discontinued |
| 4 | 821935A5 |
СТАТОР STATOR |
1 | |
| 5 | 82494830 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
4 | |
| 6 | 821663A1 |
ГЕНЕРАТОР ALTERNATOR |
1 | discontinued |
| 7 | 82446155 |
ВИНТ (M10 x 55) SCREW (M10 x 55) |
1 | |
| 8 | 82130140 |
ВИНТ (M10 x 40) SCREW (M10 x 40) |
1 | |
| 9 | 796431 |
ШАЙБА WASHER |
2 |
