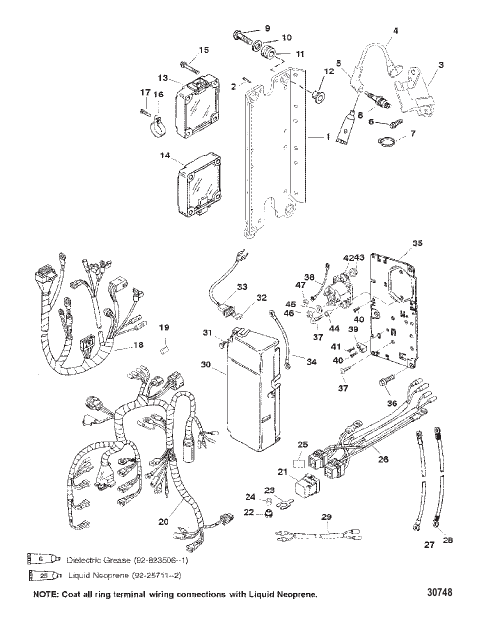

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
825296T1 |
PLATE Electrical Mounting
|
1 |
disc.
|
| 10 |
49436 |
WASHER
|
4 |
|
| 11 |
825380 |
GROMMET
|
4 |
superseded
|
| 12 |
19064 |
BUSHING
|
4 |
|
| 13 |
83004419S |
ECU Engine Control Unit (CDI)
|
1 |
disc.
|
| 14 |
83004615S |
ECU Engine Control Unit (EFI)
|
1 |
superseded
|
| 15 |
82129145 |
SCREW (M6 x 45)
|
8 |
|
| 16 |
826188 |
CLAMP
|
1 |
disc.
|
| 17 |
82104520 |
SCREW (M5 x 20)
|
1 |
|
| 18 |
825763A5 |
HARNESS ASSEMBLY (EFI)
|
1 |
disc.
|
| 19 |
13541 |
PLUG Male
|
3 |
|
| 2 |
82129114 |
SCREW (M6 x 14)
|
2 |
|
| 20 |
825433A11 |
HARNESS ASSEMBLY Ignition
|
1 |
|
| 21 |
828151A1 |
RELAY ASSEMBLY
|
2 |
superseded
|
| 22 |
818967 |
GROMMET
|
2 |
|
| 23 |
828102 |
BRACKET
|
2 |
superseded
|
| 24 |
818968 |
BUSHING
|
2 |
superseded
|
| 25 |
NSS |
NOT SOLD SEPARATE DECAL, Trim Relay
|
2 |
|
| 26 |
826802A2 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 27 |
88439A34 |
CABLE ASSEMBLY Positive - Battery
|
1 |
|
| 28 |
88439A24 |
CABLE ASSEMBLY Negative - Battery
|
1 |
|
| 29 |
827356A2 |
HARNESS ASSEMBLY (26 IN.)
|
1 |
|
| 3 |
827509T7 |
CDM MODULE ASSEMBLY
|
6 |
disc.
|
| 30 |
8216091 |
COVER
|
1 |
disc.
|
| 31 |
82239320 |
SCREW (M5 x 20)
|
3 |
|
| 32 |
812619 |
FUSE Yellow - 20 Ampere
|
1 |
|
| 33 |
19637 |
SOCKET Fuse
|
1 |
disc.
|
| 34 |
93388A8 |
CABLE ASSEMBLY (12.5 Inchs) Black
|
1 |
|
| 35 |
8212282 |
PLATE Solenoid Mounting
|
1 |
disc.
|
| 36 |
82155025 |
SCREW (M8 x 25 MM) Stainless Steel
|
3 |
|
| 37 |
82129125 |
SCREW (M6 x 25 MM)
|
4 |
|
| 38 |
88807A16 |
CABLE ASSEMBLY (4.00 Inches) Black
|
1 |
|
| 39 |
45915 |
TERMINAL BLOCK
|
1 |
|
| 4 |
857124A1 |
CABLE ASSEMBLY Hi-Tension
|
6 |
|
| 40 |
878608 |
SCREW (#10-16 x .500)
|
2 |
|
| 41 |
878607 |
SCREW (#10-16 x .375)
|
1 |
|
| 42 |
817109A2 |
SOLENOID ASSEMBLY (#10-32 / .3125-18 Terminals)
|
1 |
|
| 43 |
822179 |
GROMMET
|
2 |
|
| 44 |
818968 |
BUSHING
|
2 |
superseded
|
| 45 |
53166 |
LOCKWASHER (.312)
|
2 |
|
| 46 |
68292 |
NUT (.312-18)
|
2 |
superseded
|
| 47 |
45076 |
NUT (#10-32) Brass
|
2 |
|
| 5 |
857074A1 |
BOOT/TERMINAL KIT
|
6 |
|
| 6 |
82129116 |
SCREW (M6 x 16)
|
12 |
|
| 7 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 8 |
941 |
SPARK PLUG
|
6 |
|
| 9 |
81893435 |
SCREW (M8 x 35)
|
4 |
|
