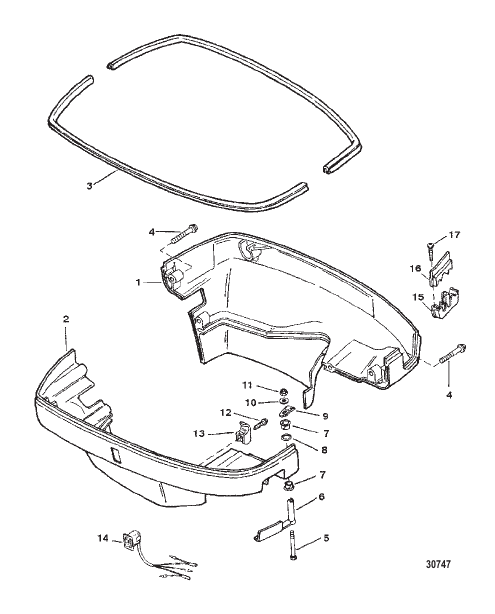

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 818448A1 | BOTTOM COWL (PORT) | 1 | disc. |
| 10 | 69057 | WASHER (.281 x .734 x .063) | 1 | |
| 11 | 401366 | NUT (M6) Stainless Steel | 1 | |
| 12 | 8214281 | SCREW (#10-16 x .625) | 1 | |
| 13 | 822873 | CLIP | 1 | |
| 14 | 856990 | SWITCH ASSEMBLY | 1 | superseded |
| 15 | 822024 | CLAMP | 1 | |
| 16 | 822023 | CLAMP | 1 | |
| 17 | 92799 | SCREW (#10-16 x 1.12) | 2 | |
| 2 | 818447A1 | BOTTOM COWL (STARBOARD) | 1 | disc. |
| 3 | 8253181 | SEAL Cowl (41.00 Inches) | 2 | superseded |
| 4 | 82130040 | SCREW (M6 x 40) | 4 | |
| 5 | 824868 | SCREW (M6 x 75) | 1 | |
| 6 | 821253F1 | FRONT HANDLE Black | 1 | superseded |
| 7 | 335891 | BUSHING | 2 | |
| 8 | 48462 | O-RING (.614 x .070) | 1 | |
| 9 | 8219423 | PAWL | 1 |
