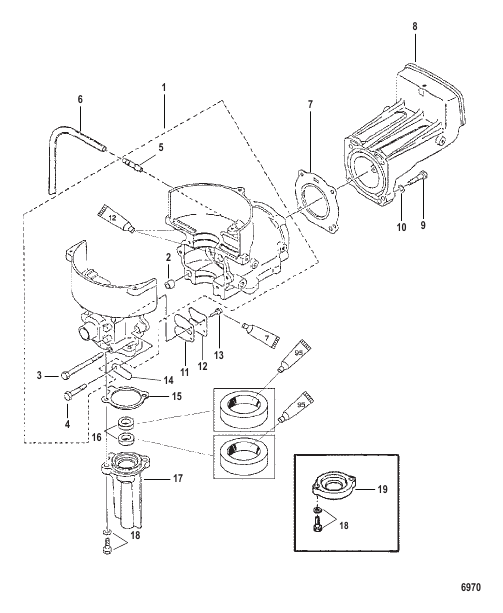

Cylinder Block
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 823825A3 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ 2 Horsepower POWERHEAD ASSEMBLY 2 Horsepower |
1 | superseded |
| - | 823825A3 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ 2.5 Horsepower POWERHEAD ASSEMBLY 2.5 Horsepower |
1 | superseded |
| - | 823825T2 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ 3.3 Horsepower POWERHEAD ASSEMBLY 3.3 Horsepower |
1 | superseded |
| - | 95220A5 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка 2/2.5 Horsepower [2B291661] & Below GASKET SET Powerhead 2/2.5 Horsepower [2B291661] & Below |
1 | superseded |
| - | 8M0203744 |
GASKET SET Powerhead 2/2.5 Horsepower [2B291662] & Up GASKET SET Powerhead 2/2.5 Horsepower [2B291662] & Up |
1 | |
| - | 815076A2 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка 3.3 Horsepower [2B291688] & Below GASKET SET Powerhead 3.3 Horsepower [2B291688] & Below |
1 | superseded |
| - | 8M0203729 |
GASKET SET Powerhead [2B291689] & Up GASKET SET Powerhead [2B291689] & Up |
1 | |
| 1 | 91512 |
БЛОК ЦИЛИНДРОВ / КАРТЕР 2 Horsepower CYLINDER BLOCK/CRANKCASE 2 Horsepower |
1 | |
| 1 | 91512 |
БЛОК ЦИЛИНДРОВ / КАРТЕР 2.5 Horsepower CYLINDER BLOCK/CRANKCASE 2.5 Horsepower |
1 | |
| 1 | 8228871 |
БЛОК ЦИЛИНДРОВ / КАРТЕР 3.3 Horsepower CYLINDER BLOCK/CRANKCASE 3.3 Horsepower |
1 | |
| 10 | 809931044 |
ШАЙБА WASHER |
4 | |
| 11 | 95226 |
ПЛАСТИНЧАТЫЕ КЛАПАНЫ REED VALVE |
1 | |
| 12 | 95304 |
СТОП STOP |
1 | discontinued |
| 13 | 16067 |
ВИНТ SCREW |
2 | |
| 14 | 813275 |
ЗАЖИМ CLAMP |
1 | |
| 15 | 822889 |
ПРОКЛАДКА 3.3 Horsepower GASKET 3.3 Horsepower |
1 | |
| 16 | 822891 |
УПЛОТНЕНИЕ Масло 3.3 Horsepower SEAL Oil 3.3 Horsepower |
2 | |
| 17 | 8228881 |
ГОЛОВКА 3.3 Horsepower HEAD 3.3 Horsepower |
1 | superseded |
| 18 | 82304231 |
БОЛТ BOLT |
2 | |
| 19 | 952251 |
ГОЛОВКА 2 Horsepower HEAD 2 Horsepower |
1 | discontinued |
| 19 | 952251 |
ГОЛОВКА 2.5 Horsepower HEAD 2.5 Horsepower |
1 | discontinued |
| 2 | 16119 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 3 | 166955 |
ВИНТ SCREW |
4 | superseded |
| 4 | 95298 |
БОЛТ BOLT |
2 | |
| 5 | 812960 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | superseded |
| 6 | 8129404 |
РУКАВ Резина (1 м) HOSE Rubber (1 Meter) |
1 | superseded |
| 7 | 95299 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 8 | 815062T2 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | |
| 9 | 815063 |
ВИНТ SCREW |
4 |
