| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813859A95 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 8343T15 |

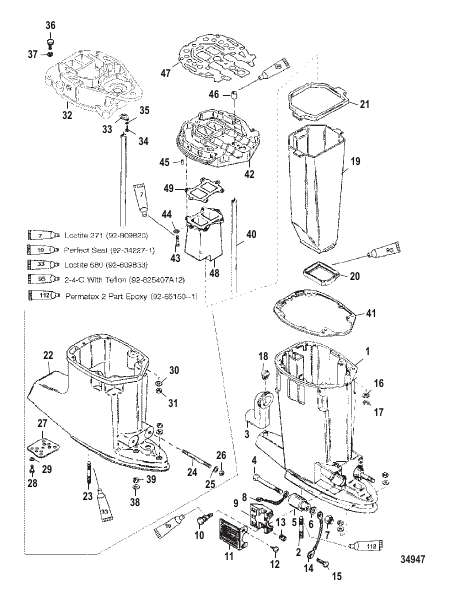

КОРПУС В СБОРЕ Карданный вал (LONG) HOUSING ASSEMBLY Driveshaft (LONG) |
1 | disc. |
| 10 | 66727 |
ВИНТ (0.312-18 x 1.250) (LONG) SCREW (.312-18 x 1.250) (LONG) |
4 | |
| 11 | 67077T |
КРЫШКА Черный (LONG) COVER Black (LONG) |
2 | superseded |
| 12 | 88417 |
ВИНТ (№12-24 x 0.620) (LONG) SCREW (#12-24 x .620) (LONG) |
4 | |
| 13 | 35521 |
ГАЙКА (LONG) NUT (LONG) |
4 | |
| 14 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление (LONG) CABLE ASSEMBLY Ground (LONG) |
1 | |
| 15 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь (LONG) SCREW (.250-20 x .500) Stainless Steel (LONG) |
1 | |
| 16 | 822838 |
ШАЙБА (0.401 x 0.745 x 0.097) (LONG) WASHER (.401 x .745 x .097) (LONG) |
10 | |
| 17 | 46335 |
ГАЙКА (.375-24) (LONG) NUT (.375-24) (LONG) |
10 | |
| 18 | 64649 |
ПРОБКА (LONG) PLUG (LONG) |
1 | |
| 19 | 18276 |
ТРУБА Выхлоп (LONG) TUBE Exhaust (LONG) |
1 | superseded |
| 2 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) (LONG) STUD (.437-14/.437-20 x 2.812) (LONG) |
2 | |
| 20 | 66350 |
УПЛОТНЕНИЕ (LOWER) (LONG) SEAL (LOWER) (LONG) |
1 | superseded |
| 21 | 177261 |
УПЛОТНЕНИЕ (UPPER) (LONG) SEAL (UPPER) (LONG) |
1 | superseded |
| 22 | 818900T8 |
КОРПУС Карданный вал (SHORT) HOUSING Driveshaft (SHORT) |
1 | superseded |
| 23 | 59579 |
ШПИЛЬКА (0.437-14/0.437-20 x 2.812) (SHORT) STUD (.437-14/.437-20 x 2.812) (SHORT) |
2 | |
| 24 | 818908 |
ШПИЛЬКА (0.500-13/0.500-20 x 4.120) (SHORT) STUD (.500-13/.500-20 x 4.120) (SHORT) |
2 | |
| 25 | 816056 |
ШАЙБА (SHORT) WASHER (SHORT) |
2 | |
| 26 | 28040 |
ГАЙКА (.500-20) (SHORT) NUT (.500-20) (SHORT) |
2 | superseded |
| 27 | 818909 |
ПЛАСТИНА Блокировка выхлопа (SHORT) PLATE Exhaust Blockoff (SHORT) |
1 | |
| 28 | 39349 |
ВИНТ (0.312-18 x 0.750), нержавеющая сталь (SHORT) SCREW (.312-18 x .750) Stainless Steel (SHORT) |
1 | |
| 29 | 847539 |
ШАЙБА (SHORT) WASHER (SHORT) |
1 | |
| 3 | 849330 |
ЧЕХОЛ Выхлоп холостого хода (LONG) BOOT Idle Exhaust (LONG) |
1 | disc. |
| 30 | 822838 |
ШАЙБА (0.401 x 0.745 x 0.097) (SHORT) WASHER (.401 x .745 x .097) (SHORT) |
10 | |
| 31 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь (THIN)(SHORT) NUT (.375-24) Stainless Steel (THIN)(SHORT) |
2 | superseded |
| 31 | 34932 |
ГАЙКА (.375-24) (THICK)(SHORT) NUT (.375-24) (THICK)(SHORT) |
8 | superseded |
| 32 | 848284T11 |
ПЛАСТИНА В СБОРЕ Удлинитель – выхлоп (SHORT) PLATE ASSEMBLY Extension - Exhaust (SHORT) |
1 | disc. |
| 33 | 8476581 |
ФИКСАТОР (SHORT) RETAINER (SHORT) |
1 | |
| 34 | 28635 |
ВИНТ (0.250-20 x 0.620), нержавеющая сталь (SHORT) SCREW (.250-20 x .620) Stainless Steel (SHORT) |
1 | |
| 35 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь (SHORT) LOCKWASHER (.250) Stainless Steel (SHORT) |
1 | |
| 36 | 91903 |
ВИНТ (0.437-14 x 1.750) (SHORT) SCREW (.437-14 x 1.750) (SHORT) |
3 | |
| 37 | 822836 |
ШАЙБА (0.445 x 0.805 x 0.108) (SHORT) WASHER (.445 x .805 x .108) (SHORT) |
3 | |
| 38 | 822836 |
ШАЙБА (0.445 x 0.805 x 0.108) WASHER (.445 x .805 x .108) |
3 | |
| 39 | 134391 |
ГАЙКА (0.4375-20) NUT (.4375-20) |
3 | superseded |
| 4 | 63474 |
ВИНТ (0.500-20 x 6.00) (LONG) SCREW (.500-20 x 6.00) (LONG) |
2 | superseded |
| 40 | 8476503 |
ТРУБА Вода (SHORT) TUBE Water (SHORT) |
1 | |
| 40 | 67295 |
ТРУБА Вода (LONG) TUBE Water (LONG) |
1 | superseded |
| 41 | 991734 |
ПРОКЛАДКА (LONG) GASKET (LONG) |
1 | |
| 42 | 18233A5 |
ПЛАСТИНА В СБОРЕ (LONG) PLATE ASSEMBLY (LONG) |
1 | disc. |
| 43 | 90192 |
ВИНТ (0.250-20 x 0.750), нержавеющая сталь (LONG) SCREW (.250-20 x .750) Stainless Steel (LONG) |
6 | |
| 43 | 823258 |
ВИНТ (0.312-18 x 1.250) (.312-18 X 1-1/4) (SHORT) SCREW (.312-18 x 1.250) (.312-18 X 1-1/4) (SHORT) |
6 | |
| 44 | 822714 |
ШАЙБА (SHORT) WASHER (SHORT) |
6 | |
| 45 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 | |
| 45 | 823106 |
ШТИФТ Штифт (0.875) PIN Dowel (.875) |
2 | superseded |
| 46 | 88397 |
УПЛОТНЕНИЕ (SHORT) SEAL (SHORT) |
1 | |
| 46 | 38970 |
УПЛОТНЕНИЕ (LONG) SEAL (LONG) |
1 | |
| 47 | 183074 |
ПРОКЛАДКА (LONG) GASKET (LONG) |
1 | |
| 48 | 848545T1 |
УДЛИНИТЕЛЬ Выхлоп (SHORT) EXTENSION Exhaust (SHORT) |
1 | |
| 48 | 41942F3 |
УДЛИНИТЕЛЬ Выхлоп (LONG) EXTENSION Exhaust (LONG) |
1 | superseded |
| 49 | 782461 |
ПРОКЛАДКА (LONG) GASKET (LONG) |
1 | |
| 5 | 816054T1 |
КРЕПЛЕНИЕ Нижняя часть (LONG) MOUNT Lower (LONG) |
2 | disc. |
| 6 | 816056 |
ШАЙБА (LONG) WASHER (LONG) |
4 | |
| 7 | 82670817 |
ГАЙКА (.500-20) (LONG) NUT (.500-20) (LONG) |
2 | superseded |
| 8 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление (LONG) CABLE ASSEMBLY Ground (LONG) |
1 | |
| 9 | 67076 |
ЗАЖИМ (LONG) CLAMP (LONG) |
2 | superseded |
