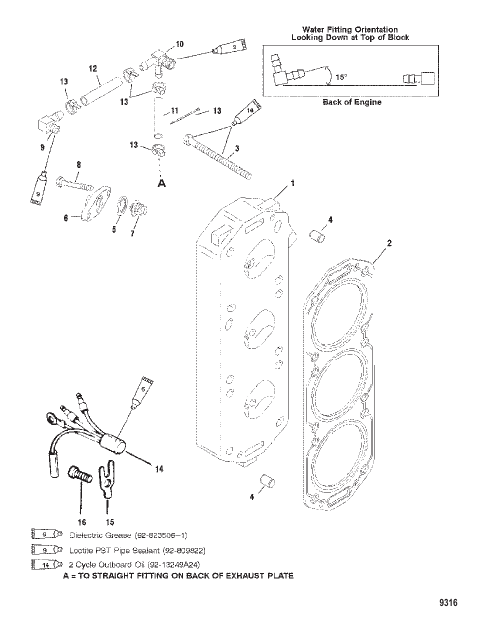

Cylinder Head
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814754A98 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| - | 804545T99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0G886267] & Up POWERHEAD ASSEMBLY [0G886267] & Up |
1 | discontinued |
| - | 854008T99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0G886266] & Below POWERHEAD ASSEMBLY [0G886266] & Below |
1 | superseded |
| 1 | 852380T1 |
ГОЛОВКА ЦИЛИНДРА (PORT) CYLINDER HEAD (PORT) |
1 | discontinued |
| 1 | 852381T1 |
ГОЛОВКА ЦИЛИНДРА (STARBOARD) CYLINDER HEAD (STARBOARD) |
1 | discontinued |
| 10 | 68728 |
ФИТИНГ (Port) FITTING (Port) |
1 | discontinued |
| 11 | 77653101 |
РУКАВ (Общая длина 48.00") (Cut to 21-1/2 Inches) HOSE (48.00 Inches Bulk) (Cut to 21-1/2 Inches) |
1 | |
| 12 | 77653101 |
РУКАВ (Общая длина 48.00") (Cut to 11-1/2 Inches) HOSE (48.00 Inches Bulk) (Cut to 11-1/2 Inches) |
1 | |
| 13 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
5 | superseded |
| 14 | 13536A14 |
ДАТЧИК В СБОРЕ Температура (Starboard) SENSOR ASSEMBLY Temperature (Starboard) |
1 | |
| 15 | 137151 |
ФИКСАТОР RETAINER |
1 | |
| 16 | 81893412 |
ВИНТ (M8 x 12) SCREW (M8 x 12) |
1 | |
| 2 | 8525203 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 3 | 832971 |
ВИНТ (0.375-16 x 3.00) SCREW (.375-16 x 3.00) |
24 | |
| 4 | 74840 |
ШТИФТ Штифт PIN Dowel |
4 | discontinued |
| 5 | 62386 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 6 | 8307371 |
КРЫШКА COVER |
2 | superseded |
| 7 | 833072 |
ТЕРМОСТАТ 62° Цельсия (143° Фаренгейта) THERMOSTAT 62° Celsius (143° Fahrenheit) |
2 | superseded |
| 8 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
4 | |
| 9 | 687271 |
ФИТИНГ (0.250-18), 90 градусов – латунь (Starboard) FITTING (.250-18) 90 Degree - Brass (Starboard) |
1 |
