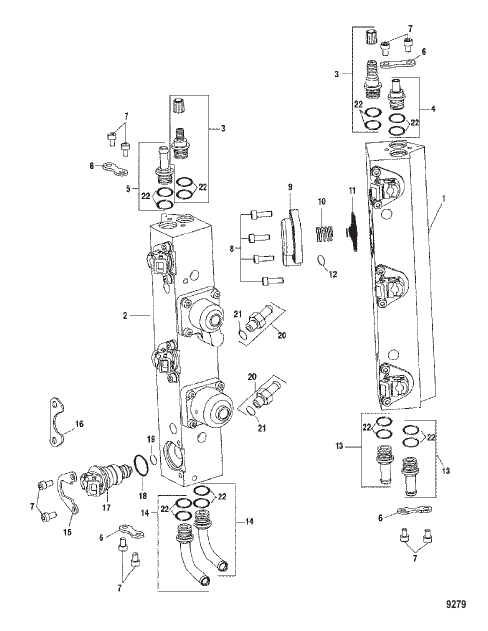

Fuel Rail Components
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 804512 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Без форсунок (Starboard) FUEL RAIL Without Injectors (Starboard) |
1 | superseded |
| 10 | 804534 |
ПРУЖИНА (TRACKER VALVE) SPRING (TRACKER VALVE) |
1 | |
| 11 | 804533 |
ДИАФРАГМА В СБОРЕ (TRACKER VALVE) DIAPHRAGM ASSEMBLY (TRACKER VALVE) |
1 | |
| 12 | 804536 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (TRACKER COVER) O-RING (TRACKER COVER) |
1 | |
| 13 | 804520 |
ФИТИНГ (AIR/FUEL) STARBOARD FITTING (AIR/FUEL) STARBOARD |
2 | discontinued |
| 14 | 804519 |
ФИТИНГ (AIR/FUEL) PORT FITTING (AIR/FUEL) PORT |
2 | discontinued |
| 15 | 804522 |
ЗАЖИМ (INJECTOR) DESIGN II CLAMP (INJECTOR) DESIGN II |
6 | discontinued |
| 16 | 804523 |
ФИКСАТОР (INJECTOR) DESIGN I RETAINER (INJECTOR) DESIGN I |
6 | discontinued |
| 17 | 804527 |
ФОРСУНКА (FUEL) INJECTOR (FUEL) |
6 | |
| 18 | 804530 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА Содержит 6 шт. (LARGE) 6 PER KIT O-RING KIT Contains 6 pcs (LARGE) 6 PER KIT |
1 | |
| 19 | 804529 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА Содержит 6 шт. (SMALL) 6 PER KIT O-RING KIT Contains 6 pcs (SMALL) 6 PER KIT |
1 | |
| 2 | 804511 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ Без форсунок (Port) FUEL RAIL Without Injectors (Port) |
1 | superseded |
| 20 | 804517 |
ФИТИНГ FITTING |
2 | discontinued |
| 21 | 804531 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2 PER KIT) O-RING (2 PER KIT) |
1 | discontinued |
| 22 | 804532 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНОГО КОЛЬЦА (16 PER KIT) O-RING KIT (16 PER KIT) |
1 | |
| 3 | 804521 |
КОМПЛЕКТ КЛАПАНА ШРЕЙДЕРА (AIR AND FUEL) SCHRADER VALVE KIT (AIR AND FUEL) |
2 | discontinued |
| 4 | 804516 |
ФИТИНГ (AIR INLET) FITTING (AIR INLET) |
1 | discontinued |
| 5 | 804515 |
ФИТИНГ (FUEL INLET) FITTING (FUEL INLET) |
1 | discontinued |
| 6 | 804524 |
ЗАЖИМ (FITTING RETAINER) CLAMP (FITTING RETAINER) |
4 | discontinued |
| 7 | 804525 |
УПАКОВКА ВИНТОВ (M5 x 8) (2 шт.) SCREW PACKAGE (M5 x 8) (2 Per) |
10 | superseded |
| 8 | 804526 |
УПАКОВКА ВИНТОВ (M5 x 16) (2 шт.) SCREW PACKAGE (M5 x 16) (2 Per) |
4 | |
| 9 | 804535 |
КРЫШКА (TRACKER VALVE) COVER (TRACKER VALVE) |
1 | superseded |
