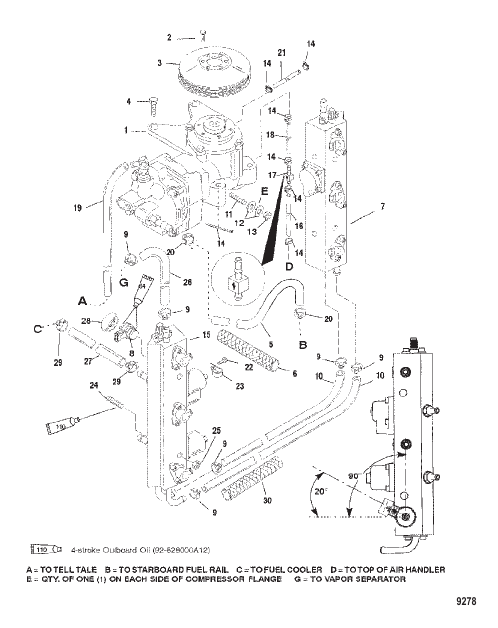

Fuel Rails
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 804545T99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0G886267] & Up POWERHEAD ASSEMBLY [0G886267] & Up |
1 | discontinued |
| - | 854008T99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ [0G886266] & Below POWERHEAD ASSEMBLY [0G886266] & Below |
1 | superseded |
| 1 | 831998A13 |
КОМПРЕССОР В СБОРЕ Воздух COMPRESSOR ASSEMBLY Air |
1 | superseded |
| 10 | 85564361 |
РУКАВ (16 IN.) HOSE (16 IN.) |
2 | discontinued |
| 11 | 858762 |
ШПИЛЬКА (0.312-18/0.312-24 x 4.190) STUD (.312-18/.312-24 x 4.190) |
1 | superseded |
| 12 | 854640 |
ШАЙБА Специальный WASHER Special |
2 | |
| 13 | 35814 |
ГАЙКА (0.312-24), нержавеющая сталь NUT (.312-24) Stainless Steel |
1 | superseded |
| 14 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
8 | superseded |
| 15 | 852378T6 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ (Port) FUEL RAIL (Port) |
1 | discontinued |
| 16 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 22-1/2 Inches) HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches) |
1 | superseded |
| 17 | 826810 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 18 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 2-1/2 Inches) TUBING (.312) (70.00 Inches Bulk) (Cut to 2-1/2 Inches) |
1 | superseded |
| 19 | 83476463 |
ТРУБОПРОВОД (Общая длина 32.00") (Cut to 28-1/2 Inches) TUBING (32.00 Inches Bulk) (Cut to 28-1/2 Inches) |
1 | |
| 2 | 85593912 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
5 | |
| 20 | 856880 |
ЗАЖИМ Шланг (15.3) CLAMP Hose (15.3) |
2 | superseded |
| 21 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 28-1/2 Inches) TUBING (36.00 Inches Bulk) (Cut to 28-1/2 Inches) |
1 | superseded |
| 22 | 82104510 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
4 | |
| 23 | 46997 |
ЗАЖИМ CLAMP |
4 | discontinued |
| 24 | 858778 |
ШПИЛЬКА (M10 x 91) STUD (M10 x 91) |
4 | superseded |
| 25 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
4 | |
| 26 | 856822A3 |
РУКАВ (30 IN.) (W/INSULATING SLEEVE) HOSE (30 IN.) (W/INSULATING SLEEVE) |
1 | |
| 27 | 855848A1 |
РУКАВ (W/INSULATING SLEEVE) HOSE (W/INSULATING SLEEVE) |
1 | discontinued |
| 28 | 828694A1 |
ШАЙБА В СБОРЕ С колпачком WASHER ASSEMBLY Cupped |
6 | |
| 29 | 856880 |
ЗАЖИМ Шланг (15.3) CLAMP Hose (15.3) |
4 | superseded |
| 3 | 8328231 |
ШКИВ PULLEY |
1 | superseded |
| 30 | 85686953 |
РУКАВ (Общая длина 27.00") (Cut to 18 Inches) SLEEVE (27.00 Inches Bulk) (Cut to 18 Inches) |
1 | discontinued |
| 4 | 4010825 |
ВИНТ Шестигранный фланец (M10 x 25), нержавеющая сталь SCREW (M10 x 25) Hex Flange - Stainless Steel |
2 | |
| 5 | 8502512 |
РУКАВ HOSE |
1 | |
| 6 | 85687631 |
РУКАВ (16.00") SLEEVE (16.00 Inches) |
1 | |
| 7 | 852379T6 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ (Starboard) FUEL RAIL (Starboard) |
1 | discontinued |
| 8 | 850065A5 |
ФОРСУНКА INJECTOR |
6 | superseded |
| 9 | 855697 |
ЗАЖИМ CLAMP |
4 | superseded |
