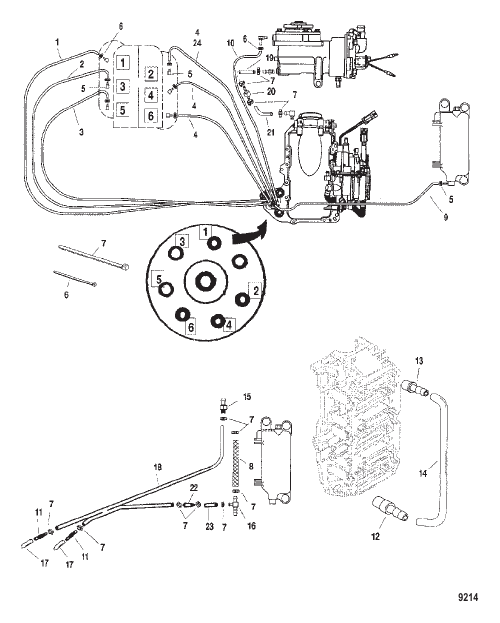

Oil Lines
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 854008T00 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 24 Inches) TUBING (36.00 Inches Bulk) (Cut to 24 Inches) |
1 | superseded |
| 10 | 85583463 |
ТРУБОПРОВОД (Общая длина 33.00") (Cut to 32 Inches) TUBING (33.00 Inches Bulk) (Cut to 32 Inches) |
1 | superseded |
| 11 | 858955 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | |
| 12 | 426981 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 13 | 426231 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 14 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (Cut to 19 Inches) TUBING (20.00 Feet Bulk) (Cut to 19 Inches) |
1 | superseded |
| 15 | 432783 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 16 | 424254 |
ФИТИНГ FITTING |
1 | superseded |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Cap NOT SOLD SEPARATE Cap |
2 | |
| 18 | 875289 |
РУКАВ HOSE |
1 | |
| 19 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 22-1/2 Inches) HOSE (57.00 Inches Bulk) (Cut to 22-1/2 Inches) |
1 | superseded |
| 2 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 18-1/2 Inches) TUBING (36.00 Inches Bulk) (Cut to 18-1/2 Inches) |
1 | superseded |
| 20 | 826810 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 21 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 2-1/2 Inches) TUBING (.312) (70.00 Inches Bulk) (Cut to 2-1/2 Inches) |
1 | superseded |
| 22 | 875284 |
ФИЛЬТР Однорядный FILTER In Line |
1 | superseded |
| 23 | 875283 |
РУКАВ (2.00") HOSE (2.00 Inches) |
1 | |
| 24 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 27 Inches) [0T149502] & Up TUBING (36.00 Inches Bulk) (Cut to 27 Inches) [0T149502] & Up |
1 | superseded |
| 3 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 15-1/2 Inches) TUBING (36.00 Inches Bulk) (Cut to 15-1/2 Inches) |
1 | superseded |
| 4 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 24-1/2 Inches) [05149501] & Below TUBING (36.00 Inches Bulk) (Cut to 24-1/2 Inches) [05149501] & Below |
3 | superseded |
| 4 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") (Cut to 24-1/2 Inches) [0T149502] & Up TUBING (36.00 Inches Bulk) (Cut to 24-1/2 Inches) [0T149502] & Up |
2 | superseded |
| 5 | 858805 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
6 | |
| 6 | 69355 |
ЛЕНТОЧНЫЙ ХОМУТ (5.50") TIE STRAP (5.50 Inches) |
AR | superseded |
| 7 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 8 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 6 Inches) HOSE (57.00 Inches Bulk) (Cut to 6 Inches) |
1 | superseded |
| 9 | 82381455 |
ТРУБОПРОВОД (Общая длина 25.00") (Cut to 24 Inches) TUBING (25.00 Inches Bulk) (Cut to 24 Inches) |
1 |
