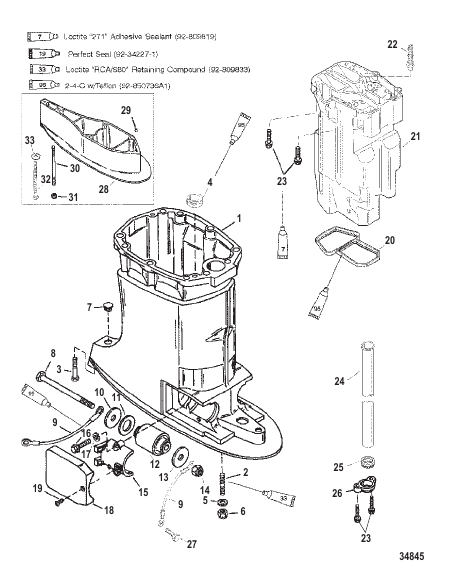

Driveshaft Housing and Exhaust Tube
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832937A1 |
КОРПУС В СБОРЕ Карданный вал (LONG) HOUSING ASSEMBLY Driveshaft (LONG) |
1 | superseded |
| 1 | 832938A5 |
КОРПУС В СБОРЕ Карданный вал (X-LONG) HOUSING ASSEMBLY Driveshaft (X-LONG) |
1 | superseded |
| 10 | 815432 |
ШАЙБА (0.562 x 2.00 x 0.125) WASHER (.562 x 2.00 x .125) |
2 | |
| 11 | 8154331 |
ШАЙБА (1.25 x 2.00 x 0.19) WASHER (1.25 x 2.00 x .19) |
2 | |
| 12 | 8137711 |
КРЕПЛЕНИЕ MOUNT |
2 | |
| 13 | 825190 |
ШАЙБА WASHER |
2 | |
| 14 | 815434 |
ГАЙКА NUT |
2 | superseded |
| 15 | 8186442 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 16 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
4 | |
| 17 | 72521 |
СТОПОРНАЯ ШАЙБА Внутренние зубья LOCKWASHER Internal Tooth |
1 | |
| 18 | 818645F1 |
КРЫШКА Черный COVER Black |
2 | superseded |
| 19 | 69079 |
ВИНТ (№10-16 x 0.440) SCREW (#10-16 x .440) |
2 | |
| 2 | 856983 |
ШПИЛЬКА (M12 x 52) LONG/X-LONG STUD (M12 x 52) LONG/X-LONG |
4 | superseded |
| 20 | 8329321 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 21 | 833116A4 |
ТРУБА В СБОРЕ Выхлоп TUBE ASSEMBLY Exhaust |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Strainer NOT SOLD SEPARATE Strainer |
1 | |
| 23 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
6 | |
| 24 | 8329411 |
ТРУБА Вода LONG TUBE Water LONG |
1 | superseded |
| 24 | 8329412 |
ТРУБА Вода X-LONG TUBE Water X-LONG |
1 | superseded |
| 24 | 8329413 |
ТРУБА Вода XX-LONG TUBE Water XX-LONG |
1 | superseded |
| 25 | 832940 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 26 | 8329391 |
ЗАЖИМ CLAMP |
1 | |
| 27 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 28 | 823979T1 |
ПРОСТАВКА XX-LONG SPACER XX-LONG |
1 | superseded |
| 29 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) XX-LONG PIN Dowel - Without Hole (.375 x .625) XX-LONG |
2 | |
| 3 | 82130130 |
ВИНТ (M10 x 30) LONG/X-LONG SCREW (M10 x 30) LONG/X-LONG |
1 | |
| 3 | 857136 |
ВИНТ (M12 x 35 мм) LONG/X-LONG SCREW (M12 x 35 MM) LONG/X-LONG |
1 | |
| 30 | 857009 |
ШПИЛЬКА (M12 x 179) XX-LONG STUD (M12 x 179) XX-LONG |
4 | superseded |
| 30 | 824118 |
ШПИЛЬКА (M10 X 1.5 X 173) XX-LONG STUD (M10 X 1.5 X 173) XX-LONG |
1 | discontinued |
| 31 | 400636 |
ГАЙКА (M10 X 1.5) (USE W/M10 X 1.5 X 173 STUD XX-LONG NUT (M10 X 1.5) (USE W/M10 X 1.5 X 173 STUD XX-LONG |
1 | |
| 32 | 857137 |
ВИНТ (M12 x 160) XX-LONG SCREW (M12 x 160) XX-LONG |
1 | |
| 33 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь XX-LONG WASHER (.500 x .810 x .090) Stainless Steel XX-LONG |
1 | |
| 4 | 8331231 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 5 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
4 | |
| 6 | 857008 |
ГАЙКА (M12 x 1.75) NUT (M12 x 1.75) |
4 | superseded |
| 7 | 64649 |
ПРОБКА PLUG |
1 | |
| 8 | 815431 |
ВИНТ (M14 x 178) SCREW (M14 x 178) |
2 | superseded |
| 9 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
2 |
