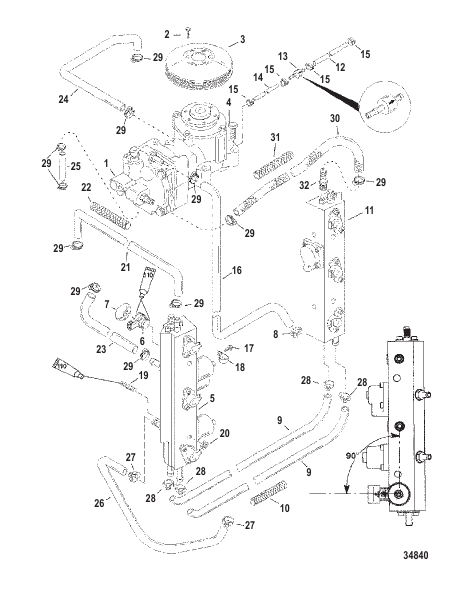

Fuel Rails
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 854198A99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | discontinued |
| - | 854199A99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (225) POWERHEAD ASSEMBLY (225) |
1 | discontinued |
| 1 | 828123A9 |
КОМПРЕССОР В СБОРЕ Воздух [0G911719] & Below COMPRESSOR ASSEMBLY Air [0G911719] & Below |
1 | superseded |
| 1 | 828123A14 |
КОМПРЕССОР В СБОРЕ Воздух [0G911720] & Up COMPRESSOR ASSEMBLY Air [0G911720] & Up |
1 | superseded |
| 10 | 85686953 |
РУКАВ (Общая длина 27.00") SLEEVE (27.00 Inches Bulk) |
1 | discontinued |
| 11 | 852395T5 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ (STARBOARD) FUEL RAIL (STARBOARD) |
1 | discontinued |
| 12 | 830756109 |
РУКАВ (Общая длина 57.00") (4-1/2 IN.) To Air Handler HOSE (57.00 Inches Bulk) (4-1/2 IN.) To Air Handler |
1 | superseded |
| 13 | 826810 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 14 | 85682923 |
ТРУБОПРОВОД (9 IN.) TUBING (9 IN.) |
1 | superseded |
| 15 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
4 | superseded |
| 16 | 856839 |
ТРУБОПРОВОД To Tell Tale TUBING To Tell Tale |
1 | |
| 17 | 82104510 |
ВИНТ (M5 x 10) SCREW (M5 x 10) |
4 | |
| 18 | 46997 |
ЗАЖИМ CLAMP |
4 | discontinued |
| 19 | 858778 |
ШПИЛЬКА (M10 x 91) STUD (M10 x 91) |
4 | superseded |
| 2 | 85593912 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
5 | |
| 20 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием NUT (M10) Brass/Nickel Plated |
4 | |
| 21 | 8568302 |
РУКАВ Fuel Supply - To Vapor Separator HOSE Fuel Supply - To Vapor Separator |
1 | superseded |
| 22 | 85686953 |
РУКАВ (Общая длина 27.00") SLEEVE (27.00 Inches Bulk) |
1 | discontinued |
| 23 | 85466755 |
РУКАВ (2 IN.) Fuel Return - To Fuel Cooler HOSE (2 IN.) Fuel Return - To Fuel Cooler |
1 | discontinued |
| 24 | 8568201 |
РУКАВ To Strainer in top of Block [0G911719] & Below HOSE To Strainer in top of Block [0G911719] & Below |
1 | discontinued |
| 25 | 85833935 |
ТРУБОПРОВОД (Общая длина 15.00") To Fuel Cooler [0G911720] & Up TUBING (15.00 Inches Bulk) To Fuel Cooler [0G911720] & Up |
1 | superseded |
| 26 | 856952 |
ТРУБОПРОВОД Air Dump - To Adaptor Plate TUBING Air Dump - To Adaptor Plate |
1 | discontinued |
| 27 | 850241 |
ЗАЖИМ (14.0) CLAMP (14.0) |
2 | |
| 28 | 855697 |
ЗАЖИМ CLAMP |
4 | superseded |
| 29 | 856880 |
ЗАЖИМ Шланг (15.3) CLAMP Hose (15.3) |
9 | superseded |
| 3 | 8328231 |
ШКИВ PULLEY |
1 | superseded |
| 30 | 8567631 |
ШЛАНГ В СБОРЕ HOSE ASSEMBLY |
1 | |
| 31 | 85687631 |
РУКАВ (16.00") SLEEVE (16.00 Inches) |
1 | |
| 32 | 8567411 |
ФИТИНГ FITTING |
1 | discontinued |
| 4 | 81893450 |
ВИНТ (M8 x 50) SCREW (M8 x 50) |
4 | |
| 5 | 852394T5 |
ТОПЛИВНАЯ НАПРАВЛЯЮЩАЯ (PORT) FUEL RAIL (PORT) |
1 | discontinued |
| 6 | 850065A5 |
ФОРСУНКА INJECTOR |
6 | superseded |
| 7 | 828694A1 |
ШАЙБА В СБОРЕ С колпачком WASHER ASSEMBLY Cupped |
6 | |
| 8 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | superseded |
| 9 | 8525122 |
РУКАВ FUEL/AIR BALANCE HOSE FUEL/AIR BALANCE |
2 | superseded |
