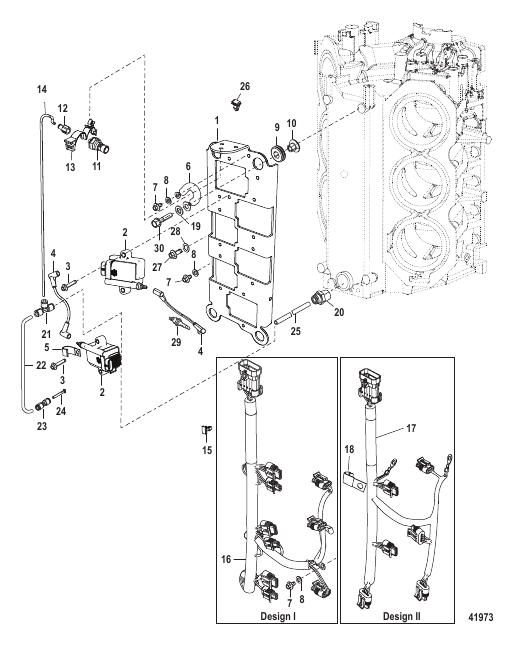

Coil Plate
Parts (37)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 854839T02 |
ЖГУТ ПРОВОДОВ В СБОРЕ 5-конт. HARNESS ASSEMBLY 5 Pin |
1 | superseded |
| 1 | 884272T |
ПЛАСТИНА Крепление катушки PLATE Coil Mounting |
1 | |
| 10 | 8502341 |
ВТУЛКА BUSHING |
4 | |
| 11 | 881879A7 |
КОМПЛЕКТ ДАТЧИКА (0-50 фунт./кв. дюйм) SENSOR KIT (0-50 PSI) |
1 | superseded |
| 12 | 892403 |
ФИТИНГ FITTING |
1 | superseded |
| 13 | 883066 |
ЗАЖИМ (0.865) CLIP (.865) |
1 | |
| 14 | 85978571 |
ТРУБОПРОВОД (Общая длина 52.00") Cut to 18 Inches TUBING (52.00 Inches Bulk) Cut to 18 Inches |
1 | |
| 15 | 879962 |
ЗАЖИМ CLIP |
1 | |
| 16 | 892972T04 |
ЖГУТ ПРОВОДОВ В СБОРЕ Катушка (Design I) (200/225/200 Pro XS) [1B766792] & Below HARNESS ASSEMBLY Coil (Design I) (200/225/200 Pro XS) [1B766792] & Below |
1 | discontinued |
| 16 | 892972T04 |
ЖГУТ ПРОВОДОВ В СБОРЕ Катушка (Design I) (250) [1B757090] & Below HARNESS ASSEMBLY Coil (Design I) (250) [1B757090] & Below |
1 | discontinued |
| 17 | 892972T05 |
ЖГУТ ПРОВОДОВ В СБОРЕ Катушка (Design I) (200/225/200 Pro XS) [1B766793] & Up HARNESS ASSEMBLY Coil (Design I) (200/225/200 Pro XS) [1B766793] & Up |
1 | |
| 17 | 892972T05 |
ЖГУТ ПРОВОДОВ В СБОРЕ Катушка (Design II) (250) [1B757091] & Up HARNESS ASSEMBLY Coil (Design II) (250) [1B757091] & Up |
1 | |
| 18 | 54457 |
J-ЗАЖИМ (Design II) (200/225/200 Pro XS) [1B766793] & Up J CLIP (Design II) (200/225/200 Pro XS) [1B766793] & Up |
5 | |
| 18 | 54457 |
J-ЗАЖИМ (Design II) (250) [1B757091] & Up J CLIP (Design II) (250) [1B757091] & Up |
5 | |
| 19 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
4 | |
| 2 | 883778A01 |
КАТУШКА В СБОРЕ Зажигание 200/225/200 Pro XS COIL ASSEMBLY Ignition 200/225/200 Pro XS |
6 | superseded |
| 2 | 879984T00 |
КАТУШКА Зажигание 250 COIL Ignition 250 |
6 | superseded |
| 20 | 881866 |
ФИТИНГ FITTING |
1 | |
| 21 | 875207 |
ТРОЙНИК Фитинг TEE Fitting |
1 | |
| 22 | 85978571 |
ТРУБОПРОВОД (Общая длина 52.00") Cut to 44 Inches TUBING (52.00 Inches Bulk) Cut to 44 Inches |
1 | |
| 23 | 859747 |
МУФТА COUPLER |
1 | superseded |
| 24 | 859732 |
ПРОБКА PLUG |
1 | |
| 25 | 85978571 |
ТРУБОПРОВОД (Общая длина 52.00") Cut to 5 Inches TUBING (52.00 Inches Bulk) Cut to 5 Inches |
1 | |
| 26 | 879962 |
ЗАЖИМ CLIP |
1 | |
| 27 | 82129114 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
2 | |
| 28 | 36001 |
ШАЙБА WASHER |
2 | |
| 29 | 889597001 |
СВЕЧА ЗАЖИГАНИЯ 200/225/200 Pro XS SPARK PLUG 200/225/200 Pro XS |
6 | superseded |
| 29 | 843220001 |
СВЕЧА ЗАЖИГАНИЯ 250 SPARK PLUG 250 |
6 | superseded |
| 3 | 82129125 |
ВИНТ (M6 x 25 мм) 200/225/200 Pro XS SCREW (M6 x 25 MM) 200/225/200 Pro XS |
12 | |
| 3 | 82129130 |
ВИНТ (M6 x 30) 250 SCREW (M6 x 30) 250 |
12 | |
| 30 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
4 | |
| 4 | 881908T |
КОМПЛЕКТ КАБЕЛЕЙ CABLE SET |
1 | |
| 5 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 6 | 858414A1 |
КАБЕЛЬ В СБОРЕ В оплетке CABLE ASSEMBLY Braided |
2 | |
| 7 | 82129110 |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
4 | |
| 8 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
| 9 | 833155 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 |
