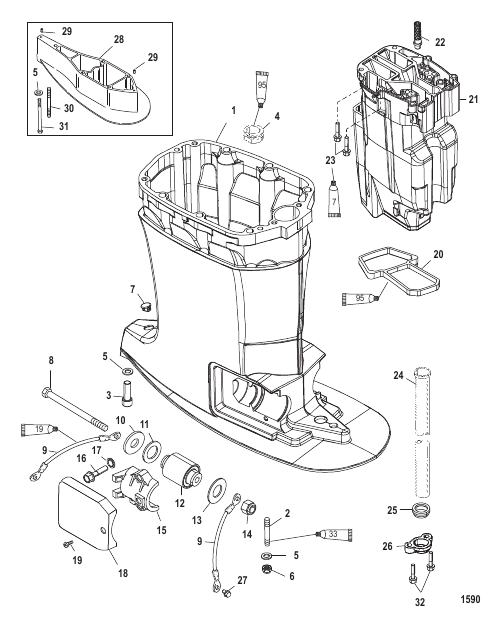

DRIVESHAFT HOUSING & EXHAUST TUBE
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 832937A3 |
КОРПУС В СБОРЕ Карданный вал (LONG) HOUSING ASSEMBLY Driveshaft (LONG) |
1 | superseded |
| 1 | 832938A5 |
КОРПУС В СБОРЕ Карданный вал (X/XX-LONG) HOUSING ASSEMBLY Driveshaft (X/XX-LONG) |
1 | superseded |
| 10 | 815432 |
ШАЙБА (0.562 x 2.00 x 0.125) WASHER (.562 x 2.00 x .125) |
2 | |
| 11 | 8154331 |
ШАЙБА (1.25 x 2.00 x 0.19) WASHER (1.25 x 2.00 x .19) |
2 | |
| 12 | 8137711 |
КРЕПЛЕНИЕ MOUNT |
2 | |
| 13 | 825190 |
ШАЙБА WASHER |
2 | |
| 14 | 815434 |
ГАЙКА NUT |
2 | superseded |
| 15 | 8186442 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 16 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
4 | |
| 17 | 72521 |
СТОПОРНАЯ ШАЙБА Внутренние зубья LOCKWASHER Internal Tooth |
1 | |
| 18 | 818645F1 |
КРЫШКА Черный COVER Black |
2 | superseded |
| 19 | 69079 |
ВИНТ (№10-16 x 0.440) SCREW (#10-16 x .440) |
2 | |
| 2 | 856983 |
ШПИЛЬКА (M12 x 52) (LONG/X-LONG) STUD (M12 x 52) (LONG/X-LONG) |
4 | superseded |
| 20 | 8329321 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 21 | 833116A4 |
ТРУБА В СБОРЕ Выхлоп TUBE ASSEMBLY Exhaust |
1 | |
| 22 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Strainer NOT SOLD SEPARATE Strainer |
1 | |
| 23 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
6 | |
| 24 | 8329417 |
ТРУБА Вода (LONG) TUBE Water (LONG) |
1 | superseded |
| 24 | 8329418 |
ТРУБА Вода (X-LONG) TUBE Water (X-LONG) |
1 | superseded |
| 24 | 8329419 |
ТРУБА Вода (XX-LONG) TUBE Water (XX-LONG) |
1 | superseded |
| 25 | 832940 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 26 | 8329391 |
ЗАЖИМ CLAMP |
1 | |
| 27 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 28 | 823979T1 |
ПРОСТАВКА (XX-LONG) SPACER (XX-LONG) |
1 | superseded |
| 29 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) (XX-LONG) PIN Dowel - Without Hole (.375 x .625) (XX-LONG) |
2 | |
| 3 | 857136 |
ВИНТ (M12 x 35 мм) (LONG/X-LONG) SCREW (M12 x 35 MM) (LONG/X-LONG) |
1 | |
| 30 | 857009 |
ШПИЛЬКА (M12 x 179) (XX-LONG) STUD (M12 x 179) (XX-LONG) |
4 | superseded |
| 31 | 857137 |
ВИНТ (M12 x 160) (XX-LONG) SCREW (M12 x 160) (XX-LONG) |
1 | |
| 32 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 4 | 8331231 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 5 | 856982 |
ШАЙБА (0.500 x 0.810 x 0.090), нержавеющая сталь WASHER (.500 x .810 x .090) Stainless Steel |
5 | |
| 6 | 857008 |
ГАЙКА (M12 x 1.75) NUT (M12 x 1.75) |
4 | superseded |
| 7 | 64649 |
ПРОБКА PLUG |
1 | |
| 8 | 815431 |
ВИНТ (M14 x 178) SCREW (M14 x 178) |
2 | superseded |
| 9 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
2 |
