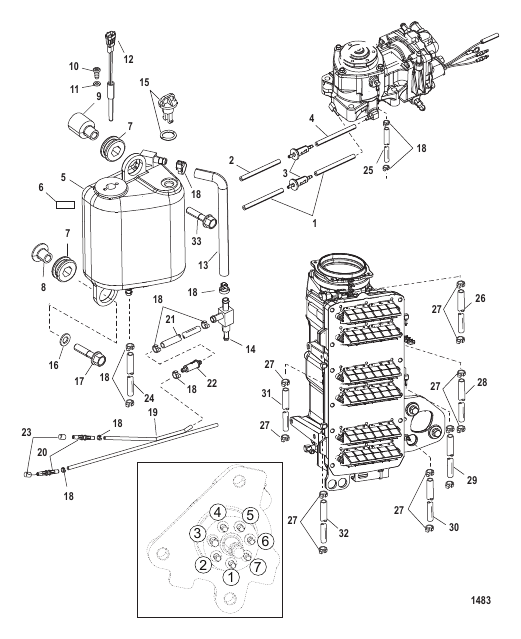

OILING SYSTEM
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 11.5 Inches) TUBING (38.00 Inches Bulk) (Cut to 11.5 Inches) |
2 | superseded |
| 10 | 58376 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
1 | |
| 11 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WASHER (.203 x .562 x .060) Stainless Steel |
1 | |
| 12 | 856156A4 |
ПЕРЕКЛЮЧАТЕЛЬ SWITCH |
1 | superseded |
| 13 | 885553 |
РУКАВ HOSE |
1 | |
| 14 | 424254 |
ФИТИНГ FITTING |
1 | superseded |
| 15 | 887609 |
ПРОБКА PLUG |
1 | |
| 16 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
3 | |
| 17 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
2 | |
| 18 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 19 | 8752891 |
РУКАВ HOSE |
1 | |
| 2 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 5 Inches) TUBING (38.00 Inches Bulk) (Cut to 5 Inches) |
1 | superseded |
| 20 | 858955 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | |
| 21 | 875283 |
РУКАВ (2.00") HOSE (2.00 Inches) |
1 | |
| 22 | 875284 |
ФИЛЬТР Однорядный FILTER In Line |
1 | superseded |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Plug NOT SOLD SEPARATE Plug |
2 | |
| 24 | 82381455 |
ТРУБОПРОВОД (Общая длина 25.00") (Cut to 22 Inches) TUBING (25.00 Inches Bulk) (Cut to 22 Inches) |
1 | |
| 25 | 85583464 |
ТРУБОПРОВОД (Общая длина 34.00") (Cut to 33 Inches) TUBING (34.00 Inches Bulk) (Cut to 33 Inches) |
1 | discontinued |
| 26 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 19.5 Inches) TUBING (38.00 Inches Bulk) (Cut to 19.5 Inches) |
1 | superseded |
| 27 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
AR | |
| 28 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 11.5 Inches) TUBING (38.00 Inches Bulk) (Cut to 11.5 Inches) |
1 | superseded |
| 29 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 6 Inches) TUBING (38.00 Inches Bulk) (Cut to 6 Inches) |
1 | superseded |
| 3 | 18206 |
ФИЛЬТР FILTER |
2 | superseded |
| 30 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 4 Inches) TUBING (38.00 Inches Bulk) (Cut to 4 Inches) |
1 | superseded |
| 31 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cu to 20.5 Inches) TUBING (38.00 Inches Bulk) (Cu to 20.5 Inches) |
1 | superseded |
| 32 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 15.5 Inches) TUBING (38.00 Inches Bulk) (Cut to 15.5 Inches) |
1 | superseded |
| 33 | 81893460 |
ВИНТ (M8 x 60) SCREW (M8 x 60) |
1 | |
| 4 | 85606065 |
ТРУБОПРОВОД (Общая длина 38.00") (Cut to 9 Inches) TUBING (38.00 Inches Bulk) (Cut to 9 Inches) |
1 | superseded |
| 5 | 884525T1 |
БАК Масло TANK Oil |
1 | superseded |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal-Reservoir NOT SOLD SEPARATE Decal-Reservoir |
1 | |
| 7 | 855362 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 8 | 855364 |
ВТУЛКА BUSHING |
2 | |
| 9 | 883050 |
ПРОСТАВКА SPACER |
1 |
