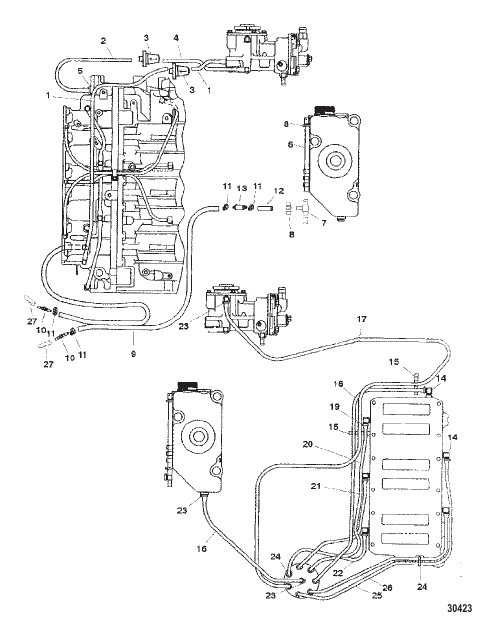

OILING SYSTEM
Parts (29)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 877869A01 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (225) POWERHEAD ASSEMBLY (225) |
1 | discontinued |
| - | 854198A01 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | discontinued |
| 1 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 11-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 11-1/2 IN. |
2 | superseded |
| 10 | 858955 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | |
| 11 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
4 | |
| 12 | 875283 |
РУКАВ (2.00") HOSE (2.00 Inches) |
1 | |
| 13 | 875284 |
ФИЛЬТР Однорядный FILTER In Line |
1 | superseded |
| 14 | 858870 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
6 | |
| 15 | 859230 |
ФИКСАТОР RETAINER |
2 | superseded |
| 16 | 82381455 |
ТРУБОПРОВОД (Общая длина 25.00") Cut to 22 IN. TUBING (25.00 Inches Bulk) Cut to 22 IN. |
1 | |
| 17 | 85583463 |
ТРУБОПРОВОД (Общая длина 33.00") Cut to 33 Inches TUBING (33.00 Inches Bulk) Cut to 33 Inches |
1 | superseded |
| 18 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 19-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 19-1/2 IN. |
1 | superseded |
| 19 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
6 | |
| 2 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 5 IN. TUBING (36.00 Inches Bulk) Cut to 5 IN. |
1 | superseded |
| 20 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 11-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 11-1/2 IN. |
1 | superseded |
| 21 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 6 IN. TUBING (36.00 Inches Bulk) Cut to 6 IN. |
1 | superseded |
| 22 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 4 IN. TUBING (36.00 Inches Bulk) Cut to 4 IN. |
1 | superseded |
| 23 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
3 | |
| 24 | 56762 |
ЛЕНТОЧНЫЙ ХОМУТ (4.00") TIE STRAP (4.00 Inches) |
13 | |
| 25 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 20-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 20-1/2 IN. |
1 | superseded |
| 26 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 15-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 15-1/2 IN. |
1 | superseded |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО PLUG NOT SOLD SEPARATE PLUG |
2 | |
| 3 | 18206 |
ФИЛЬТР FILTER |
2 | superseded |
| 4 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 9 IN. TUBING (36.00 Inches Bulk) Cut to 9 IN. |
1 | superseded |
| 5 | 8245021 |
СОЕДИНИТЕЛЬ CONNECTOR |
1 | |
| 6 | 830756109 |
РУКАВ (Общая длина 57.00") Cut to 7 IN. HOSE (57.00 Inches Bulk) Cut to 7 IN. |
1 | superseded |
| 7 | 424254 |
ФИТИНГ FITTING |
1 | superseded |
| 8 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
3 | |
| 9 | 875289 |
РУКАВ HOSE |
1 |
