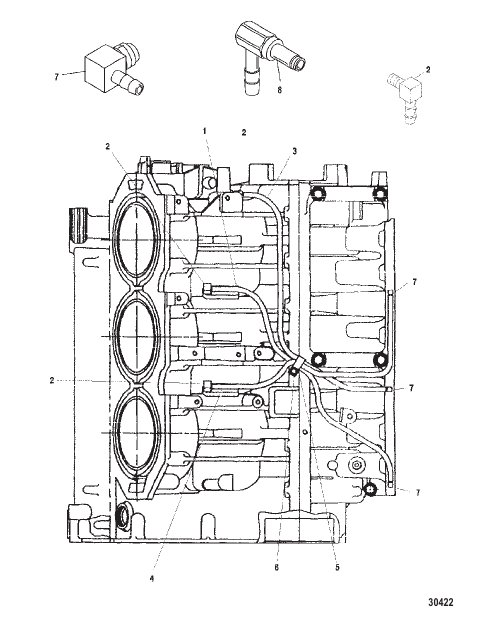

STARBOARD CENTER MAIN OILING SYSTEM
Parts (10)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 877869A01 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (225) POWERHEAD ASSEMBLY (225) |
1 | discontinued |
| - | 854198A01 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | discontinued |
| 1 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 15-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 15-1/2 IN. |
1 | superseded |
| 2 | 8592352 |
ОБРАТНЫЙ КЛАПАН 90 градусов (0.0625-27) CHECK VALVE 90 Degree (.0625-27) |
3 | |
| 3 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 16-1/2 IN. TUBING (36.00 Inches Bulk) Cut to 16-1/2 IN. |
1 | superseded |
| 4 | 85606064 |
ТРУБОПРОВОД (Общая длина 36.00") Cut to 15 IN. TUBING (36.00 Inches Bulk) Cut to 15 IN. |
1 | superseded |
| 5 | 23567 |
ЗАЖИМ CLIP |
1 | |
| 6 | 48408 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
1 | |
| 7 | 887801 |
ФИТИНГ Коленчатый патрубок, 90 градусов (0.0625-27) [0T409000] & Up FITTING Elbow 90 Degree (.0625-27) [0T409000] & Up |
3 | |
| 8 | 151333 |
ФИТИНГ [0T408999] & Below FITTING [0T408999] & Below |
3 |
