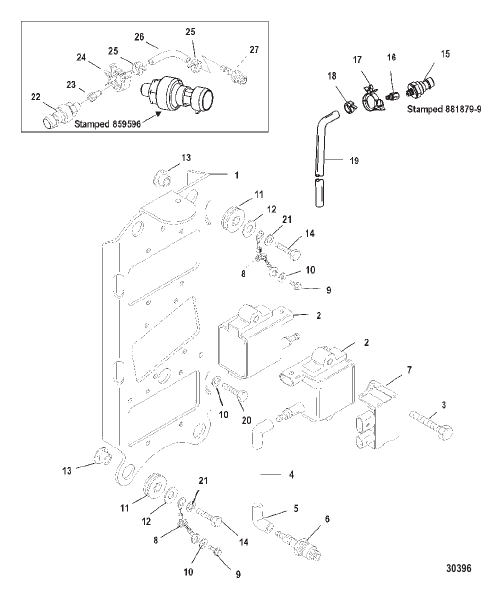

COIL PLATE
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 850295T4 |
ПЛАСТИНА PLATE |
1 | |
| 10 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
| 11 | 833155 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 12 | 4002318 |
ШАЙБА WASHER 8.90 x 24.0x 2.4 PL SS |
4 | |
| 13 | 8502341 |
ВТУЛКА BUSHING |
4 | |
| 14 | 81893435 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
4 | |
| 15 | 881879A7 |
КОМПЛЕКТ ДАТЧИКА (0-50 фунт./кв. дюйм) [0T409000] & Up SENSOR KIT (0-50 PSI) [0T409000] & Up |
1 | superseded |
| 16 | 859431 |
ФИТИНГ [0T409000] & Up FITTING [0T409000] & Up |
1 | superseded |
| 17 | 883066 |
ЗАЖИМ (0.865) [0T409000] & Up CLIP (.865) [0T409000] & Up |
1 | |
| 18 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") [0T409000] & Up TIE STRAP (8.00 Inches) [0T409000] & Up |
1 | |
| 19 | 85978568 |
ТРУБОПРОВОД (Общая длина 44.00") (cut to 18 IN.) [0T409000] & Up TUBING (44.00 Inches Bulk) (cut to 18 IN.) [0T409000] & Up |
1 | superseded |
| 2 | 856991A1 |
КОМПЛЕКТ КАТУШКИ COIL KIT |
6 | |
| 20 | 82129114 |
ВИНТ (M6 x 14) SCREW (M6 x 14) |
2 | |
| 21 | 36001 |
ШАЙБА WASHER |
2 | |
| 22 | 859596 |
ДАТЧИК (0-50 фунт./кв. дюйм) [0T408999] & Below SENSOR (0-50 PSI) [0T408999] & Below |
1 | superseded |
| 23 | 856594 |
ФИТИНГ Зазубренный [0T408999] & Below FITTING Barbed [0T408999] & Below |
1 | |
| 24 | 858954 |
ЗАЖИМ (0.625) [0T408999] & Below CLIP (.625) [0T408999] & Below |
1 | |
| 25 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") [0T408999] & Below TIE STRAP (8.00 Inches) [0T408999] & Below |
2 | |
| 26 | 9912878 |
РУКАВ (0.187) (общая длина 26.00") (Cut to15 IN.) [0T408999] & Below HOSE (.187) (26.00 Inches Bulk) (Cut to15 IN.) [0T408999] & Below |
1 | |
| 27 | 859092 |
ФИТИНГ [0T408999] & Below FITTING [0T408999] & Below |
1 | |
| 3 | 82129130 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
12 | |
| 4 | 821945T74 |
КОМПЛЕКТ КАБЕЛЕЙ Выс. напряжения CABLE SET Hi Tension |
1 | superseded |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО BOOT NOT SOLD SEPARATE BOOT |
12 | |
| 6 | 8556721 |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
6 | superseded |
| 7 | 859595T |
ПРИВОД Сдвоенная катушка DRIVER Dual Coil |
3 | |
| 8 | 858414A1 |
КАБЕЛЬ В СБОРЕ В оплетке CABLE ASSEMBLY Braided |
2 | |
| 9 | 82129110 |
ВИНТ (M6 x 10) SCREW (M6 x 10) |
2 |
