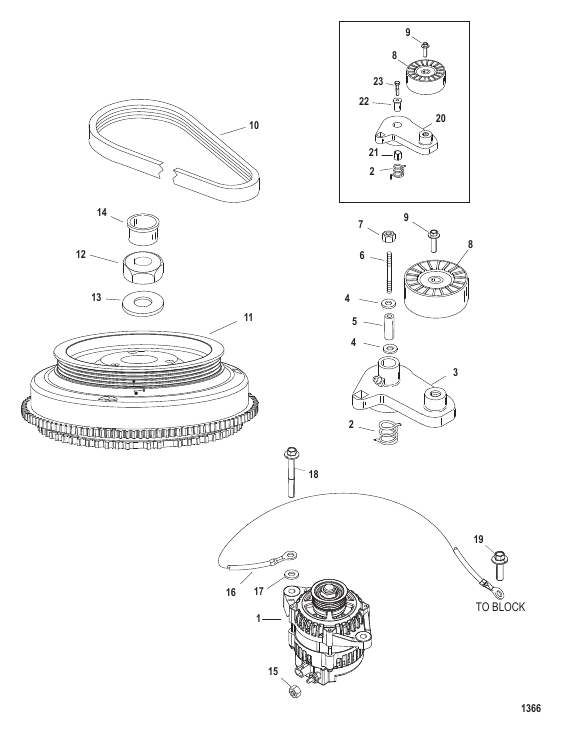

FLYWHEEL/ALTERNATOR
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 875286A1 |
ГЕНЕРАТОР [0T598999] & Below ALTERNATOR [0T598999] & Below |
1 | superseded |
| 1 | 881247A1 |
ГЕНЕРАТОР [0T599000] & Up ALTERNATOR [0T599000] & Up |
1 | superseded |
| 10 | 82850711 |
РЕМЕНЬ BELT |
1 | superseded |
| 11 | 859619T1 |
МАХОВИК (225) [0T467442] & Up FLYWHEEL (225) [0T467442] & Up |
1 | |
| 11 | 859619T1 |
МАХОВИК (250) [0T467335] & Up FLYWHEEL (250) [0T467335] & Up |
1 | |
| 11 | 859619T3 |
МАХОВИК (225) [0T467441] & Below FLYWHEEL (225) [0T467441] & Below |
1 | discontinued |
| 11 | 859619T3 |
МАХОВИК (250) [0T467334] & Below FLYWHEEL (250) [0T467334] & Below |
1 | discontinued |
| 12 | 42979 |
ГАЙКА (M16) NUT (M16) |
1 | |
| 13 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) WASHER (.641 x 1.250 x .190) |
1 | superseded |
| 14 | 45907 |
ПРОБКА Желтый PLUG Yellow |
1 | |
| 15 | 401386 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 16 | 856583A4 |
КАБЕЛЬ В СБОРЕ (7-1/4) CABLE ASSEMBLY (7-1/4) |
1 | |
| 16 | 856583A5 |
КАБЕЛЬ В СБОРЕ (6-1/4) CABLE ASSEMBLY (6-1/4) |
1 | |
| 17 | 4002319 |
ШАЙБА WASHER |
1 | |
| 18 | 82130150 |
ВИНТ (M10 x 50) SCREW (M10 x 50) |
2 | |
| 19 | 82130012 |
ВИНТ (M6 x 12) SCREW (M6 x 12) |
1 | |
| 2 | 8523742 |
ПРУЖИНА SPRING |
1 | |
| 20 | 850291T3 |
НАТЯЖНОЕ УСТРОЙСТВО РЕМНЯ [0T598999] & Below BELT TENSIONER [0T598999] & Below |
1 | |
| 21 | 42139 |
ВТУЛКА [0T598999] & Below BUSHING [0T598999] & Below |
1 | |
| 22 | 8525622 |
ВТУЛКА [0T598999] & Below BUSHING [0T598999] & Below |
1 | discontinued |
| 23 | 4007180 |
ВИНТ (M10 x 45) [0T598999] & Below SCREW (M10 x 45) [0T598999] & Below |
1 | |
| 3 | 856815T2 |
НАТЯЖНОЕ УСТРОЙСТВО РЫЧАГА В СБОРЕ [0T599000] & Up ARM TENSIONER ASSEMBLY [0T599000] & Up |
1 | |
| 4 | 4002320 |
ШАЙБА [0T599000] & Up WASHER [0T599000] & Up |
2 | |
| 5 | 8568941 |
ВТУЛКА [0T599000] & Up BUSHING [0T599000] & Up |
1 | |
| 6 | 856900 |
ШПИЛЬКА (M10 x 85) [0T599000] & Up STUD (M10 x 85) [0T599000] & Up |
1 | superseded |
| 7 | 826292 |
ГАЙКА (M10), с латунным/никелевым покрытием [0T599000] & Up NUT (M10) Brass/Nickel Plated [0T599000] & Up |
1 | |
| 8 | 852385A2 |
ШКИВ В СБОРЕ PULLEY ASSEMBLY |
1 | superseded |
| 9 | 4010835 |
ВИНТ Шестигранный фланец (M10 x 35), нержавеющая сталь SCREW (M10 x 35) Hex Flange - Stainless Steel |
1 |
