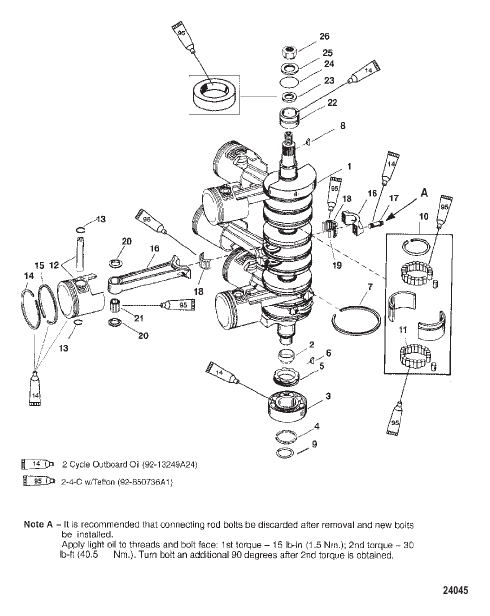

CRANKSHAFT, PISTONS - AND CONNECTING RODS
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814195A93 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 809794A97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| - | 809793A00 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (SEAPRO/MARATHON) POWERHEAD ASSEMBLY (SEAPRO/MARATHON) |
1 | discontinued |
| 1 | 9784T6 |
КОЛЕНЧАТЫЙ ВАЛ [0T325116] & Below CRANKSHAFT [0T325116] & Below |
1 | superseded |
| 1 | 9784A11 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ [0T325117] & Up CRANKSHAFT ASSEMBLY [0T325117] & Up |
1 | |
| 10 | 817001A1 |
ОБОЙМА В СБОРЕ Подшипник [0T325116] & Below RACE ASSEMBLY Bearing [0T325116] & Below |
2 | discontinued |
| 10 | 88270A1 |
ОБОЙМА В СБОРЕ [0T325117] & Up RACE ASSEMBLY [0T325117] & Up |
2 | superseded |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Roller [0T325116] & Below NOT SOLD SEPARATE Roller [0T325116] & Below |
88 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Needle Bearing [0T325117] & Up NOT SOLD SEPARATE Needle Bearing [0T325117] & Up |
2 | |
| 12 | 858295T1 |
ПОРШЕНЬ (STARBOARD-STANDARD) PISTON (STARBOARD-STANDARD) |
3 | superseded |
| 12 | 858294T1 |
ПОРШЕНЬ (PORT-STANDARD) PISTON (PORT-STANDARD) |
3 | superseded |
| 12 | 878572A2 |
ПОРШЕНЬ В СБОРЕ (STARBOARD-.015 O/S) PISTON ASSEMBLY (STARBOARD-.015 O/S) |
AR | |
| 12 | 878571A2 |
ПОРШЕНЬ В СБОРЕ (PORT-.015 O/S) PISTON ASSEMBLY (PORT-.015 O/S) |
AR | |
| 12 | 878574A2 |
ПОРШЕНЬ В СБОРЕ (STARBOARD-.030 O/S) PISTON ASSEMBLY (STARBOARD-.030 O/S) |
AR | |
| 12 | 878573A2 |
ПОРШЕНЬ В СБОРЕ (PORT-.030 O/S) PISTON ASSEMBLY (PORT-.030 O/S) |
AR | |
| 13 | 8320811 |
СТОПОРНОЕ КОЛЬЦО LOCK RING |
12 | |
| 14 | 827179A12 |
НАБОР КОЛЕЦ Поршень With 12 Common Rings (STANDARD) [0G960499] & Below RING SET Piston With 12 Common Rings (STANDARD) [0G960499] & Below |
1 | |
| 14 | 826293A12 |
НАБОР КОЛЕЦ Поршень With 12 Common Rings (.015 O/S) [0G960499] & Below RING SET Piston With 12 Common Rings (.015 O/S) [0G960499] & Below |
AR | superseded |
| 14 | 826297A12 |
НАБОР КОЛЕЦ Поршень With 12 Common Rings (.030 O/S) [0G960499] & Below RING SET Piston With 12 Common Rings (.030 O/S) [0G960499] & Below |
AR | superseded |
| 14 | 858772A12 |
НАБОР КОЛЕЦ Поршень With 6 Each Top and Bottom Rings (STANDARD) [0G960500] & Up RING SET Piston With 6 Each Top and Bottom Rings (STANDARD) [0G960500] & Up |
1 | |
| 14 | 875252A12 |
НАБОР КОЛЕЦ Поршень With 6 Each Top and Bottom Rings (.015 O/S) [0G960500] & Up RING SET Piston With 6 Each Top and Bottom Rings (.015 O/S) [0G960500] & Up |
AR | |
| 14 | 875257A12 |
НАБОР КОЛЕЦ Поршень With 6 Each Top and Bottom Rings (.030 O/S) [0G960500] & Up RING SET Piston With 6 Each Top and Bottom Rings (.030 O/S) [0G960500] & Up |
AR | |
| 15 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Piston Ring (SECOND) [0G960500] & Up NOT SOLD SEPARATE Piston Ring (SECOND) [0G960500] & Up |
6 | |
| 16 | 822373A7 |
СОЕДИНИТЕЛЬНЫЙ СТЕРЖЕНЬ В СБОРЕ CONNECTING ROD ASSEMBLY |
6 | superseded |
| 17 | 94320 |
ВИНТ (0.375-24 x 1.250) SCREW (.375-24 x 1.250) |
12 | |
| 18 | 43012A1 |
КОМПЛЕКТ ПОДШИПНИКОВ / СЕПАРАТОРА BEARING/CAGE KIT |
12 | superseded |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Bearing NOT SOLD SEPARATE Bearing |
96 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Wear Sleeve NOT SOLD SEPARATE Wear Sleeve |
1 | |
| 20 | 88263 |
УПОРНАЯ ШАЙБА THRUST WASHER |
12 | |
| 21 | 88258 |
ИГЛА Роликоподшипник NEEDLE Roller Bearing |
204 | superseded |
| 22 | 816773A2 |
БЛОК ПОДШИПНИКА (UPPER) BEARING ASSEMBLY (UPPER) |
1 | |
| 23 | 859093 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 24 | 823683 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.989 x 0.070) O-RING (1.989 x .070) |
1 | |
| 25 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) WASHER (.641 x 1.250 x .190) |
1 | superseded |
| 26 | 42979 |
ГАЙКА (M16) NUT (M16) |
1 | |
| 3 | 67923T |
ПОДШИПНИК Шарик (LOWER) BEARING Ball (LOWER) |
1 | |
| 4 | 67446 |
КОЛЬЦО RING |
1 | |
| 5 | 19301 |
ПЕРЕДАЧА (OIL INJECTION) GEAR (OIL INJECTION) |
1 | discontinued |
| 6 | 91800 |
КЛЮЧ Сегментная шпонка (OIL INJECTION) KEY Woodruff (OIL INJECTION) |
1 | |
| 7 | 816106 |
КОЛЬЦО RING |
7 | superseded |
| 8 | 91800 |
КЛЮЧ Сегментная шпонка KEY Woodruff |
1 | |
| 9 | 35126 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.859 x 0.139) O-RING (.859 x .139) |
1 |
