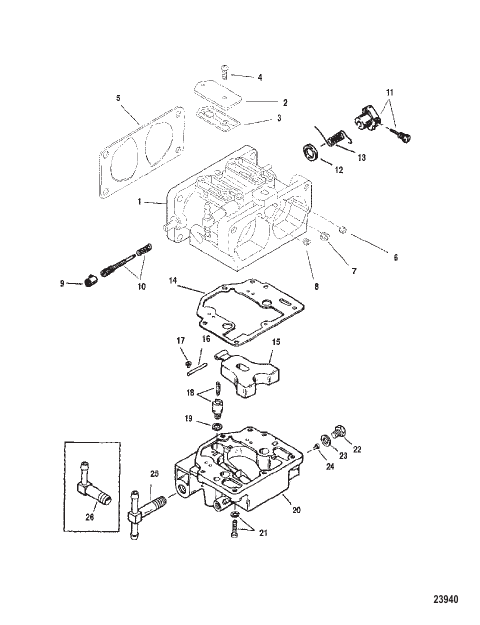

CARBURETOR
Parts (63)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8107493 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор GASKET SET Carburetor |
1 | |
| - | 8116913 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор REPAIR KIT Carburetor |
1 | |
| - | 814195A93 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 1 | 828272T52 |
КАРБЮРАТОР Верхняя часть (SEAPRO/MARATHON - WMV-11A) [0G960499] & Below CARBURETOR Top (SEAPRO/MARATHON - WMV-11A) [0G960499] & Below |
1 | discontinued |
| 1 | 828272T53 |
КАРБЮРАТОР Центральный (SEAPRO/MARATHON - WMV-11A) [0G960499] & Below CARBURETOR Center (SEAPRO/MARATHON - WMV-11A) [0G960499] & Below |
1 | discontinued |
| 1 | 828272T54 |
КАРБЮРАТОР Нижняя часть (SEAPRO/MARATHON - WMV-11A) [0G960499] & Below CARBURETOR Bottom (SEAPRO/MARATHON - WMV-11A) [0G960499] & Below |
1 | discontinued |
| 1 | 828272T55 |
КАРБЮРАТОР Верхняя часть (WMV-13A) CARBURETOR Top (WMV-13A) |
1 | discontinued |
| 1 | 828272T56 |
КАРБЮРАТОР Центральный (WMV-13A) CARBURETOR Center (WMV-13A) |
1 | discontinued |
| 1 | 828272T57 |
КАРБЮРАТОР Нижняя часть (WMV-13A) CARBURETOR Bottom (WMV-13A) |
1 | discontinued |
| 1 | 828272T76 |
КАРБЮРАТОР Верхняя часть (SEAPRO/MARATHON - WMV-19) [0G960500] & Up CARBURETOR Top (SEAPRO/MARATHON - WMV-19) [0G960500] & Up |
1 | discontinued |
| 1 | 828272T77 |
КАРБЮРАТОР Центральный (SEAPRO/MARATHON - WMV-19) [0G960500] & Up CARBURETOR Center (SEAPRO/MARATHON - WMV-19) [0G960500] & Up |
1 | discontinued |
| 1 | 828272T78 |
КАРБЮРАТОР Нижняя часть (SEAPRO/MARATHON - WMV-19) [0G960500] & Up CARBURETOR Bottom (SEAPRO/MARATHON - WMV-19) [0G960500] & Up |
1 | discontinued |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Idle Mixture Screw/Spring NOT SOLD SEPARATE Idle Mixture Screw/Spring |
6 | |
| 11 | 8113523 |
КОМПЛЕКТ РЫЧАГА LEVER KIT |
3 | discontinued |
| 12 | 6031 |
ПРОСТАВКА SPACER |
3 | discontinued |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
3 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Bowl NOT SOLD SEPARATE Gasket-Fuel Bowl |
3 | |
| 15 | 810738 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
3 | |
| 16 | F10064 |
ВАЛ SHAFT |
3 | |
| 17 | 5902 |
ВИНТ (№6-32 x 0.187) SCREW (#6-32 x .187) |
3 | discontinued |
| 18 | 8116901 |
КОМПЛЕКТ СЕДЛА КЛАПАНА VALVE SEAT KIT |
3 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Valve Seat NOT SOLD SEPARATE Gasket-Valve Seat |
3 | |
| 2 | 809743 |
КРЫШКА COVER |
6 | discontinued |
| 20 | 8236232 |
КАМЕРА Топливо (TOP)(WMV-11A/13A) BOWL Fuel (TOP)(WMV-11A/13A) |
1 | discontinued |
| 20 | 8236231 |
КАМЕРА Топливо (TOP)(WMV-19) BOWL Fuel (TOP)(WMV-19) |
1 | discontinued |
| 20 | 8236241 |
КАМЕРА Топливо (CENTER/BOTTOM) BOWL Fuel (CENTER/BOTTOM) |
2 | discontinued |
| 21 | 808612 |
ВИНТ И ШАЙБА (№8-32 x .750) SCREW AND WASHER (#8-32 x .750) |
18 | |
| 22 | 811694 |
Комплект пробки PLUG KIT |
6 | |
| 23 | 802731 |
УПЛОТНЕНИЕ (CONSISTS OF 4 GASKETS) SEAL (CONSISTS OF 4 GASKETS) |
2 | |
| 24 | 3518 |
ВОДОМЕТНЫЙ (0.082) (PORT-TOP/BOTTOM)(WMV11A) [0G960499] & Below JET (.082) (PORT-TOP/BOTTOM)(WMV11A) [0G960499] & Below |
2 | |
| 24 | 5815 |
ВОДОМЕТНЫЙ (0.086) (PORT-CENTER)(WMV11A) [0G960499] & Below JET (.086) (PORT-CENTER)(WMV11A) [0G960499] & Below |
1 | |
| 24 | 3518 |
ВОДОМЕТНЫЙ (0.082) (STBD)(WMV11A) [0G960499] & Below JET (.082) (STBD)(WMV11A) [0G960499] & Below |
3 | |
| 24 | 3518 |
ВОДОМЕТНЫЙ (0.082) (PORT-TOP/BOTTOM)(WMV13A) JET (.082) (PORT-TOP/BOTTOM)(WMV13A) |
2 | |
| 24 | 5815 |
ВОДОМЕТНЫЙ (0.086) (PORT-CENTER)(WMV13A) JET (.086) (PORT-CENTER)(WMV13A) |
1 | |
| 24 | 3517 |
ВОДОМЕТНЫЙ (0.084) (STBD.)(WMV13A) JET (.084) (STBD.)(WMV13A) |
3 | |
| 24 | 6201 |
ВОДОМЕТНЫЙ (0.080) (STBD. - TOP/BOTTOM)(WMV19) [0G960500] & Up JET (.080) (STBD. - TOP/BOTTOM)(WMV19) [0G960500] & Up |
2 | |
| 24 | 3517 |
ВОДОМЕТНЫЙ (0.084) (STBD. - CENTER)(WMV19) [0G960500] & Up JET (.084) (STBD. - CENTER)(WMV19) [0G960500] & Up |
1 | |
| 24 | 6201 |
ВОДОМЕТНЫЙ (0.080) (PORT)(WMV19) [0G960500] & Up JET (.080) (PORT)(WMV19) [0G960500] & Up |
3 | |
| 25 | 7900 |
ФИТИНГ-ТРОЙНИК (TOP/CENTER) TEE FITTING (TOP/CENTER) |
2 | discontinued |
| 26 | 7901 |
КОЛЕНЧАТЫЙ (BOTTOM) ELBOW (BOTTOM) |
1 | |
| 3 | 809758 |
ПРОКЛАДКА GASKET |
6 | discontinued |
| 4 | 8087391 |
ВИНТ SCREW |
12 | discontinued |
| 5 | 828292 |
ПРОКЛАДКА GASKET |
3 | |
| 6 | 7570 |
ВОДОМЕТНЫЙ 0.040 (TOP)(RIGHT BORE-WMV-11A) [0G960499] & Below JET .040 (TOP)(RIGHT BORE-WMV-11A) [0G960499] & Below |
1 | discontinued |
| 6 | 815633058 |
ВОДОМЕТНЫЙ Вентиляционное отверстие холостого хода (.058-CENTER)(RIGHT BORE-WMV-11A) [0G960499] & Below JET Idle Air Vent (.058-CENTER)(RIGHT BORE-WMV-11A) [0G960499] & Below |
1 | discontinued |
| 6 | 815633054 |
ВОДОМЕТНЫЙ (0.054) (BOTTOM)(RIGHT BORE-WMV-11A) [0G960499] & Below JET (.054) (BOTTOM)(RIGHT BORE-WMV-11A) [0G960499] & Below |
1 | |
| 6 | 815633046 |
ВОДОМЕТНЫЙ (0.046) (TOP)(RIGHT BORE-WMV-13A) JET (.046) (TOP)(RIGHT BORE-WMV-13A) |
1 | |
| 6 | 815633054 |
ВОДОМЕТНЫЙ (0.054) (CENTER)(RIGHT BORE-WMV-13A) JET (.054) (CENTER)(RIGHT BORE-WMV-13A) |
1 | |
| 6 | 815633058 |
ВОДОМЕТНЫЙ Вентиляционное отверстие холостого хода (.058-BOTTOM)(RIGHT BORE-WMV-13A) JET Idle Air Vent (.058-BOTTOM)(RIGHT BORE-WMV-13A) |
1 | discontinued |
| 6 | 815633050 |
ВОДОМЕТНЫЙ (0.050) (TOP)(RIGHT BORE-WMV-19) [0G960500] & Up JET (.050) (TOP)(RIGHT BORE-WMV-19) [0G960500] & Up |
1 | discontinued |
| 6 | 815633048 |
ВОДОМЕТНЫЙ (0.048) (CENTER)(RIGHT BORE-WMV-19) [0G960500] & Up JET (.048) (CENTER)(RIGHT BORE-WMV-19) [0G960500] & Up |
1 | discontinued |
| 6 | 815633052 |
ВОДОМЕТНЫЙ (0.052) (BOTTOM)(RIGHT BORE-WMV-19) [0G960500] & Up JET (.052) (BOTTOM)(RIGHT BORE-WMV-19) [0G960500] & Up |
1 | discontinued |
| 7 | 6201 |
ВОДОМЕТНЫЙ (0.080) (WMV-11A) JET (.080) (WMV-11A) |
3 | |
| 7 | 3518 |
ВОДОМЕТНЫЙ (0.082) (TOP/BOTTOM)(WMV-13A) JET (.082) (TOP/BOTTOM)(WMV-13A) |
2 | |
| 7 | 5815 |
ВОДОМЕТНЫЙ (0.086) (CENTER)(WMV-13A) JET (.086) (CENTER)(WMV-13A) |
1 | |
| 7 | 5815 |
ВОДОМЕТНЫЙ (0.086) (WMV-19) JET (.086) (WMV-19) |
3 | |
| 8 | 815633046 |
ВОДОМЕТНЫЙ (0.046) (TOP)(LEFT BORE-WMV-11A) [0G960499] & Below JET (.046) (TOP)(LEFT BORE-WMV-11A) [0G960499] & Below |
1 | |
| 8 | 815633048 |
ВОДОМЕТНЫЙ (0.048) (CENTER/BOTTOM)(LEFT BORE-WMV-11A) [0G960499] & Below JET (.048) (CENTER/BOTTOM)(LEFT BORE-WMV-11A) [0G960499] & Below |
2 | discontinued |
| 8 | 815633060 |
ВОДОМЕТНЫЙ (0.060) (TOP)(LEFT BORE-WMV-13A) JET (.060) (TOP)(LEFT BORE-WMV-13A) |
1 | discontinued |
| 8 | 815633052 |
ВОДОМЕТНЫЙ (0.052) (CENTER/BOTTOM)(LEFT BORE-WMV-13A) JET (.052) (CENTER/BOTTOM)(LEFT BORE-WMV-13A) |
2 | discontinued |
| 8 | 815633050 |
ВОДОМЕТНЫЙ (0.050) (TOP/BOTTOM)(LEFT BORE-WMV-19) [0G960500] & Up JET (.050) (TOP/BOTTOM)(LEFT BORE-WMV-19) [0G960500] & Up |
2 | discontinued |
| 8 | 810742 |
ВОДОМЕТНЫЙ (0.044) (CENTER)(LEFT BORE-WMV-19) [0G960500] & Up JET (.044) (CENTER)(LEFT BORE-WMV-19) [0G960500] & Up |
1 | discontinued |
| 9 | 810779 |
ПРОБКА CAP |
6 | discontinued |
