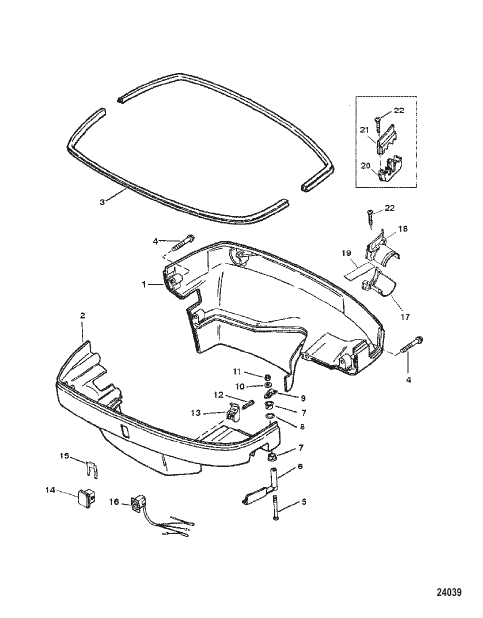

BOTTOM COWL
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 818448A1 |
НИЖНИЙ КОЖУХ (BLACK-PORT) BOTTOM COWL (BLACK-PORT) |
1 | discontinued |
| 10 | 69057 |
ШАЙБА (0.281 x 0.734 x 0.063) WASHER (.281 x .734 x .063) |
1 | |
| 11 | 401366 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 12 | 8214281 |
ВИНТ (№10-16 x 0.625) SCREW (#10-16 x .625) |
1 | |
| 13 | 822873 |
ЗАЖИМ CLIP |
1 | |
| 14 | 8128301 |
ПРОБКА (SEAPRO/MARATHON) PLUG (SEAPRO/MARATHON) |
1 | superseded |
| 15 | 8124431 |
ФИКСАТОР (SEAPRO/MARATHON) RETAINER (SEAPRO/MARATHON) |
1 | superseded |
| 16 | 856990 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ (NON-SEAPRO/MARATHON) SWITCH ASSEMBLY (NON-SEAPRO/MARATHON) |
1 | superseded |
| 17 | 859435 |
ВСТАВКА (LOWER) [0G960500] & Up INSERT (LOWER) [0G960500] & Up |
1 | superseded |
| 18 | 859434 |
ВСТАВКА (UPPER) [0G960500] & Up INSERT (UPPER) [0G960500] & Up |
1 | superseded |
| 19 | 859343 |
ПЕНОПЛАСТ [0G960500] & Up FOAM [0G960500] & Up |
1 | |
| 2 | 818447A1 |
НИЖНИЙ КОЖУХ (BLACK-STBD.) BOTTOM COWL (BLACK-STBD.) |
1 | discontinued |
| 20 | 822024 |
ЗАЖИМ [0G960499] & Below CLAMP [0G960499] & Below |
1 | |
| 21 | 822023 |
ЗАЖИМ [0G960499] & Below CLAMP [0G960499] & Below |
1 | |
| 22 | 92799 |
ВИНТ (№10-16 x 1.12) SCREW (#10-16 x 1.12) |
2 | |
| 3 | 8253181 |
УПЛОТНЕНИЕ Кожух (41.00") SEAL Cowl (41.00 Inches) |
2 | superseded |
| 4 | 82130040 |
ВИНТ (M6 x 40) SCREW (M6 x 40) |
4 | |
| 5 | 824868 |
ВИНТ (M6 x 75) SCREW (M6 x 75) |
1 | |
| 6 | 821253F1 |
ПЕРЕДНЯЯ РУКОЯТКА Черный FRONT HANDLE Black |
1 | superseded |
| 7 | 335891 |
ВТУЛКА BUSHING |
2 | |
| 8 | 48462 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.614 x 0.070) O-RING (.614 x .070) |
1 | |
| 9 | 8219423 |
СТОПОР PAWL |
1 |
