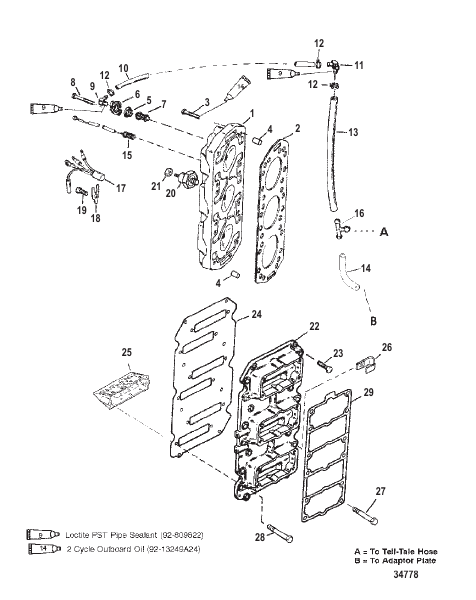

REED BLOCK AND CYLINDER HEAD
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A92 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| - | 823434T97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (150) POWERHEAD ASSEMBLY (150) |
1 | discontinued |
| - | 812817T97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (175) POWERHEAD ASSEMBLY (175) |
1 | discontinued |
| - | 813043T97 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | discontinued |
| 1 | 18488F1 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
2 | superseded |
| 10 | 7765378 |
ТРУБОПРОВОД (25.00") Cut to 12-3/4 Inches TUBING (25.00 Inches) Cut to 12-3/4 Inches |
1 | superseded |
| 11 | 68728 |
ФИТИНГ FITTING |
1 | discontinued |
| 12 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | superseded |
| 13 | 7765378 |
ТРУБОПРОВОД (25.00") Cut to 11-1/2 Inches TUBING (25.00 Inches) Cut to 11-1/2 Inches |
1 | superseded |
| 14 | 7765378 |
ТРУБОПРОВОД (25.00") Cut to 7-1/2 Inches TUBING (25.00 Inches) Cut to 7-1/2 Inches |
1 | superseded |
| 15 | 97465 |
ДАТЧИК Температура Starboard SENDER Temperature Starboard |
1 | |
| 16 | 815914 |
ТРОЙНИК T-FITTING |
1 | |
| 17 | 13536A6 |
ДАТЧИК В СБОРЕ Температура Port SENSOR ASSEMBLY Temperature Port |
1 | |
| 18 | 137151 |
ФИКСАТОР RETAINER |
2 | |
| 19 | 98257 |
ВИНТ (0.312-18 x 0.500) SCREW (.312-18 x .500) |
2 | |
| 2 | 8228441 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 20 | 826858 |
ДАТЧИК Детонационное сгорание (200) SENSOR Knock (200) |
1 | |
| 21 | 45076 |
ГАЙКА (№10-32), латунь NUT (#10-32) Brass |
1 | |
| 22 | 17735A2 |
ПЕРЕХОДНАЯ ПЛАСТИНА В СБОРЕ ADAPTER PLATE ASSEMBLY |
1 | discontinued |
| 23 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
8 | |
| 24 | 146972 |
ПРОКЛАДКА GASKET |
1 | |
| 25 | 116453 |
БЛОК С ПЛАСТИНЧАТЫМИ КЛАПАНАМИ REED BLOCK |
6 | superseded |
| 26 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 27 | 55715 |
ВИНТ (0.250-20 x 0.880) SCREW (.250-20 x .880) |
6 | |
| 28 | 90197 |
ВИНТ (0.250-20 x 1.125) SCREW (.250-20 x 1.125) |
6 | discontinued |
| 29 | 167371 |
ПРОКЛАДКА GASKET |
1 | |
| 3 | 98534 |
ВИНТ (0.375-16 x 2.30) (Quantity of 24 used on 150/175) SCREW (.375-16 x 2.30) (Quantity of 24 used on 150/175) |
23 | discontinued |
| 3 | 827426 |
ВИНТ (200) SCREW (200) |
1 | discontinued |
| 4 | 63779 |
ШТИФТ Штифт (0.250 x 0.625) PIN Dowel (.250 x .625) |
4 | |
| 5 | 62386 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 6 | 90390A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
2 | |
| 7 | 75692 |
ТЕРМОСТАТ THERMOSTAT |
2 | |
| 8 | 35386 |
ВИНТ (0.312-18 x 1.00) SCREW (.312-18 x 1.00) |
4 | |
| 9 | 687271 |
ФИТИНГ (0.250-18), 90 градусов – латунь FITTING (.250-18) 90 Degree - Brass |
1 |
