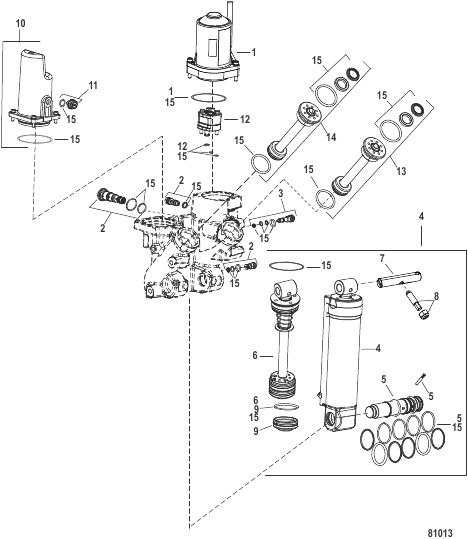

Power Trim Components 8M0231193
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0231193 |
POWER TRIM ASSEMBLY POWER TRIM ASSEMBLY |
1 | |
| 1 | 8M0225363 |
MOTOR KIT MOTOR KIT |
1 | |
| 10 | 8M0225368 |
RESERVOIR KIT RESERVOIR KIT |
1 | |
| 11 | 8M0174135 |
PLUG RESERVOIR ASSEMBLY PLUG RESERVOIR ASSEMBLY |
1 | |
| 12 | 8M0237525 |
PUMP KIT PUMP KIT |
1 | |
| 13 | 8M0225367 |
TRIM ROD KIT Starboard TRIM ROD KIT Starboard |
1 | |
| 14 | 8M0242846 |
TRIM ROD KIT Contains Trim Limit Valve, Resevoir Side (Port) TRIM ROD KIT Contains Trim Limit Valve, Resevoir Side (Port) |
1 | |
| 15 | 8M0225372 |
REBUILD KIT REBUILD KIT |
1 | |
| 2 | 8M0225369 |
VALVE KIT VALVE KIT |
1 | |
| 3 | 8M0225371 |
MANUAL RELEASE KIT MANUAL RELEASE KIT |
1 | |
| 4 | 8M0245633 |
TILT CYLINDER KIT TILT CYLINDER KIT |
1 | |
| 5 | 8M0225370 |
PIVOT PIN KIT PIVOT PIN KIT |
1 | |
| 6 | 8M0244575 |
SHOCK ROD KIT SHOCK ROD KIT |
1 | |
| 7 | 8M0244425 |
PIN ROD EYE KIT PIN ROD EYE KIT |
1 | |
| 8 | 8M0232231 |
SCREW NUT KIT SCREW NUT KIT |
1 | |
| 9 | 8M0225373 |
MEMORY PISTON KIT MEMORY PISTON KIT |
1 |
