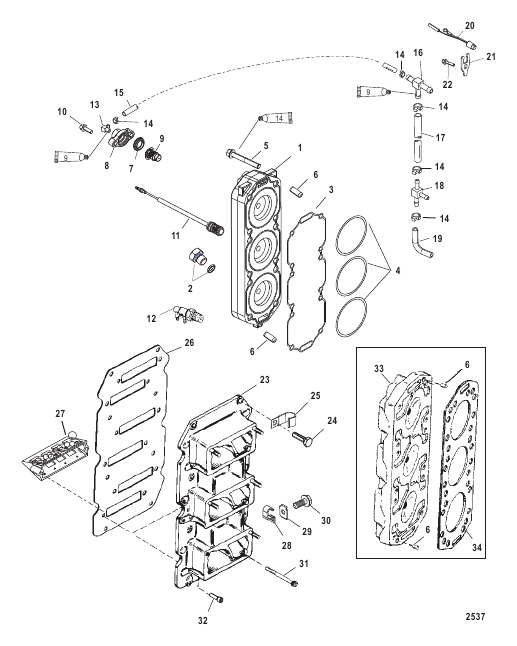

Reed Block and Cylinder Head
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 815791A00 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель Cylinder head o-rings and seal not included GASKET SET Engine Cylinder head o-rings and seal not included |
1 | |
| - | 878365T00 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (135) POWERHEAD ASSEMBLY (135) |
1 | discontinued |
| - | 823434T00 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (140/150/XR6/MAGNUM III) POWERHEAD ASSEMBLY (140/150/XR6/MAGNUM III) |
1 | discontinued |
| - | 813043T00 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (200) POWERHEAD ASSEMBLY (200) |
1 | discontinued |
| 1 | 858281T2 |
ГОЛОВКА ЦИЛИНДРА (140/150/XR6/ MAGNUM III) [0T800999] & Below CYLINDER HEAD (140/150/XR6/ MAGNUM III) [0T800999] & Below |
2 | superseded |
| 1 | 858281A9 |
КОМПЛЕКТ ГОЛОВКИ ЦИЛИНДРА (140/150/XR6/ MAGNUM III) [0T801000] & Up CYLINDER HEAD KIT (140/150/XR6/ MAGNUM III) [0T801000] & Up |
2 | |
| 1 | 858281T1 |
ГОЛОВКА ЦИЛИНДРА (200) [0T800999] & Below CYLINDER HEAD (200) [0T800999] & Below |
2 | superseded |
| 1 | 858281A10 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (200) [0T801000] & Up CYLINDER HEAD ASSEMBLY (200) [0T801000] & Up |
2 | |
| 10 | 40011149 |
ВИНТ (M8 x 25), нержавеющая сталь SCREW (M8 x 25) Stainless Steel |
4 | |
| 11 | 974651 |
ДАТЧИК (STBD.) SENDER (STBD.) |
1 | |
| 12 | 814612 |
КЛАПАН Термический поток воздуха VALVE Thermal Air |
1 | discontinued |
| 13 | 687271 |
ФИТИНГ (0.250-18), 90 градусов – латунь FITTING (.250-18) 90 Degree - Brass |
1 | |
| 14 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
10 | |
| 15 | 77653101 |
РУКАВ (Общая длина 48.00") (Cut to 12-3/4 Inches) HOSE (48.00 Inches Bulk) (Cut to 12-3/4 Inches) |
1 | |
| 16 | 68728 |
ФИТИНГ FITTING |
1 | discontinued |
| 17 | 77653101 |
РУКАВ (Общая длина 48.00") (Cut to 13-1/2 Inches) HOSE (48.00 Inches Bulk) (Cut to 13-1/2 Inches) |
1 | |
| 18 | 815914 |
ТРОЙНИК T-FITTING |
1 | |
| 19 | 77653101 |
РУКАВ (Общая длина 48.00") (Cut to 4-1/2 Inches) HOSE (48.00 Inches Bulk) (Cut to 4-1/2 Inches) |
1 | |
| 19 | 827602002 |
РУКАВ (Molded) HOSE (Molded) |
1 | |
| 2 | 859100 |
ПРОБКА [0T800999] & Below PLUG [0T800999] & Below |
2 | superseded |
| 2 | 8591001 |
УЗЕЛ ПРОБКИ (M10 x 1.5), латунь (200) [0T801000] & Up PLUG ASSEMBLY (M10 x 1.5) Brass (200) [0T801000] & Up |
2 | |
| 20 | 13536A13 |
ДАТЧИК В СБОРЕ Температура (PORT) (2-WIRE) SENSOR ASSEMBLY Temperature (PORT) (2-WIRE) |
1 | |
| 21 | 137151 |
ФИКСАТОР RETAINER |
2 | |
| 22 | 81893414 |
ВИНТ (M8 x 14) SCREW (M8 x 14) |
2 | |
| 23 | 43517A9 |
ПЛАСТИНА В СБОРЕ PLATE ASSEMBLY |
1 | discontinued |
| 24 | 28668 |
ВИНТ (0.250-20 x 0.875), нержавеющая сталь SCREW (.250-20 x .875) Stainless Steel |
8 | |
| 25 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 26 | 146972 |
ПРОКЛАДКА GASKET |
1 | |
| 27 | 855952T3 |
БЛОК ПЛАСТИНЧАТЫХ КЛАПАНОВ В СБОРЕ REED BLOCK ASSEMBLY |
6 | |
| 28 | 65292 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 29 | 69205 |
C-ШАЙБА C WASHER |
1 | superseded |
| 3 | 8584521 |
УПЛОТНЕНИЕ (140/150/XR6/ MAGNUM III/200) SEAL (140/150/XR6/ MAGNUM III/200) |
2 | superseded |
| 30 | 878608 |
ВИНТ (№10-16 x 0.500) SCREW (#10-16 x .500) |
1 | |
| 31 | 96529 |
ВИНТ (0.250-20 x 2.00) SCREW (.250-20 x 2.00) |
6 | discontinued |
| 32 | 55715 |
ВИНТ (0.250-20 x 0.880) SCREW (.250-20 x .880) |
6 | |
| 33 | 18787A18 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ (135) CYLINDER HEAD ASSEMBLY (135) |
2 | discontinued |
| 34 | 187851 |
ПРОКЛАДКА (135) GASKET (135) |
2 | superseded |
| 4 | 8597721 |
УПЛОТНЕНИЕ (140/150/XR6/ MAGNUM III/200) SEAL (140/150/XR6/ MAGNUM III/200) |
6 | |
| 5 | 878217 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
24 | superseded |
| 6 | 63779 |
ШТИФТ Штифт (0.250 x 0.625) PIN Dowel (.250 x .625) |
4 | |
| 7 | 62386 |
ПРОКЛАДКА [0T979999] & Below GASKET [0T979999] & Below |
2 | superseded |
| 7 | 62386001 |
ПРОКЛАДКА [0T980000] & Up GASKET [0T980000] & Up |
2 | superseded |
| 8 | 90390A1 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
2 | |
| 9 | 75692 |
ТЕРМОСТАТ THERMOSTAT |
2 |
