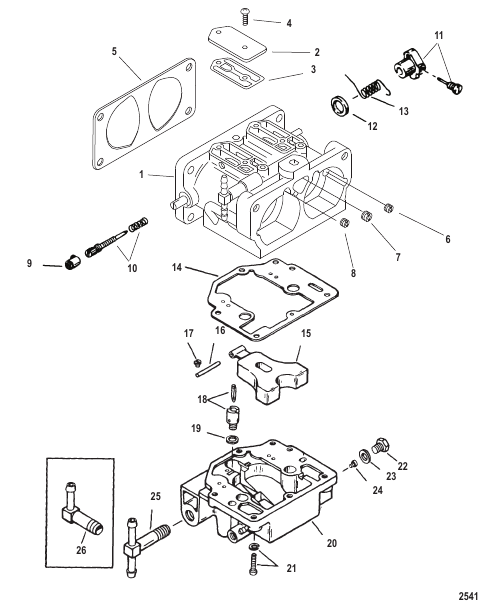

Carburetor
Parts (62)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8116913 |
РЕМОНТНЫЙ КОМПЛЕКТ Карбюратор (1 Per Carburetor) REPAIR KIT Carburetor (1 Per Carburetor) |
1 | |
| - | 8107493 |
КОМПЛЕКТ ПРОКЛАДОК Карбюратор (1 Per Carburetor) GASKET SET Carburetor (1 Per Carburetor) |
1 | |
| - | 815791A00 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель Cylinder head o-rings and seal not included GASKET SET Engine Cylinder head o-rings and seal not included |
1 | |
| 1 | 828272T88 |
КАРБЮРАТОР Верхняя часть (135 - WMV-15A-1 CARBURETOR Top (135 - WMV-15A-1 |
1 | discontinued |
| 1 | 828272T89 |
КАРБЮРАТОР Центральный (135 - WMV-15A-2) CARBURETOR Center (135 - WMV-15A-2) |
1 | discontinued |
| 1 | 828272T90 |
КАРБЮРАТОР Нижняя часть (135 - WMV-15A-3) CARBURETOR Bottom (135 - WMV-15A-3) |
1 | discontinued |
| 1 | 828272T67 |
КАРБЮРАТОР Верхняя часть (140/150/XR6/MAGNUM III WMV-16-1) CARBURETOR Top (140/150/XR6/MAGNUM III WMV-16-1) |
1 | discontinued |
| 1 | 828272T68 |
КАРБЮРАТОР Центральный (140/150/XR6/MAGNUM III WMV-16-2) CARBURETOR Center (140/150/XR6/MAGNUM III WMV-16-2) |
1 | discontinued |
| 1 | 828272T69 |
КАРБЮРАТОР Нижняя часть (140/150/XR6/MAGNUM III WMV-16-3) CARBURETOR Bottom (140/150/XR6/MAGNUM III WMV-16-3) |
1 | discontinued |
| 1 | 828272T73 |
КАРБЮРАТОР Верхняя часть (200 - WMV-18-1) CARBURETOR Top (200 - WMV-18-1) |
1 | |
| 1 | 828272T74 |
КАРБЮРАТОР Центральный (200 - WMV-18-2) CARBURETOR Center (200 - WMV-18-2) |
1 | discontinued |
| 1 | 828272T75 |
КАРБЮРАТОР Нижняя часть (200 - WMV-18-3) CARBURETOR Bottom (200 - WMV-18-3) |
1 | discontinued |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Idle Mixture Screw/Spring NOT SOLD SEPARATE Idle Mixture Screw/Spring |
6 | |
| 11 | 8113523 |
КОМПЛЕКТ РЫЧАГА LEVER KIT |
3 | discontinued |
| 12 | 6031 |
ПРОСТАВКА SPACER |
3 | discontinued |
| 13 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Spring NOT SOLD SEPARATE Spring |
3 | |
| 14 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket-Fuel Bowl NOT SOLD SEPARATE Gasket-Fuel Bowl |
3 | |
| 15 | 810738 |
ПОПЛАВОК В СБОРЕ FLOAT ASSEMBLY |
3 | |
| 16 | F10064 |
ВАЛ Float SHAFT Float |
3 | |
| 17 | 5902 |
ВИНТ (№6-32 x 0.187) SCREW (#6-32 x .187) |
3 | discontinued |
| 18 | 8116901 |
КОМПЛЕКТ СЕДЛА КЛАПАНА VALVE SEAT KIT |
3 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Gasket NOT SOLD SEPARATE Gasket |
3 | |
| 2 | 809743 |
КРЫШКА COVER |
6 | discontinued |
| 20 | 8236231 |
КАМЕРА Топливо (TOP) BOWL Fuel (TOP) |
1 | discontinued |
| 20 | 8236241 |
КАМЕРА Топливо (CENTER/BOTTOM) BOWL Fuel (CENTER/BOTTOM) |
2 | discontinued |
| 21 | 808612 |
ВИНТ И ШАЙБА (№8-32 x .750) SCREW AND WASHER (#8-32 x .750) |
18 | |
| 22 | 811694 |
Комплект пробки PLUG KIT |
6 | |
| 23 | 802731 |
УПЛОТНЕНИЕ (CONSISTS OF 4 GASKETS) SEAL (CONSISTS OF 4 GASKETS) |
2 | |
| 24 | 6207 |
ВОДОМЕТНЫЙ (0.072) Main Fuel (135) JET (.072) Main Fuel (135) |
6 | |
| 24 | 3794 |
ВОДОМЕТНЫЙ (0.074) Main Fuel (STBD)(140/150/XR6/MAGNUM III) JET (.074) Main Fuel (STBD)(140/150/XR6/MAGNUM III) |
3 | |
| 24 | 6680 |
ВОДОМЕТНЫЙ (0.078) Main Fuel (PORT-TOP)(140/150/XR6/MAGNUM III) JET (.078) Main Fuel (PORT-TOP)(140/150/XR6/MAGNUM III) |
1 | |
| 24 | 3794 |
ВОДОМЕТНЫЙ (0.074) Main Fuel (PORT-CENTER/BOTTOM)(140/150/XR6/MAGNUM III) JET (.074) Main Fuel (PORT-CENTER/BOTTOM)(140/150/XR6/MAGNUM III) |
2 | |
| 24 | 6201 |
ВОДОМЕТНЫЙ (0.080) Main Fuel (200)(STBD-TOP/PORT-CENTER) JET (.080) Main Fuel (200)(STBD-TOP/PORT-CENTER) |
2 | |
| 24 | 3518 |
ВОДОМЕТНЫЙ (0.082) Main Fuel (200)(PORT-TOP/STBD-CENTER) JET (.082) Main Fuel (200)(PORT-TOP/STBD-CENTER) |
2 | |
| 24 | 6680 |
ВОДОМЕТНЫЙ (0.078) Main Fuel (200)(PORT-BOTTOM) JET (.078) Main Fuel (200)(PORT-BOTTOM) |
1 | |
| 24 | 3517 |
ВОДОМЕТНЫЙ (0.084) Main Fuel (200)(STBD-BOTTOM) JET (.084) Main Fuel (200)(STBD-BOTTOM) |
1 | |
| 25 | 7900 |
ФИТИНГ-ТРОЙНИК (TOP/CENTER) TEE FITTING (TOP/CENTER) |
2 | discontinued |
| 26 | 7901 |
КОЛЕНЧАТЫЙ (BOTTOM) ELBOW (BOTTOM) |
1 | |
| 3 | 809758 |
ПРОКЛАДКА GASKET |
6 | discontinued |
| 4 | 8087391 |
ВИНТ SCREW |
12 | discontinued |
| 5 | 828292 |
ПРОКЛАДКА GASKET |
3 | |
| 6 | 815633046 |
ВОДОМЕТНЫЙ (0.046) Idle Air Vent (TOP)(135)(PORT) WMV-15A) JET (.046) Idle Air Vent (TOP)(135)(PORT) WMV-15A) |
1 | |
| 6 | 810742 |
ВОДОМЕТНЫЙ (0.044) Idle Air Vent (CENTER)(135)(PORT)(WMV-15A) JET (.044) Idle Air Vent (CENTER)(135)(PORT)(WMV-15A) |
1 | discontinued |
| 6 | 815633054 |
ВОДОМЕТНЫЙ (0.054) Idle Air Vent (BOTTOM)(135)(PORT)(WMV-15A) JET (.054) Idle Air Vent (BOTTOM)(135)(PORT)(WMV-15A) |
1 | |
| 6 | 7570 |
ВОДОМЕТНЫЙ 0.040 Idle Air Vent (TOP/CENTER)(135) (PORT)(WMV-15) JET .040 Idle Air Vent (TOP/CENTER)(135) (PORT)(WMV-15) |
2 | discontinued |
| 6 | 815633048 |
ВОДОМЕТНЫЙ (0.048) Idle Air Vent (BOTTOM)(135)(PORT)(WMV-15) JET (.048) Idle Air Vent (BOTTOM)(135)(PORT)(WMV-15) |
1 | discontinued |
| 6 | 810742 |
ВОДОМЕТНЫЙ (0.044) Idle Air Vent (TOP/CENTER)(140/150/XR6/MAGNUM III)(PORT) JET (.044) Idle Air Vent (TOP/CENTER)(140/150/XR6/MAGNUM III)(PORT) |
2 | discontinued |
| 6 | 815633048 |
ВОДОМЕТНЫЙ (0.048) Idle Air Vent (BOTTOM)(140/150/XR6/MAGNUM III)(PORT) JET (.048) Idle Air Vent (BOTTOM)(140/150/XR6/MAGNUM III)(PORT) |
1 | discontinued |
| 6 | 815633038 |
ВОДОМЕТНЫЙ (0.038) Idle Air Vent (TOP)(200)(PORT) JET (.038) Idle Air Vent (TOP)(200)(PORT) |
1 | |
| 6 | 815633028 |
ВОДОМЕТНЫЙ (0.028) Idle Air Vent (CENTER)(200)(PORT) JET (.028) Idle Air Vent (CENTER)(200)(PORT) |
1 | |
| 6 | 3252 |
ВОДОМЕТНЫЙ (0.032) Idle Air Vent (BOTTOM)(200)(PORT) JET (.032) Idle Air Vent (BOTTOM)(200)(PORT) |
1 | discontinued |
| 7 | 5815 |
ВОДОМЕТНЫЙ (0.086) Bowl Vent (135/200) JET (.086) Bowl Vent (135/200) |
3 | |
| 7 | 3518 |
ВОДОМЕТНЫЙ (0.082) Bowl Vent (140/150/XR6/MAGNUM III) JET (.082) Bowl Vent (140/150/XR6/MAGNUM III) |
3 | |
| 8 | 815633038 |
ВОДОМЕТНЫЙ (0.038) Idle Air Vent (TOP)(135)(STBD)(WMV-15A) JET (.038) Idle Air Vent (TOP)(135)(STBD)(WMV-15A) |
1 | |
| 8 | 3026 |
ВОДОМЕТНЫЙ (0.036) Idle Air Vent (TOP)(135)(STBD)(WMV-15) JET (.036) Idle Air Vent (TOP)(135)(STBD)(WMV-15) |
1 | |
| 8 | 810741 |
ВОДОМЕТНЫЙ (0.030) Idle Air Vent (CENTER)(135)(STBD)(WMV-15/15A) JET (.030) Idle Air Vent (CENTER)(135)(STBD)(WMV-15/15A) |
1 | discontinued |
| 8 | 810742 |
ВОДОМЕТНЫЙ (0.044) Idle Air Vent (BOTTOM)(135)(STBD)(WMV-15A) JET (.044) Idle Air Vent (BOTTOM)(135)(STBD)(WMV-15A) |
1 | discontinued |
| 8 | 815633038 |
ВОДОМЕТНЫЙ (0.038) Idle Air Vent (BOTTOM)(135)(STBD)(WMV-15) JET (.038) Idle Air Vent (BOTTOM)(135)(STBD)(WMV-15) |
1 | |
| 8 | 810742 |
ВОДОМЕТНЫЙ (0.044) Idle Air Vent (STBD)(140/150/XR6/MAGNUM III) JET (.044) Idle Air Vent (STBD)(140/150/XR6/MAGNUM III) |
3 | discontinued |
| 8 | 815633038 |
ВОДОМЕТНЫЙ (0.038) Idle Air Vent (TOP)(STBD)(200) JET (.038) Idle Air Vent (TOP)(STBD)(200) |
1 | |
| 8 | 815633028 |
ВОДОМЕТНЫЙ (0.028) Idle Air Vent (CENTER/BOTTOM)(STBD)(200) JET (.028) Idle Air Vent (CENTER/BOTTOM)(STBD)(200) |
2 | |
| 9 | 810779 |
ПРОБКА Limiter CAP Limiter |
6 | discontinued |
