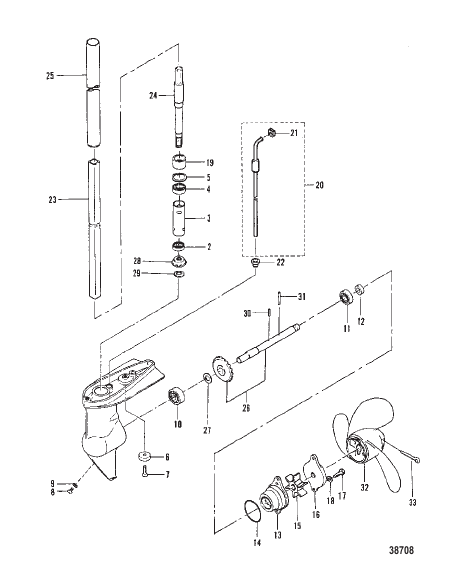

GEAR HOUSING ASSEMBLY COMPLETE
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9158 |
КАРТЕР РЕДУКТОРА В СБОРЕ GEAR HOUSING ASSEMBLY |
1 | superseded |
| 10 | 95347 |
ПОДШИПНИК PROPELLER SHAFT BEARING PROPELLER SHAFT |
1 | |
| 11 | 95344 |
ПОДШИПНИК Шарик PROPELLER SHAFT BEARING Ball PROPELLER SHAFT |
1 | |
| 12 | 95348 |
УПЛОТНЕНИЕ Масло PROPELLER SHAFT SEAL Oil PROPELLER SHAFT |
1 | |
| 13 | 95287 |
НАСОС Вода PUMP Water |
1 | superseded |
| 14 | 95288 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER PUMP O-RING WATER PUMP |
1 | |
| 15 | 95289 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 16 | 95272 |
КРЫШКА GEAR HOUSING COVER GEAR HOUSING |
1 | superseded |
| 17 | 95302 |
ВИНТ COVER SCREW COVER |
2 | |
| 18 | 95349 |
ШАЙБА COVER SCREW WASHER COVER SCREW |
2 | superseded |
| 19 | 95350 |
УПЛОТНЕНИЕ Масло DRIVESHAFT SEAL Oil DRIVESHAFT |
1 | |
| 2 | 95342 |
ПОДШИПНИК Шарик DRIVESHAFT (LOWER) BEARING Ball DRIVESHAFT (LOWER) |
1 | |
| 20 | 95359 |
ТРУБА В СБОРЕ Вода TUBE ASSEMBLY Water |
1 | |
| 21 | 95360 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО WATER TUBE (UPPER) GROMMET WATER TUBE (UPPER) |
1 | superseded |
| 22 | 95361 |
ВТУЛКА WATERTUBE (LOWER) BUSHING WATERTUBE (LOWER) |
1 | |
| 23 | 95290 |
ВЕДУЩИЙ ВАЛ (UPPER) DRIVESHAFT (UPPER) |
1 | |
| 24 | 95369 |
ВЕДУЩИЙ ВАЛ (LOWER) DRIVESHAFT (LOWER) |
1 | discontinued |
| 25 | 95277 |
ТРУБА DRIVESHAFT PIPE DRIVESHAFT |
1 | |
| 26 | 95291 |
ВАЛ ГРЕБНОГО ВИНТА (WITH BEVEL GEAR) PROPELLER SHAFT (WITH BEVEL GEAR) |
1 | superseded |
| 27 | 95292 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА BEVEL GEAR SHIM BEVEL GEAR |
AR | superseded |
| 28 | 95293 |
ПЕРЕДАЧА Шестерня GEAR Pinion |
1 | discontinued |
| 29 | 95370 |
КОЛЬЦО Защелка PINION GEAR RING Snap PINION GEAR |
1 | superseded |
| 3 | 95343 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 30 | 95371 |
КЛЮЧ IMPELLER KEY IMPELLER |
1 | |
| 31 | 95372 |
СРЕЗНОЙ ШТИФТ PROPELLER SHEAR PIN PROPELLER |
1 | superseded |
| 32 | 952941 |
ГРЕБНОЙ ВИНТ PROPELLER |
1 | superseded |
| 33 | 95295 |
ШПЛИНТ PROPELLER COTTER PIN PROPELLER |
1 | |
| 4 | 95344 |
ПОДШИПНИК Шарик DRIVESHAFT (UPPER) BEARING Ball DRIVESHAFT (UPPER) |
1 | |
| 5 | 95345 |
КОЛЬЦО Защелка BALL BEARING RING Snap BALL BEARING |
1 | |
| 6 | 95271 |
АНОД ANODE |
1 | superseded |
| 7 | 95346 |
ВИНТ ANODE SCREW ANODE |
1 | superseded |
| 8 | 95368 |
ПРОБКА OIL PLUG OIL |
2 | superseded |
| 9 | 95220 |
ПРОКЛАДКА OIL PLUG GASKET OIL PLUG |
2 | discontinued |
